AJAX DoorProtect G3 Fibra White | Advanced Detection Sensors | Adjustable Tilt & Shock Sensitivity | by Dicker Data

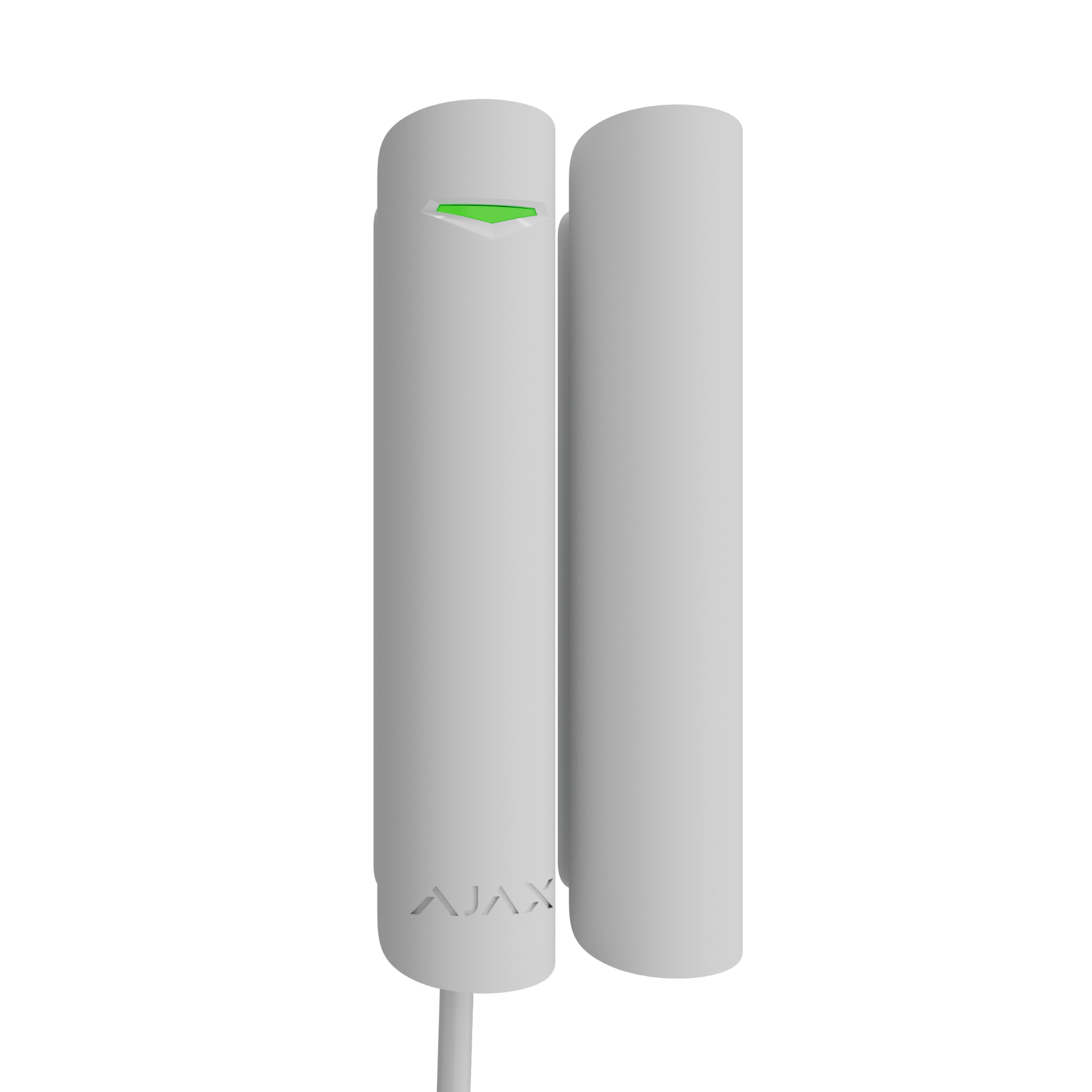

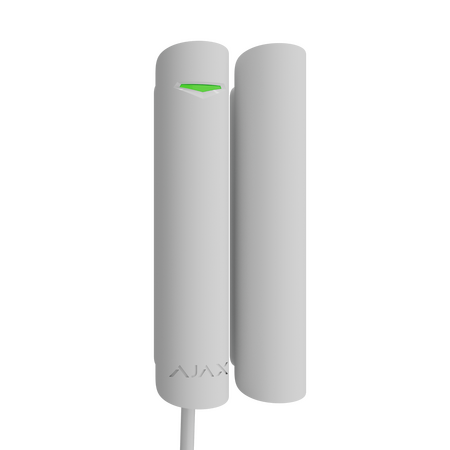

AJAX DoorProtect G3 Fibra White is a cutting-edge door sensor featuring advanced detection with dual reed switches, an accelerometer, and a magnetic masking sensor. Perfect for residential and commercial security systems, it offers adjustable shock sensitivity and tilt activation thresholds, ensuring reliable intrusion detection and protection against tampering. Ideal for enhancing security in homes and businesses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX DoorProtect G3 Fibra White | Advanced Detection Sensors | Adjustable Tilt & Shock Sensitivity | by Dicker Data
Brand: Dicker Data
SKU: 61340.177.WH2
Alternatively Known As: DoorProtect G3 Fibra Door Sensor, AJAX Door Sensor, Fibra Door Contact Sensor
Technical Specifications
- Sensing element: 2 x reed switch, 1 x accelerometer, 1 x magnetic masking sensor
- Magnet distance: Small magnet up to 1 cm, Large magnet up to 2 cm (left or right side)
- Sensitivity: Protection against reed switch chattering, ignores vibrations lasting up to 0.15 s
- Additional input: Wired input NC contact type
- Shock sensor sensitivity: 3 levels, option to ignore single shock
- Tilt sensor activation threshold: Adjustable from 5° to 25°
- Sabotage protection: Magnetic masking sensor detects fraudulent magnet attempts
- Power supply: Fibra line power supply (5−30 V⎓, up to 35 mW)
- Line connection: 4-core cable
- Fibra line length: Up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range: -10 °C to +40 °C
- Operating humidity: Up to 75%
- Dimensions (H x L x W): 21mm x 19.2mm x 102mm
- Weight: 0.062 kg

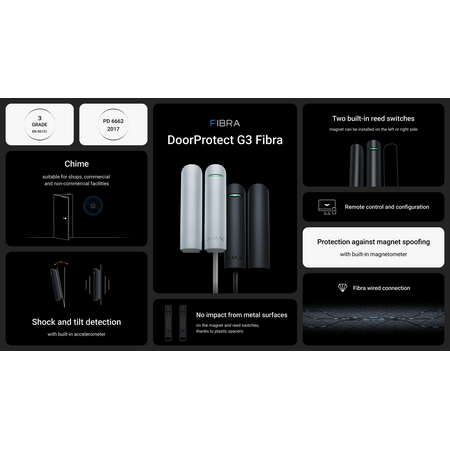

Key Features
- 2 x reed switch, 1 x accelerometer, 1 x magnetic masking sensor for advanced detection
- Protection against reed switch chattering and vibration interference
- Magnetic masking sensor detects fraudulent magnet attempts
- Shock sensor with 3 sensitivity levels and option to ignore single shocks
- Tilt sensor activation threshold adjustable from 5° to 25°
- Supports wired input NC contact type
- Fibra line power supply (5−30 V⎓, up to 35 mW)
- 4-core cable line connection with up to 2,000 meters Fibra line length using U/UTP cat.5 twisted pair
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration and functionality.
Applications

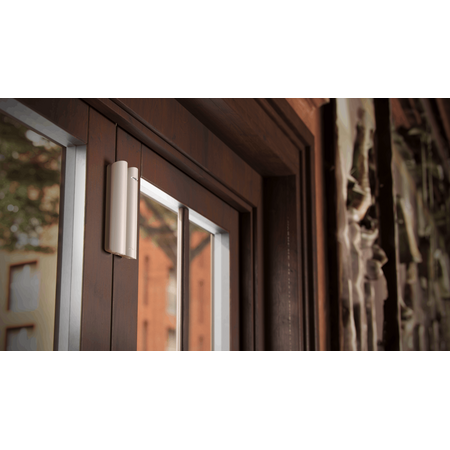

- Security systems for residential and commercial doors
- Intrusion detection in homes, offices, and retail environments
- Integration with AJAX security systems for enhanced protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient Fibra line power supply
- Durable design reduces waste and replacement frequency
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
AJAX DOORPROTECT G3 FIBRA WHITE 2YR is available for immediate purchase, ideal for enhancing security in residential and commercial door applications.
