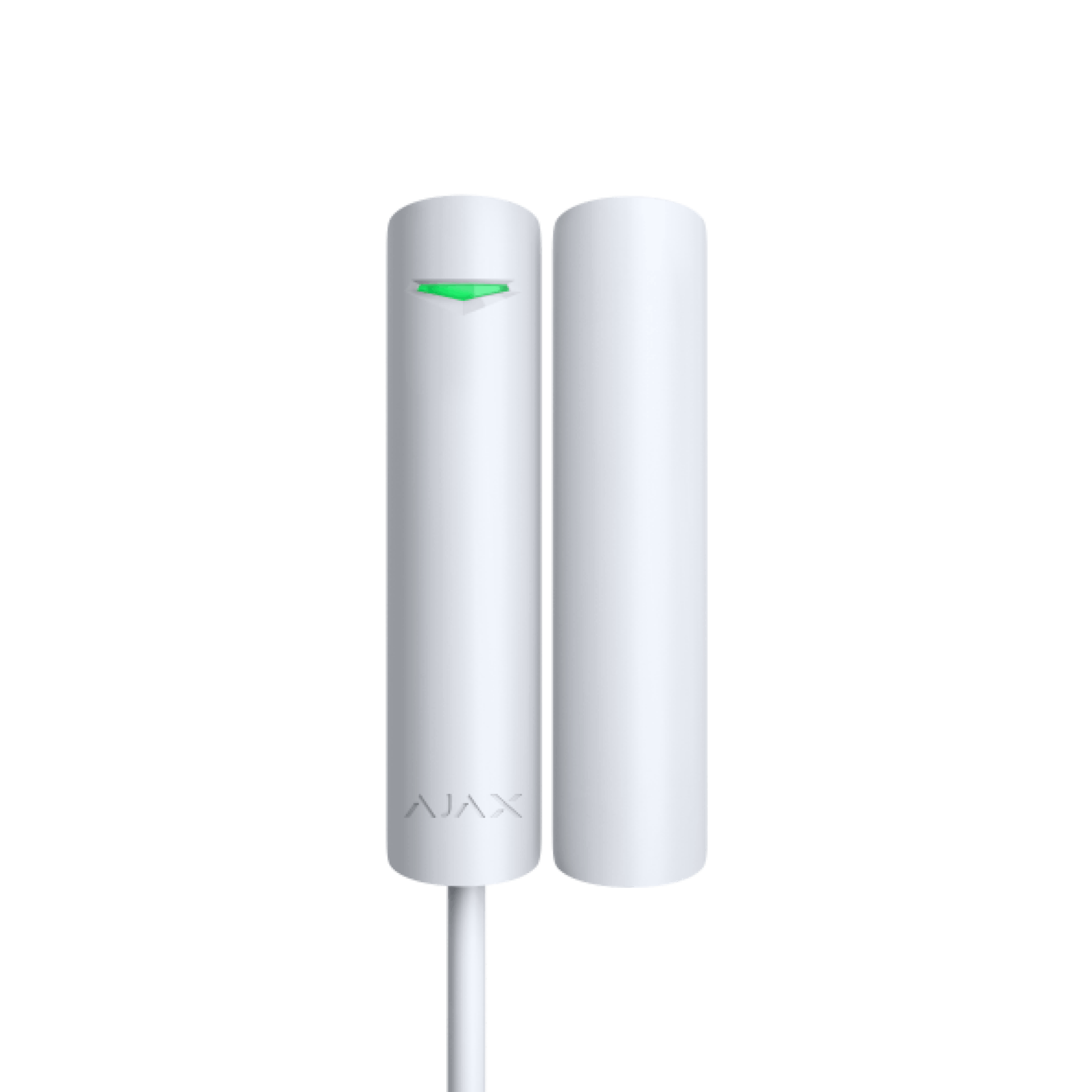

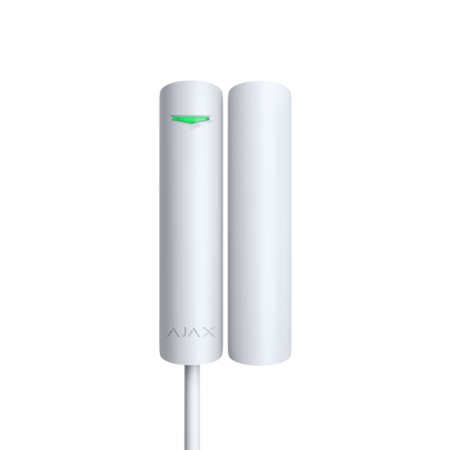

AJAX DoorProtect Plus Fibra White | Dual Reed Switch & Accelerometer | IP50 Rated | by AJAX
AJAX DoorProtect Plus Fibra White is a cutting-edge wired door sensor featuring dual high-end reed switches and a built-in accelerometer for reliable intrusion detection. Ideal for securing doors and windows in both residential and commercial settings, it offers adjustable shock and tilt sensitivity, ensuring optimal performance. With a robust IP50 rating, this device is designed for long-lasting security and peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX DoorProtect Plus Fibra White | Dual Reed Switch & Accelerometer | IP50 Rated | by AJAX
Brand: AJAX
SKU: 30854.13.WH1
Alternatively Known As: Wired Door Sensor, Window Security Detector, Fibra DoorProtect, Ajax Door Sensor, Intrusion Detector for Doors and Windows
Technical Specifications
- Sensing elements: 2 x reed switch, 1 x accelerometer
- Magnet distance: Small magnet up to 1 cm, Large magnet up to 2 cm (left or right side)
- Sensitivity: Protection against reed switch chattering, ignores vibrations lasting up to 0.15 seconds
- Additional input: Wired input NC contact type
- Shock sensor sensitivity: 3 levels with option to ignore single shock
- Tilt sensor activation threshold: Adjustable from 5° to 25°
- Power supply: Fibra line power supply (5−30 V DC, up to 24 mW)
- Line connection: 4-core cable
- Fibra line length: Up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: Up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 21mm x 19mm x 90mm
- Weight: 0.054 kg
Key Features
- Equipped with two high-end reed switches for reliable opening detection
- Built-in accelerometer detects shock and tilt with adjustable sensitivity
- Protection against reed switch chattering and vibration false alarms
- Supports two magnet sizes for flexible mounting options
- Can detect window tilt angles from 5° to 25° to protect airing windows
- Wired input for connecting third-party NC detectors
- Chime feature allows use as a doorbell with customizable sound signals
- Secure two-way communication via Fibra proprietary protocol with encryption and device authentication
- Supports up to 2,000 meters Fibra line length using U/UTP cat.5 cable
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper wiring and integration with existing security systems.
Applications

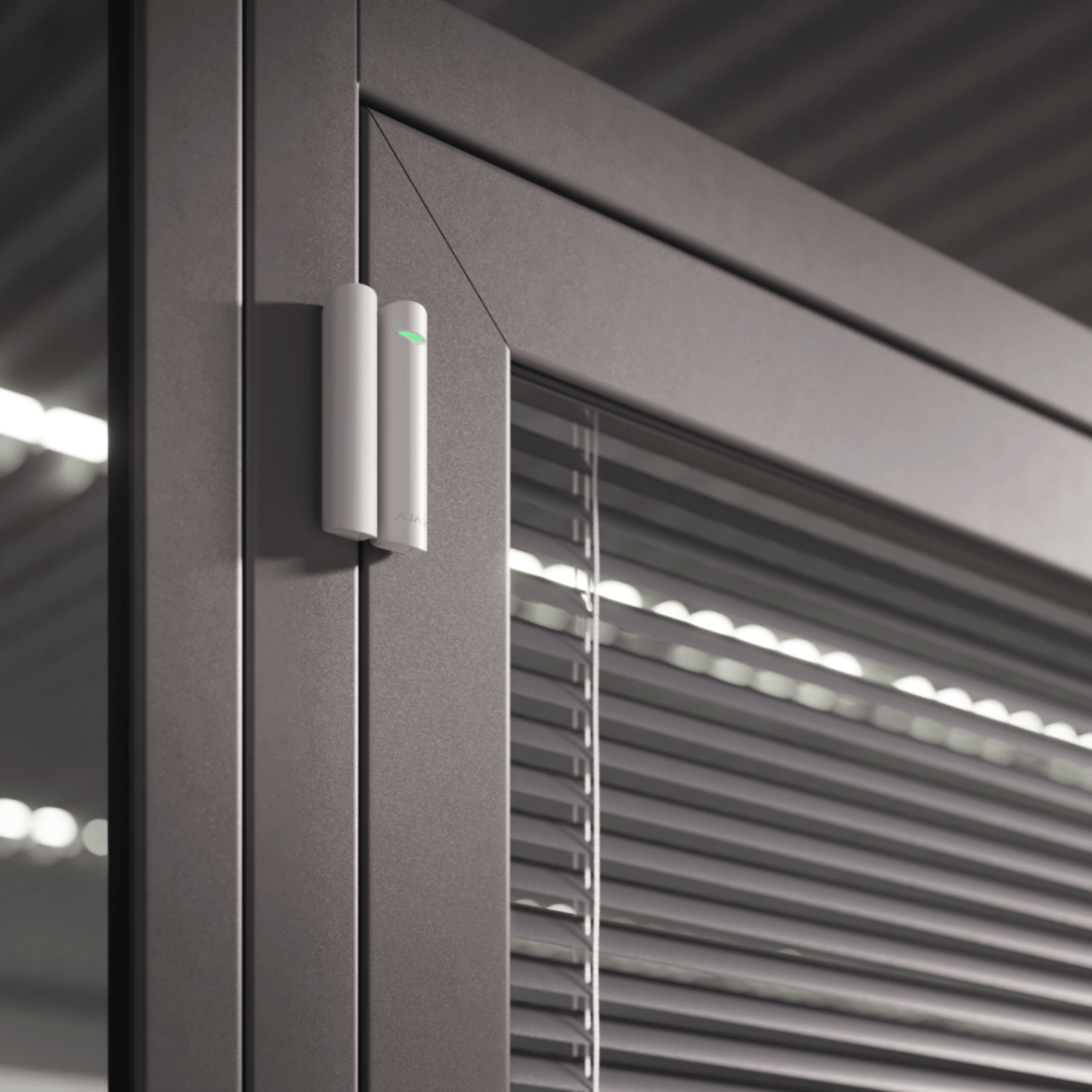

- Security for doors, windows, skylights, and vaults in residential and commercial buildings
- Intrusion and burglary detection systems
- Integration with third-party wired NC detectors for enhanced security
- Use as a doorbell notification system in retail or shop environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wired technology reduces electronic waste compared to battery-powered devices
- Durable components ensure long service life, minimizing replacement frequency
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX DoorProtect Plus Fibra White is available for immediate purchase, ideal for enhancing security in residential and commercial properties.
