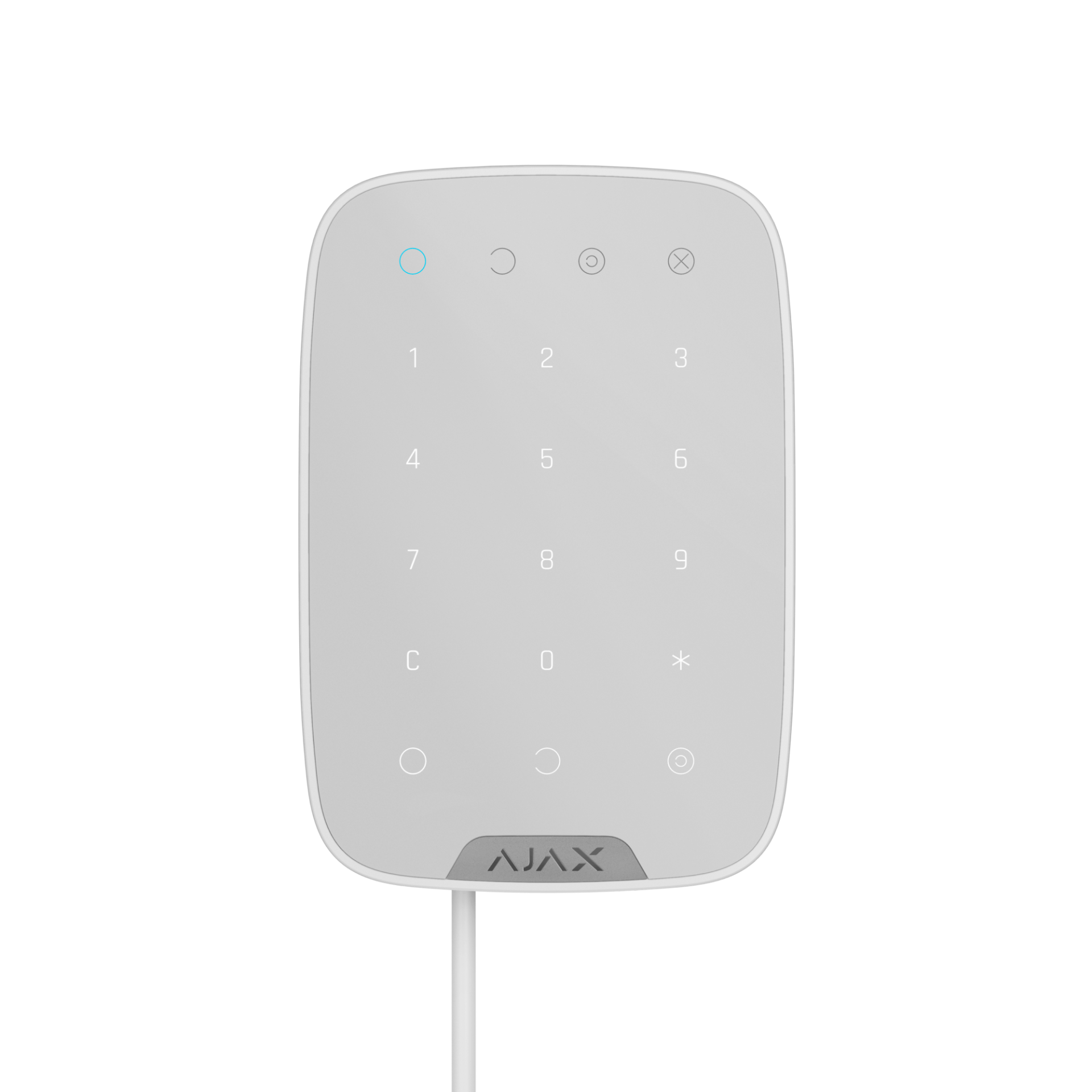

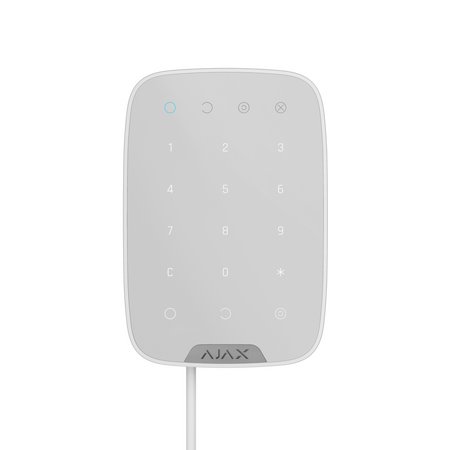

AJAX Fibra Keypad White | Capacitive Touch Sensor | Up to 100 Codes | IP50 Protection | by Dicker Data
The AJAX Fibra Keypad White features a capacitive touch sensor and supports up to 100 personal and duress codes, making it ideal for secure access control in residential and commercial buildings. With built-in protection against code guessing and a robust IP50 rating, this keypad ensures reliable performance in various environments. Perfect for integration with AJAX security systems, it offers a sleek design and efficient power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Fibra Keypad White | Capacitive Touch Sensor | Up to 100 Codes | IP50 Protection | by Dicker Data
Brand: Dicker Data
SKU: 30864.12.WH1
Alternatively Known As: AJAX Fibra Keypad, AJAX Capacitive Touch Keypad, AJAX Security Keypad White
Technical Specifications
- Sensor Type: Capacitive touch
- Maximum Codes: Up to 100 personal codes, one code per user
- Keypad Codes: One code per KeyPad
- Duress Codes: Up to 100 personal codes, one code per user
- Keypad Duress Codes: One code per KeyPad
- Sabotage Protection: Locks keypad for 3–180 minutes after 3 incorrect code entries within 1 minute
- Power Supply: Fibra line power supply (7−27 V⎓, up to 230 mW)
- Line Connection: 4-core cable
- Fibra Line Length: Up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating Temperature Range: -10°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP50, IK04
- Dimensions (H x L x W): 103mm x 19mm x 150mm
- Weight: 0.181 kg
Key Features
- Capacitive touch sensor
- Protection against code guessing with keypad lockout for 3–180 minutes after 3 incorrect attempts within 1 minute
- Supports up to 100 personal codes and duress codes, one code per user
- Powered by Fibra line power supply (7−27 V⎓, up to 230 mW)
- Line connection via 4-core cable
- Fibra line length support up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range from -10°C to +40°C
- Operating humidity up to 75%
- Protection class IP50, IK04
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper integration and functionality within the AJAX security system.
Applications
- Security systems requiring capacitive touch keypads
- Access control for residential and commercial buildings
- Integration with AJAX security systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient Fibra line power supply
- Durable design reduces waste and replacement frequency
Warranty Information
24 months warranty.
Available Now
The AJAX KEYPAD FIBRA WHITE 2YR is available for immediate purchase, ideal for enhancing security in residential and commercial applications.
