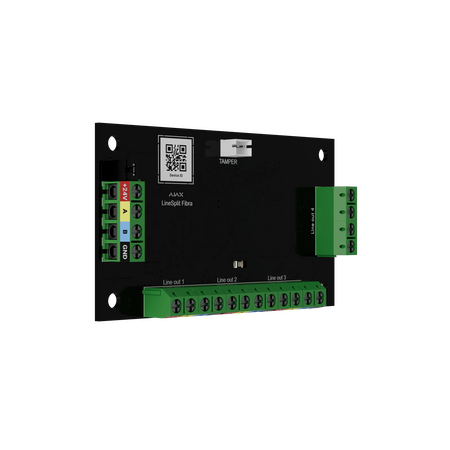

AJAX Fibra Line Splitter Module | Splits One Line to Four Outputs | Extends Up to 2000 Meters | by AJAX
The AJAX Fibra Line Splitter Module is designed to split one Fibra line into four output lines, making it ideal for security system installations that require line splitting and extension. With the ability to extend each output line up to 2,000 meters using U/UTP cat.5 twisted pair cable, this module ensures fast and secure two-way wired communication. Perfect for both commercial and residential security setups, it supports remote configuration and testing via the Ajax app.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of input lines: 1
- Number of output lines: 4 (dependent on device energy consumption)
- Power supply: Fibra line power supply (6−30 V⎓, up to 25 mW)
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range: from −10 °C to +40 °C
- Operating humidity: up to 75%
- Dimensions (H x L x W): 15mm x 50mm x 90mm
- Weight: 0.1 kg
Key Features
- Splits one Fibra line into four output lines
- Extends each output line up to 2,000 meters using U/UTP cat.5 twisted pair cable
- Compatible with Ajax smart devices and controlled via app
- Enables remote configuration, testing, and event notifications
- Supports fast and secure two-way wired communication with Fibra protocol
Professional Installation Requirements
- Installation should be performed by a qualified security system technician or electrician familiar with Ajax Fibra systems to ensure proper setup and compliance with safety standards.
Applications
- Security system installations requiring line splitting and extension
- Upgrading or expanding Ajax Fibra wired security systems
- Commercial and residential security setups
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces need for rewiring and hardware replacement, minimizing electronic waste
- Supports efficient use of existing wiring infrastructure
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX LineSplit Fibra 2YR module by AJAX is available for immediate purchase, ideal for enhancing and expanding wired security systems.
