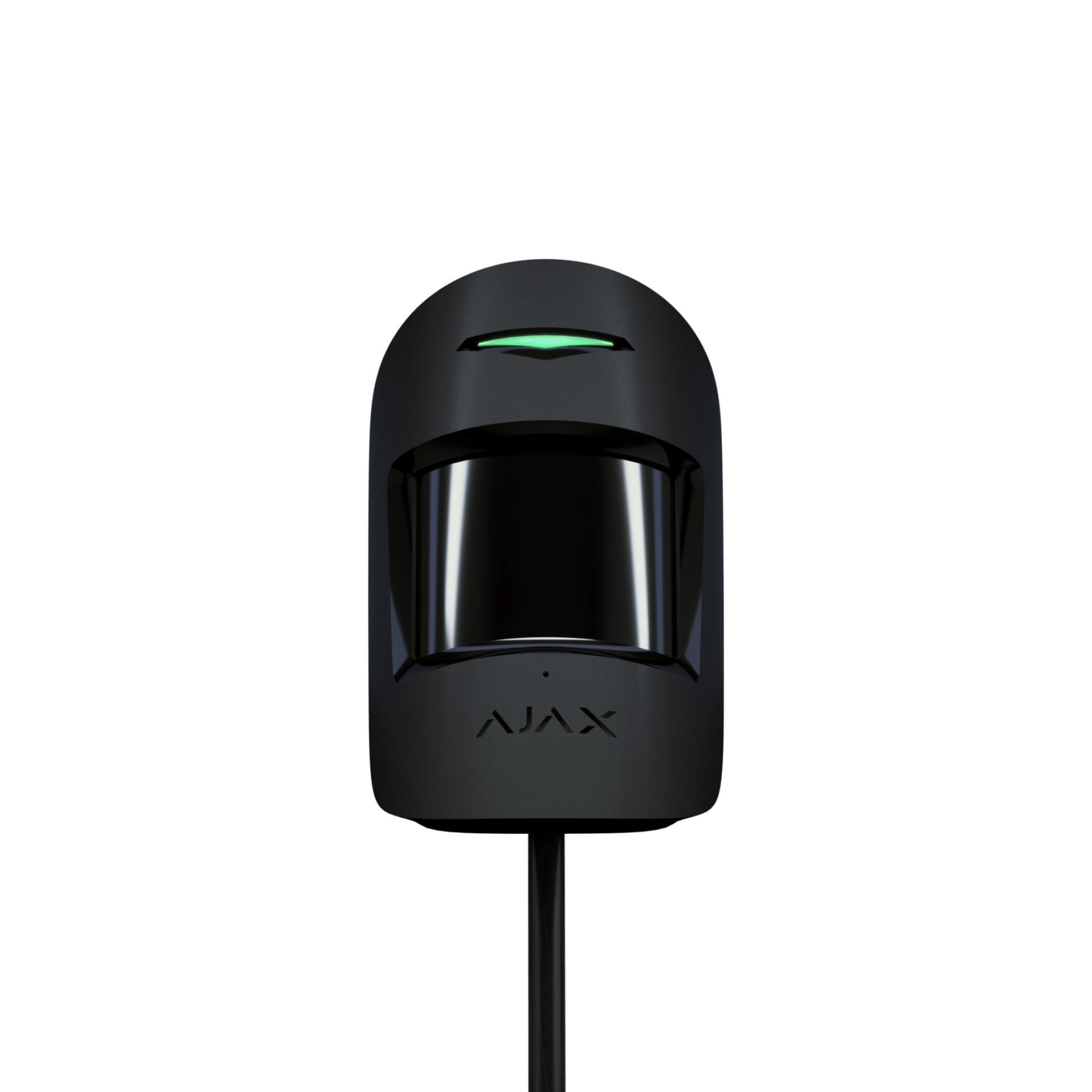

AJAX Fibra Motion Detector | PIR & Microphone | 12m Detection | IP50 Rated | by AJAX
The AJAX Fibra Motion Detector combines a PIR sensor and electret microphone for dual detection, ensuring comprehensive security coverage. With a motion detection range of up to 12 meters and a glass break detection distance of 9 meters, it's perfect for residential, commercial, and industrial applications. Designed for pet immunity and equipped with SmartDetect technology to minimize false alarms, this device operates effectively in temperatures from -10 °C to +40 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Fibra Motion Detector | PIR & Microphone | 12m Detection | IP50 Rated | by AJAX
Brand: AJAX
SKU: 44390.06.BL1
Alternatively Known As: AJAX Fibra Motion Detector, AJAX Glass Break Sensor, AJAX PIR and Microphone Security Detector

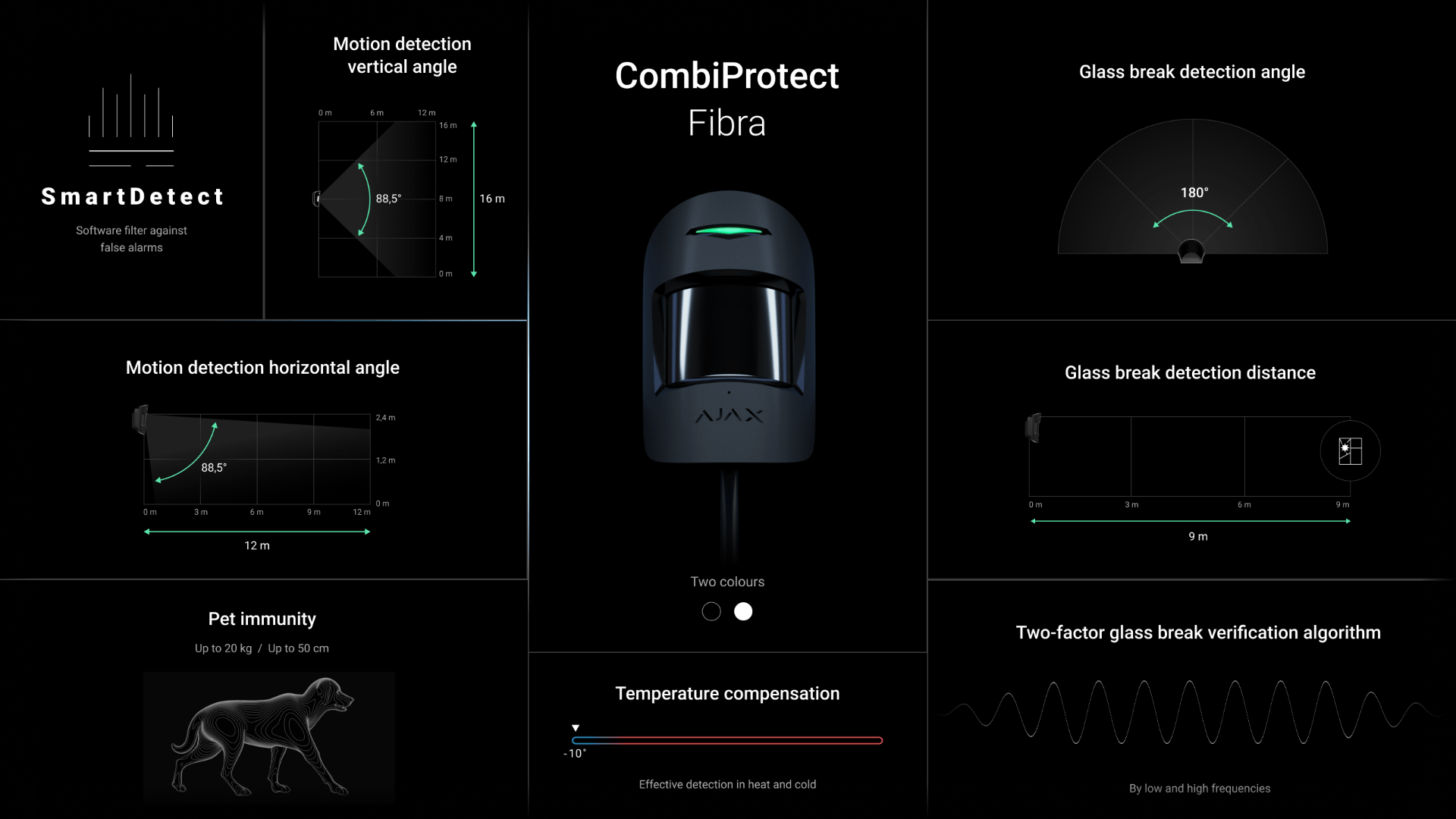

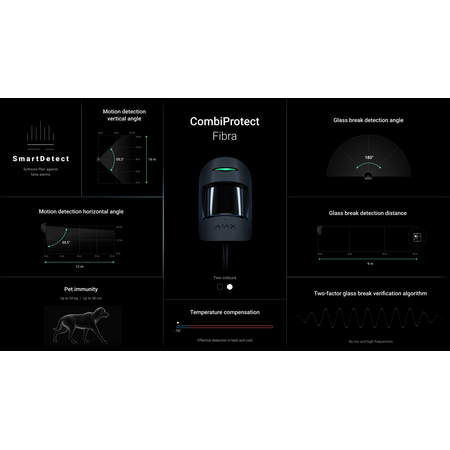

Technical Specifications
- Sensitive element: 1 x PIR sensor, 1 x electret microphone
- Motion detection distance: up to 12 m
- Motion detection angle: horizontal 88.5°
- Motion detection speed: 0.3 to 2 m/s
- PIR sensitivity: 3 levels
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention PIR: SmartDetect Software algorithm
- Temperature compensation: effective from −10 °C to +40 °C
- Glass break detection distance: 0.3 to 9 m, horizontal 180°
- Glass break sensitivity: 3 levels
- False alarm prevention glass break: DualTone
- Minimum glass size: 400 × 400 mm
- Type of glass and thickness: standard pane 4 mm, insulated glass 4 mm, tempered glass 6 mm
- Power supply: Fibra line power supply (5−30 V⎓, up to 26 mW)
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 50mm x 110mm x 65mm
- Weight: 0.092 kg
Key Features
- 1 x PIR sensor and 1 x electret microphone for dual detection
- Motion detection up to 12 meters with 88.5° horizontal angle
- Pet immunity for animals up to 20 kg and 50 cm height
- Glass break detection up to 9 meters with 180° horizontal coverage
- SmartDetect software algorithm to reduce false alarms
- DualTone technology for false alarm prevention in glass break detection
- Effective operation in temperatures from −10 °C to +40 °C
- Fibra line power supply with low power consumption
Professional Installation Requirements
- Installation should be performed by a qualified security system technician to ensure proper setup and integration with the Fibra line power supply and communication cables.
Applications
- Security systems for residential properties
- Commercial building intrusion detection
- Industrial facility perimeter protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption design reduces energy usage
- Durable construction minimizes waste and replacement frequency
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX COMBIPROTECT FIBRA BLACK 2YR is available for immediate purchase, ideal for enhancing security in residential, commercial, and industrial applications.
