AJAX GlassProtect Fibra White | Electret Microphone | 180° Coverage | DualTone Technology | by AJAX
AJAX GlassProtect Fibra White is a cutting-edge glass break detector featuring an electret microphone for precise detection and a detection range of 0.3 to 9 meters with 180° horizontal coverage. Ideal for enhancing security in residential and commercial properties, it includes three sensitivity levels and DualTone technology to prevent false alarms, ensuring reliable performance in various glass types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX GlassProtect Fibra White | Electret Microphone | 180° Coverage | DualTone Technology | by AJAX
Brand: AJAX
SKU: 30856.05.WH1
Alternatively Known As: Glass Break Detector, Glass Break Sensor, AJAX Glass Protect Fibra, Electret Microphone Glass Break Sensor
Technical Specifications
- Sensitive element: Electret microphone

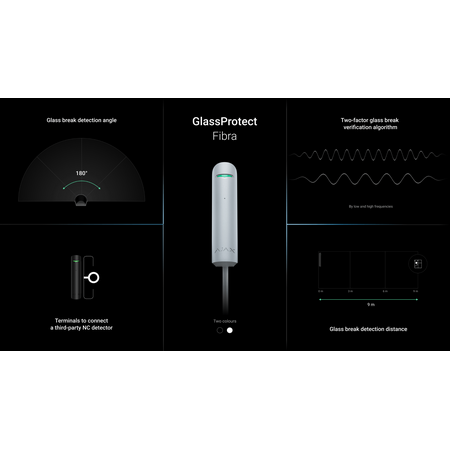

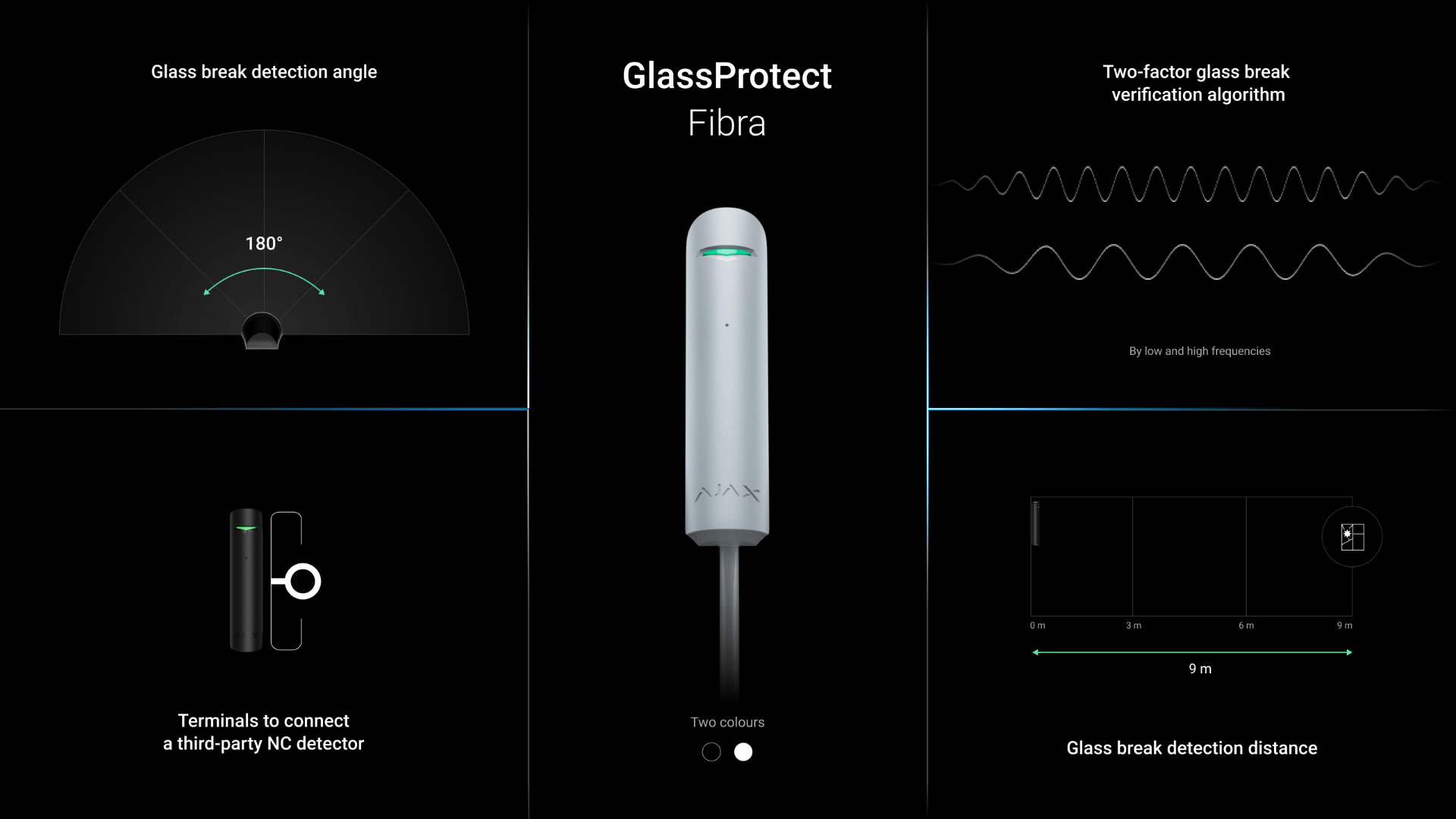

- Detection distance: 0.3 to 9 m, horizontal coverage 180°
- Sensitivity: 3 levels
- False alarm prevention: DualTone technology
- Minimum glass size: 400 × 400 mm
- Compatible glass types and thickness: Standard pane 4 mm, insulated glass 4 mm, tempered glass 6 mm
- Additional input: Wired NC contact type
- Power supply: Fibra line 5−30 V⎓, up to 25 mW
- Line connection: 4-core cable
- Fibra line length: Up to 2,000 meters with U/UTP cat.5 twisted pair
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: Up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 21mm x 19mm x 90mm
- Weight: 0.054 kg
Key Features
- Electret microphone sensitive element for accurate glass break detection
- Detection distance from 0.3 to 9 meters with 180° horizontal coverage
- Three sensitivity levels with DualTone false alarm prevention
- Compatible with standard, insulated, and tempered glass types
- Wired NC contact type input for additional sensor integration
- Fibra line power supply with low power consumption (5−30 V⎓, up to 25 mW)
- Supports up to 2,000 meters Fibra line length using U/UTP cat.5 twisted pair cable
- Operating temperature range from −10 °C to +40 °C
- Protection class IP50
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper integration and optimal performance.
Applications
- Security systems for residential and commercial buildings
- Glass break detection for windows and glass doors
- Integration with AJAX security systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage and environmental impact
- Durable design minimizes waste and replacement frequency
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX GLASSPROTECT FIBRA WHITE 2YR glass break detector is available for immediate purchase, ideal for enhancing security in residential and commercial properties.
