AJAX Homesiren Fibra Black | Acoustic & LED Indication | 81-105 dB Volume | by Dicker Data

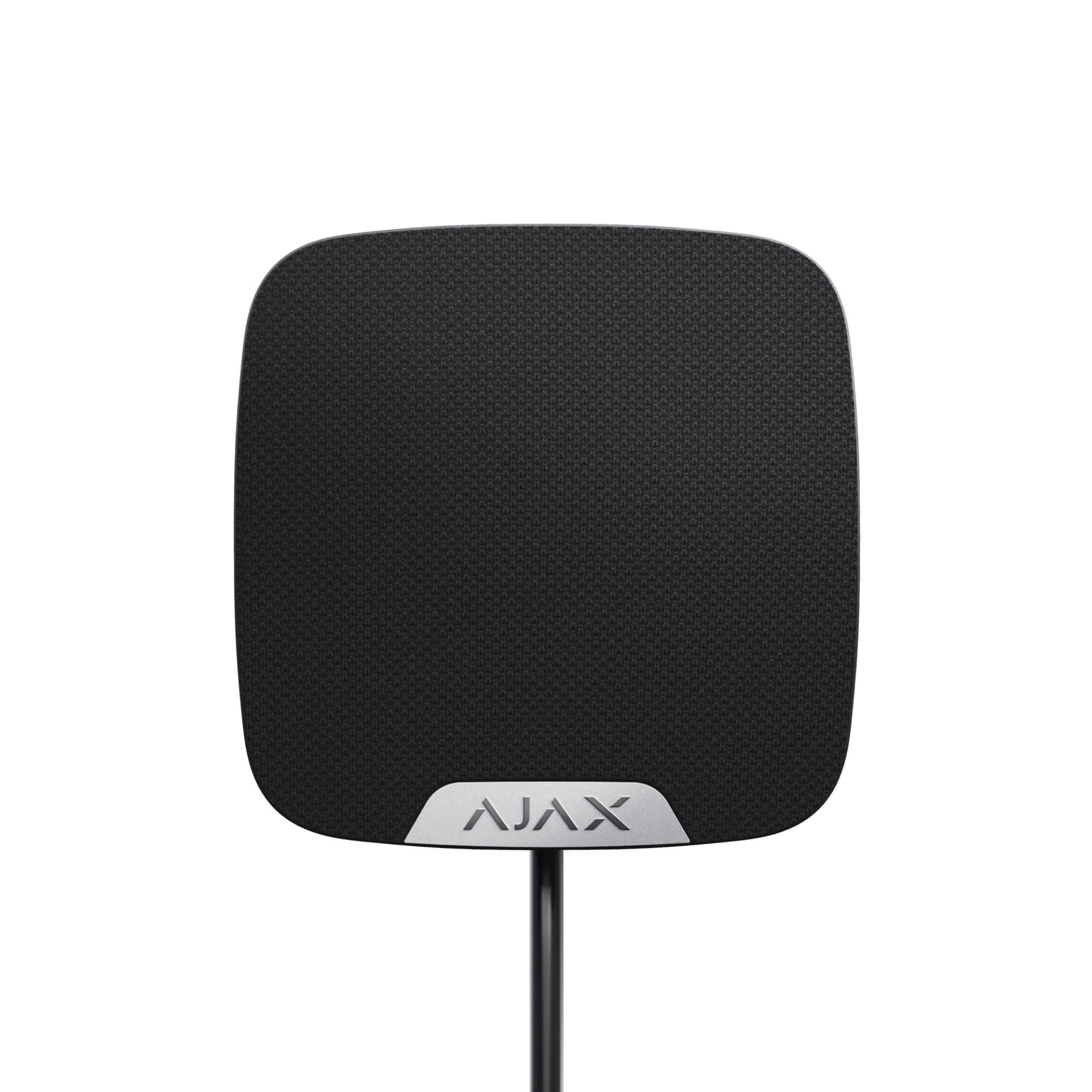

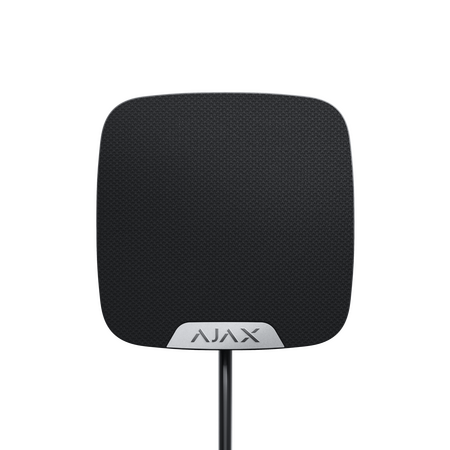

AJAX Homesiren Fibra Black is an acoustic alarm with LED indication, perfect for residential and commercial security systems. With an adjustable alarm volume ranging from 81 to 105 dB and a siren sound frequency of 3.4 ± 0.5 kHz, it ensures effective alerting. Designed for professional installation, this durable siren operates efficiently on a Fibra line power supply, making it a reliable choice for enhancing security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Homesiren Fibra Black | Acoustic & LED Indication | 81-105 dB Volume | by Dicker Data
Brand: Dicker Data
SKU: 44398.11.BL1
Alternatively Known As: AJAX Fibra Siren, Homesiren Fibra Alarm, Acoustic Alarm Siren
Technical Specifications
- Alarm Type: Acoustic and LED indication
- Alarm Volume: 81 to 105 dB at 1 meter
- Alarm Duration: 3 seconds to 3 minutes
- Siren Sound Frequency: 3.4 ± 0.5 kHz
- Additional LED Connection: 3 V external LED replicates built-in LED
- Power Supply: Fibra line power supply (7−27 V⎓, up to 77 mA)
- Line Connection: 4-core cable
- Fibra Line Length: Up to 2,000 meters with U/UTP cat.5 twisted pair
- Operating Temperature Range: -10°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP30
- Dimensions (H x L x W): 33mm x 90.5mm x 90.5mm
- Weight: 0.084 kg
Key Features
- Acoustic and LED indication alarm type
- Alarm volume ranges from 81 to 105 dB at 1 meter
- Alarm duration adjustable from 3 seconds to 3 minutes
- Siren sound frequency of 3.4 ± 0.5 kHz
- External LED connection replicates built-in LED indication
- Powered by Fibra line power supply (7−27 V⎓, up to 77 mA)
- Supports line connection via 4-core cable
- Fibra line length up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range from -10°C to +40°C
- Protection class IP30
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Residential security systems
- Commercial security installations
- Alarm system acoustic indication
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient Fibra line power supply
- Durable design reduces waste and replacement frequency
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX Homesiren Fibra Black is available for immediate purchase, ideal for enhancing security in residential and commercial alarm systems.
