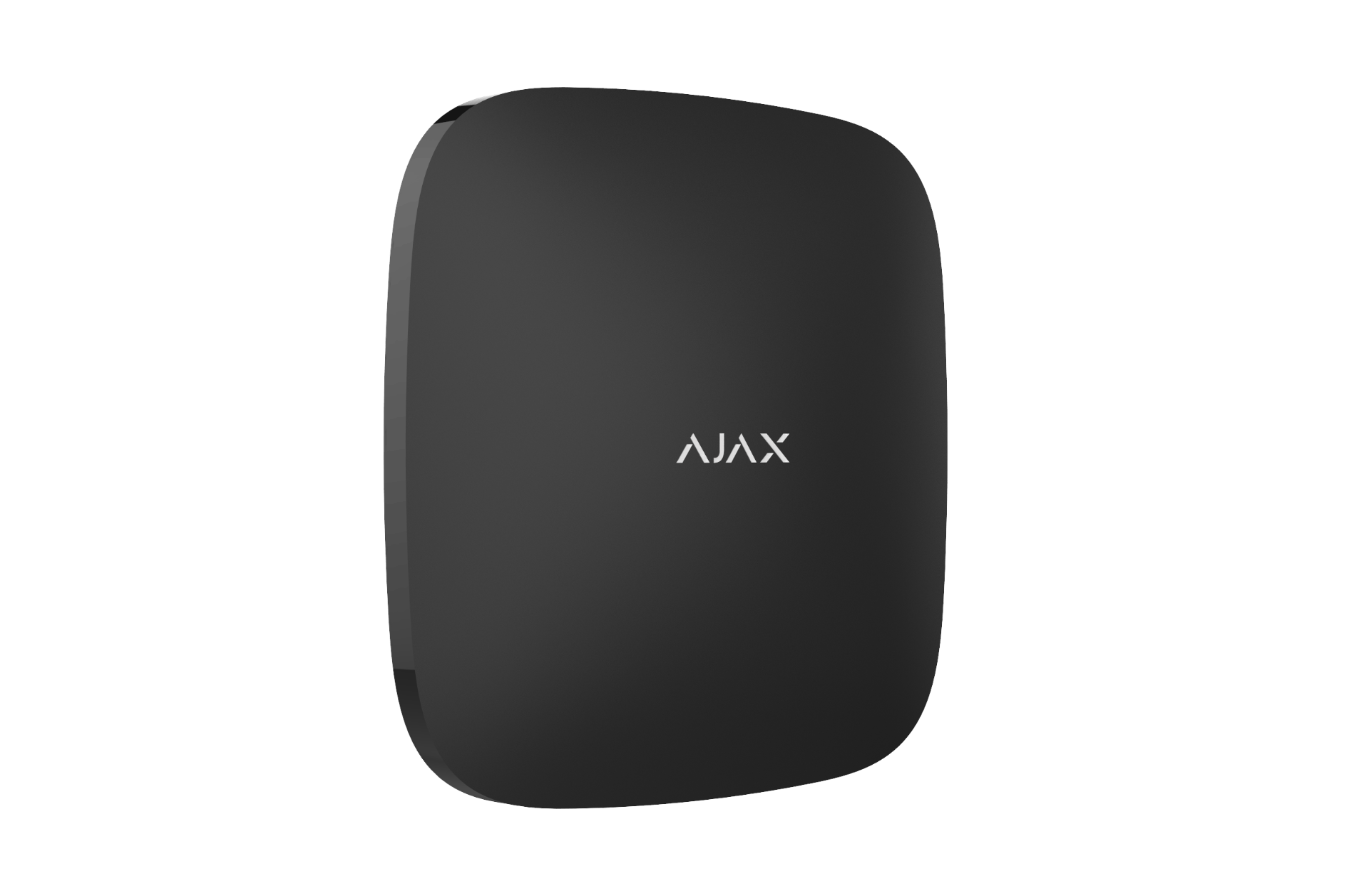

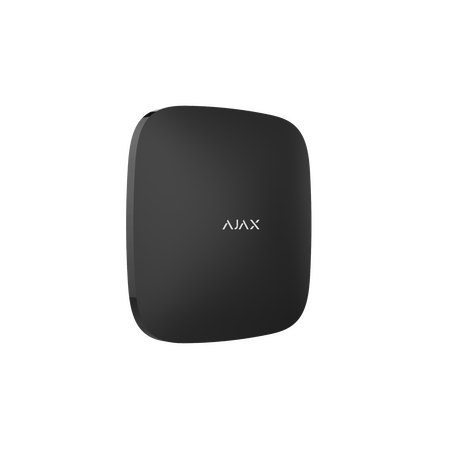

AJAX HUB 2 4G Control Panel | Supports 100 Devices | Dual 4G & Ethernet | IP20 Rated | by AJAX
AJAX HUB 2 4G Control Panel is designed to manage up to 100 wireless Ajax devices, including sirens and keypads, making it ideal for comprehensive home and business security. With dual communication channels and advanced anti-sabotage features, it ensures reliable operation and instant notifications. Perfect for multi-floor and multi-building security management, this control panel offers remote configuration via Ajax apps and operates efficiently in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX HUB 2 4G Control Panel | Supports 100 Devices | Dual 4G & Ethernet | IP20 Rated | by AJAX
Brand: AJAX
SKU: 35991.108.BL3
Alternatively Known As: Ajax Hub 2 Control Panel, Ajax Security Hub 2, Ajax 4G Alarm Hub, Ajax Wireless Security Hub
Technical Specifications
- Capacity: Supports up to 100 wireless Ajax devices including 10 sirens or keypads with built-in sirens and 5 range extenders
- Users: Up to 50
- Automation Scenarios: Up to 32
- Security Groups (Areas): Up to 9
- Rooms: Up to 50
- Wireless Communication: Proprietary two-way communication with advanced anti-sabotage and block encryption featuring a dynamic key
- Communication Channels: Ethernet, Cellular (4G) x 2
- Radio Signal Range: Up to 2000 meters
- Power: 110-240 V~ (Optional add on 6, 12/24V DC board)
- Operating Temperature Range: From −10°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP20
- Dimensions (H x L x W): 36mm x 163mm x 163mm
- Weight: 0.362 kg
Key Features
- Manages up to 100 wireless Ajax devices including sirens, keypads, and range extenders
- Supports up to 50 users and 9 security groups for access and zoning control
- Alarm photo verification within 9 seconds using MotionCam detectors
- Dual communication channels: Ethernet and dual 4G cellular networks with automatic switching
- Radio communication range up to 2000 meters with support for 5 range extenders
- Advanced anti-sabotage features with tamper detection and instant notifications
- Backup battery provides up to 16 hours of operation during power outages
- Remote configuration via Ajax apps
- Operating temperature range from −10°C to +40°C
- Protection class IP20
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper setup and integration with existing security infrastructure.
Applications
- Home security systems
- Business and commercial security
- Multi-floor and multi-building security management
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless communication reduces the need for extensive wiring and associated material waste
- Energy-efficient operation with backup battery to minimize power consumption during outages
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX HUB 2 4G Control Panel Black is available for immediate purchase, ideal for enhancing security in residential and commercial properties.
