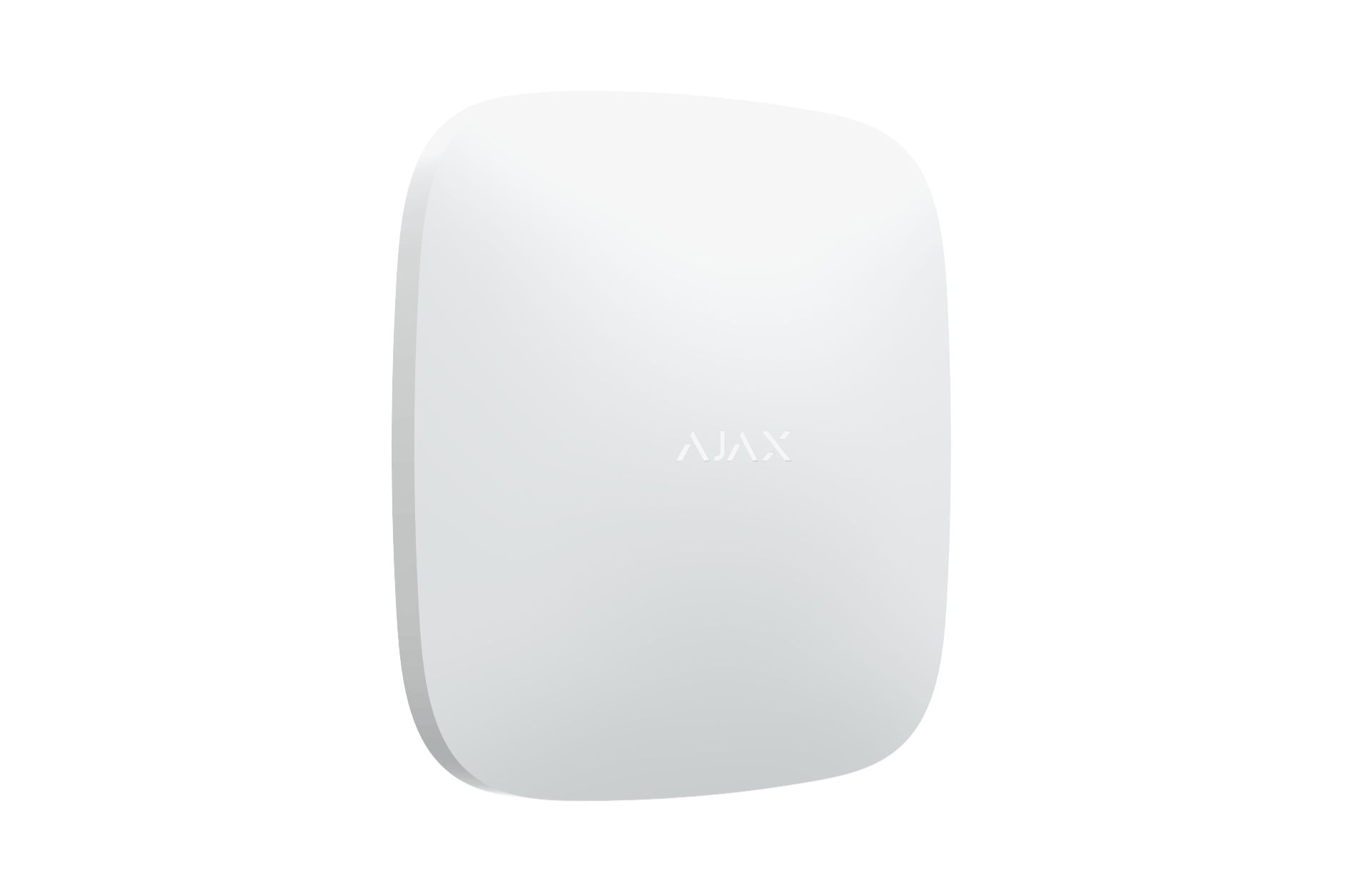

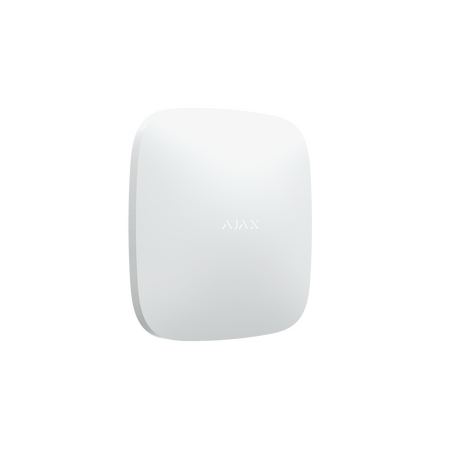

AJAX HUB 2 4G Control Panel | Supports 100 Devices | Photo Verification | Tamper-Resistant Design | by AJAX
AJAX HUB 2 4G Control Panel is designed to manage up to 100 wireless Ajax devices, including sirens and keypads, making it ideal for comprehensive home and business security. With advanced photo verification and tamper-resistant features, it ensures reliable monitoring and instant notifications. Perfect for multi-floor setups, this control panel supports up to 50 users and offers a robust wireless communication range of up to 2000 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX HUB 2 4G Control Panel | Supports 100 Devices | Photo Verification | Tamper-Resistant Design | by AJAX
Brand: AJAX
SKU: 35992.108.WH3
Alternatively Known As: Ajax Hub 2 Control Panel, Ajax Security Hub 2, Ajax 4G Security Hub, Ajax Wireless Security Hub
Technical Specifications
- Capacity: Supports up to 100 wireless Ajax devices including 10 sirens or keypads with built-in siren and 5 range extenders
- Users: Up to 50
- Automation Scenarios: Up to 32
- Security Groups (Areas): Up to 9
- Rooms: Up to 50
- Wireless Communication: Proprietary two-way communication with advanced anti-sabotage and block encryption featuring a dynamic key
- Communication Channels: Ethernet, Cellular (4G) x 2
- Radio Signal Range: Up to 2000 meters
- Power: 110-240 V~ (Optional add on 6, 12/24V DC board)
- Operating Temperature Range: From −10°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP20
- Devices Polling Interval: From 12 seconds
- Detection of Hub Connection Loss: Within 60 seconds
- Backup Battery Life: Up to 16 hours
- Dimensions (H x L x W): 36mm x 163mm x 163mm
- Weight: 0.362 kg
Key Features
- Manages up to 100 wireless Ajax devices including sirens, keypads, and range extenders
- Supports up to 50 users and 9 security groups for access and zoning control
- Photo verification alarm system with MotionCam detectors providing visual evidence within 9 seconds

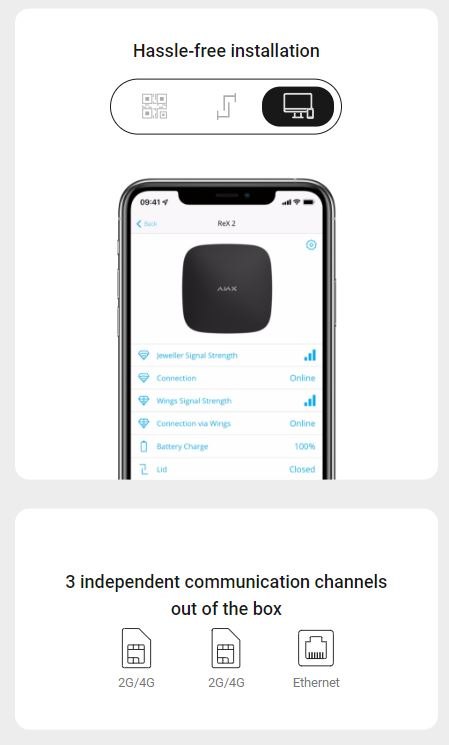

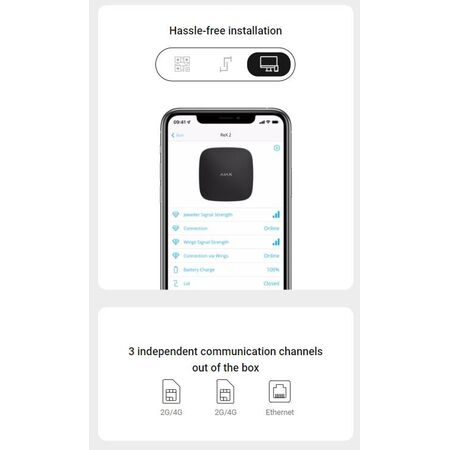

- Simultaneous connection to three internet providers via Ethernet and 2G, 3G, LTE cellular networks with automatic channel switching
- Radio communication range up to 2000 meters, extendable with up to 5 range extenders
- Tamper-resistant design with instant notifications on sabotage attempts
- Backup battery provides up to 16 hours of operation during power outages
- Remote configuration and instant notifications via Ajax apps
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper setup, configuration, and integration with monitoring services.
Applications
- Home security systems
- Business security and monitoring
- Multi-floor and multi-building security setups
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless technology reduces the need for extensive wiring and associated material waste
- Energy-efficient operation with backup battery support reduces power consumption during outages
Warranty Information
24 months warranty.
Available Now
The AJAX HUB 2 4G Control Panel White by AJAX is available now for immediate purchase. Ideal for enhancing security in residential and commercial properties with advanced wireless monitoring and photo verification.
