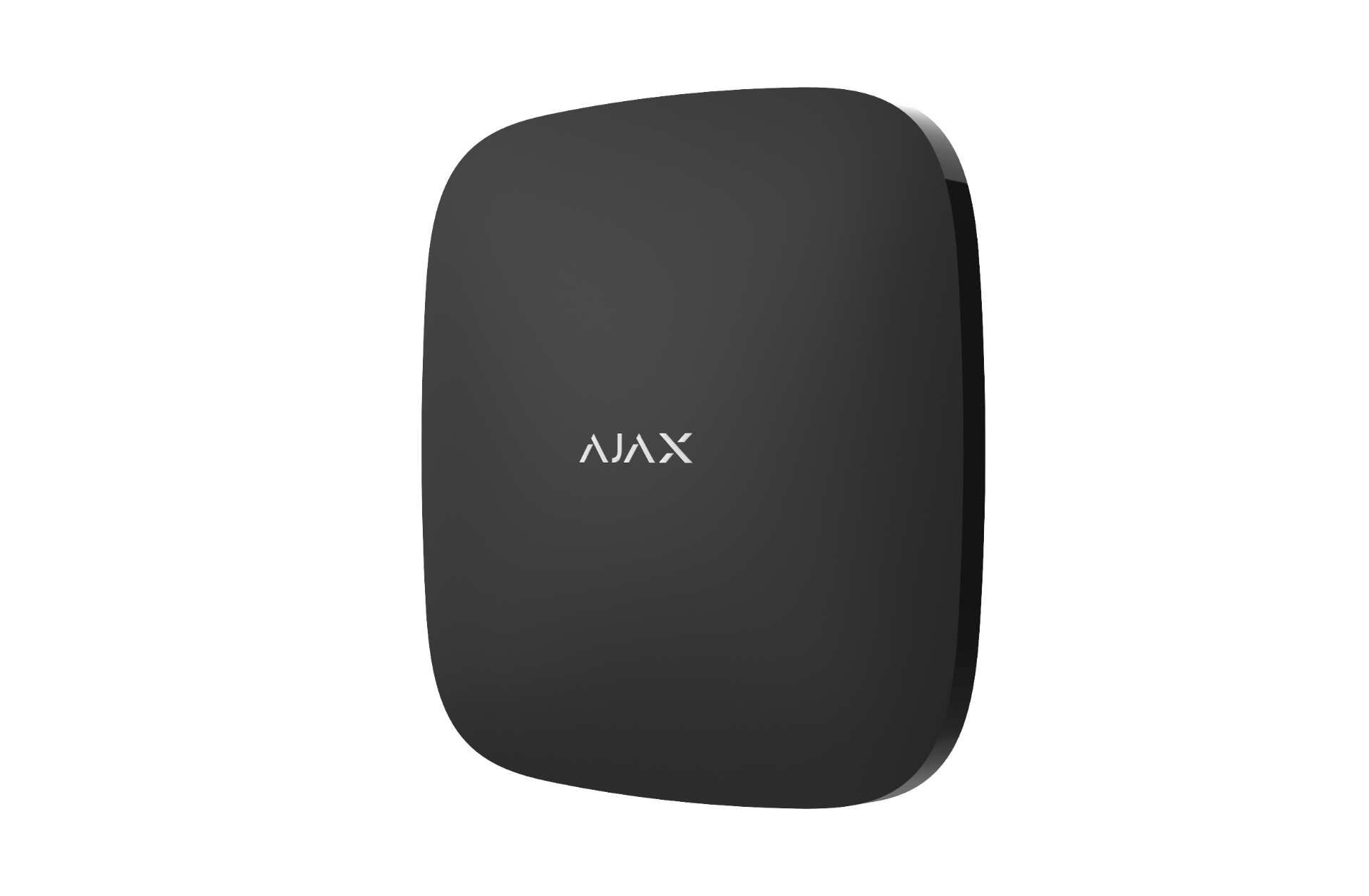

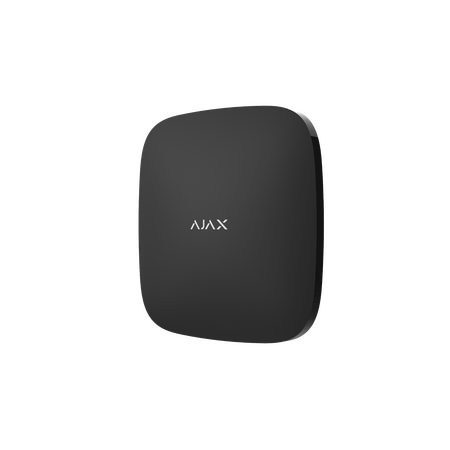

AJAX Hub 2 Plus Control Panel | Supports 200 Devices | Wireless Communication | IP20 Rated | by AJAX
AJAX Hub 2 Plus Control Panel is designed for robust security management, supporting up to 200 wireless devices and 25 security groups. Ideal for both home and commercial applications, it features advanced encryption and multiple communication channels, ensuring secure and reliable operation. With effortless installation and remote management via app, this control panel is perfect for modern security needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Hub 2 Plus Control Panel | Supports 200 Devices | Wireless Communication | IP20 Rated | by AJAX
Brand: AJAX
SKU: 30636.40.BL3
Alternatively Known As: Ajax Hub 2 Plus, Ajax Security Hub, Ajax Control Panel, Wireless Security Hub
Technical Specifications
- Capacity: Supports up to 200 wireless Ajax devices including 10 sirens or keypads with built-in siren and 5 range extenders
- Users supported: Up to 200
- Automation scenarios: Up to 64
- Security groups (areas): Up to 25
- Rooms supported: Up to 50
- Wireless communication: Proprietary two-way communication with advanced anti-sabotage and block encryption with dynamic key
- Communication channels: Ethernet, Cellular (4G) x 2, Wi-Fi 802.11 b/g/n
- Radio signal range: Up to 2000 meters
- Power supply: 110-240 V~ (Optional add on 6, 12/24V DC board)
- Operating temperature range: -10°C to +40°C
- Operating humidity: Up to 75%
- Protection class: IP20
- Dimensions (H x L x W): 36mm x 163mm x 163mm
- Weight: 0.362 kg

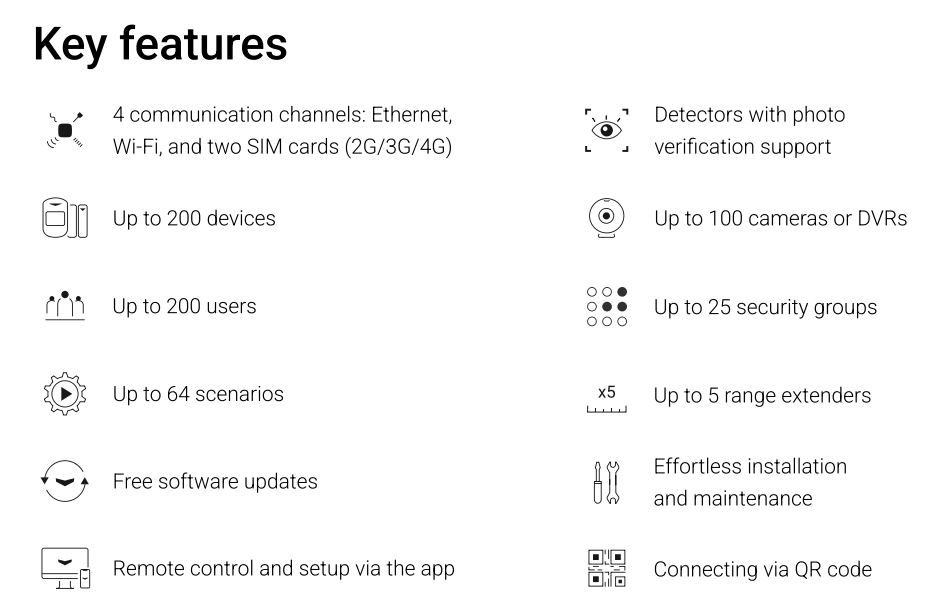

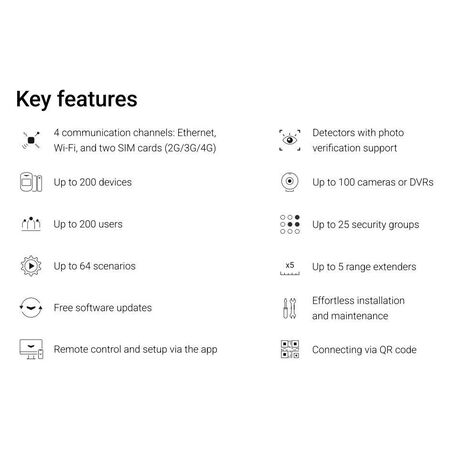

Key Features
- Supports detectors with photo verification
- Connects up to 200 wireless Ajax devices
- Supports up to 100 cameras or DVRs
- Up to 200 users and 25 security groups
- Up to 64 automation scenarios
- Free software updates
- Remote control and setup via app
- Effortless installation and maintenance
- Connection via QR code
- Multiple internet connections: Ethernet, Wi-Fi, and two SIM cards with automatic switching
- Backup battery providing up to 15 hours of operation during power outage
- Encrypted communication with Ajax Cloud for secure data storage and transmission
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper setup and integration with security services.
Applications
- Home security systems
- Commercial security monitoring
- Integration with security companies
- Remote security management via app
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Remote management reduces the need for physical maintenance visits, lowering carbon footprint.
- Efficient power management with backup battery reduces energy waste during outages.
Warranty Information
24 months warranty.
Available Now
The AJAX HUB 2 PLUS CONTROL PANEL BLACK 2Y by AJAX is available now for immediate purchase. Ideal for residential and commercial security system installations.
