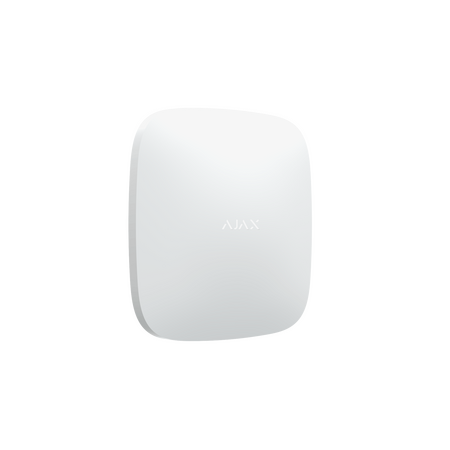

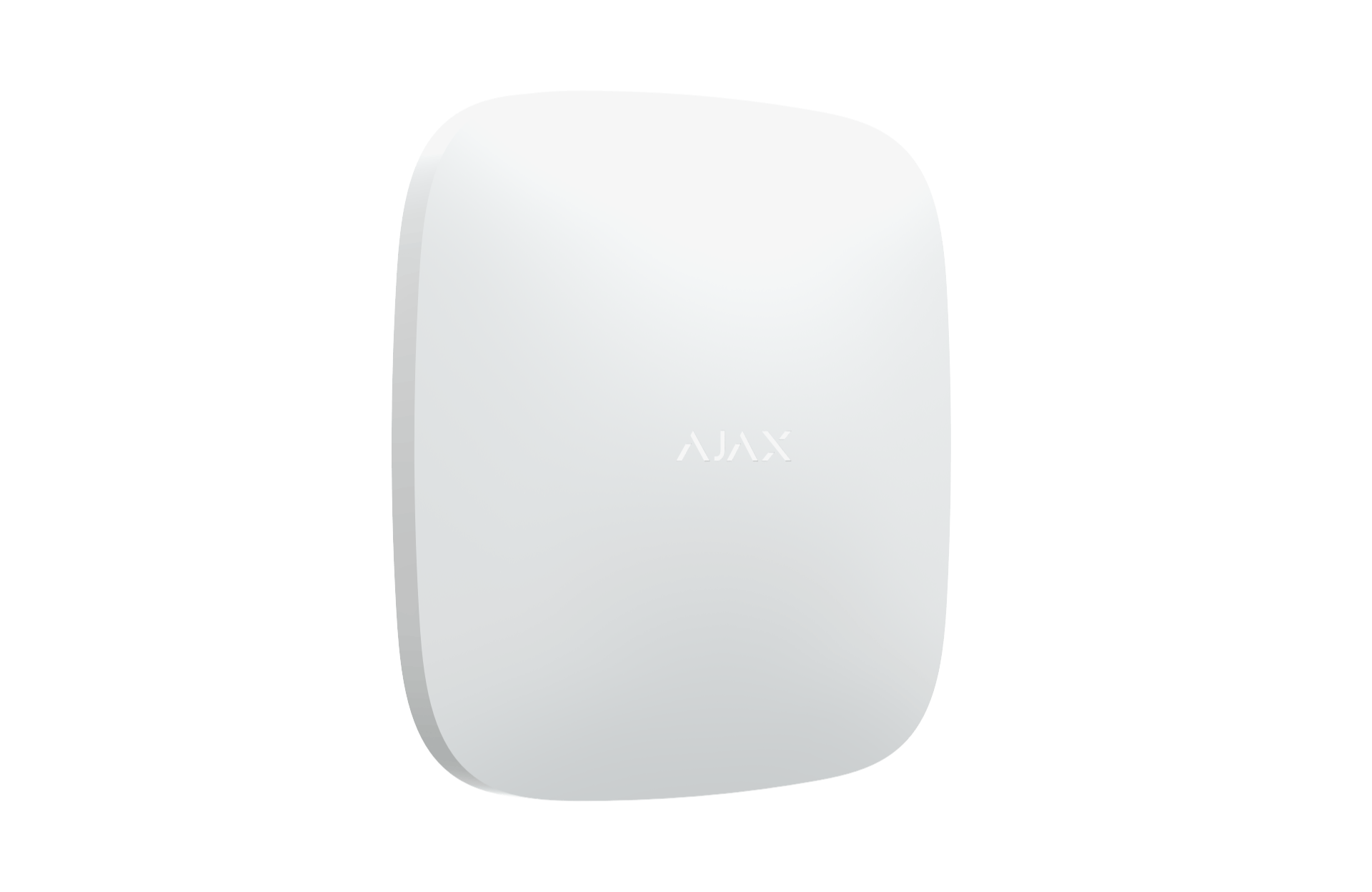

AJAX Hub 2 Plus Control Panel | Supports 200 Devices | Remote Control via App | IP20 Rated | by AJAX
AJAX Hub 2 Plus Control Panel is designed for robust security management, supporting up to 200 wireless Ajax devices and 25 security groups. Ideal for both home and commercial applications, it features remote control via app, automatic channel switching, and a backup battery for uninterrupted operation. With effortless installation and free software updates, this control panel ensures comprehensive security coverage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Hub 2 Plus Control Panel | Supports 200 Devices | Remote Control via App | IP20 Rated | by AJAX
Brand: AJAX
SKU: 30639.40.WH3
Alternatively Known As: Ajax Hub 2+, Ajax Security Hub, Ajax Control Panel, Wireless Security Hub
Technical Specifications
- Capacity: Supports up to 200 wireless Ajax devices including 10 sirens or keypads with built-in siren and 5 range extenders
- Users: Up to 200
- Automation Scenarios: Up to 64
- Security Groups (Areas): Up to 25
- Rooms: Up to 50
- Wireless Communication: Proprietary two-way communication with advanced anti-sabotage, block encryption with dynamic key, instant notifications, remote configuration via Ajax apps
- Communication Channels: Ethernet, Cellular (4G) x 2, Wi-Fi 802.11 b/g/n
- Radio Signal Range: Up to 2000 meters
- Power: 110-240 V~ (Optional add on 6, 12/24V DC board)
- Operating Temperature Range: From −10°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP20
- Dimensions (H x L x W): 36mm x 163mm x 163mm
- Weight: 0.362 kg
Key Features
- Supports detectors with photo verification
- Controls up to 200 wireless Ajax devices
- Supports up to 100 cameras or DVRs
- Allows up to 200 users and 25 security groups
- Supports up to 64 automation scenarios
- Free software updates
- Remote control and setup via app
- Effortless installation and maintenance
- Connects via QR code
- Connects to four internet providers simultaneously via Ethernet, Wi-Fi, and two SIM cards
- Automatic switching between communication channels
- Backup battery provides up to 15 hours of operation during power outage
- Reports power-down and restoration to CMS and users
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper setup and integration with monitoring services.
Applications
- Home security systems
- Commercial security monitoring
- Integration with security companies
- Remote security management via app
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces need for physical security patrols, lowering carbon footprint
- Supports remote monitoring reducing travel and associated emissions
- Energy-efficient operation with backup battery to minimize power waste
Warranty Information
24 months warranty.
Available Now
AJAX HUB 2 PLUS CONTROL PANEL WHITE 2Y by AJAX is available now for immediate purchase. Ideal for residential and commercial security system integration.
