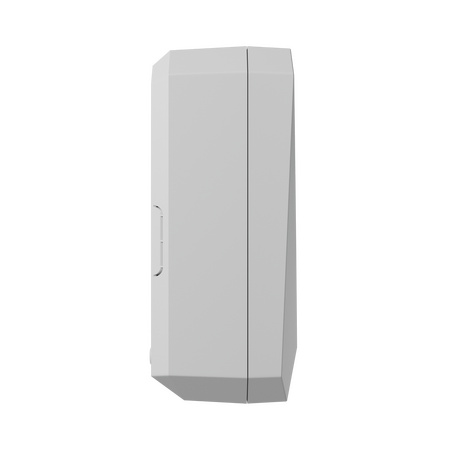

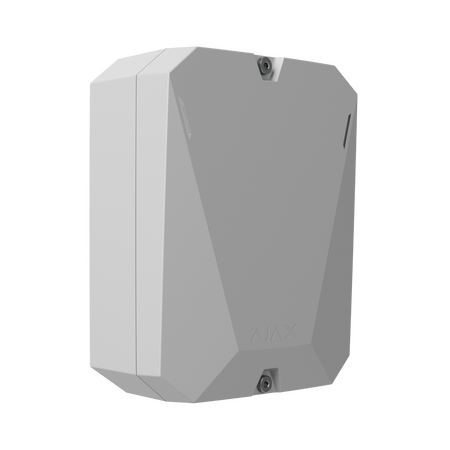

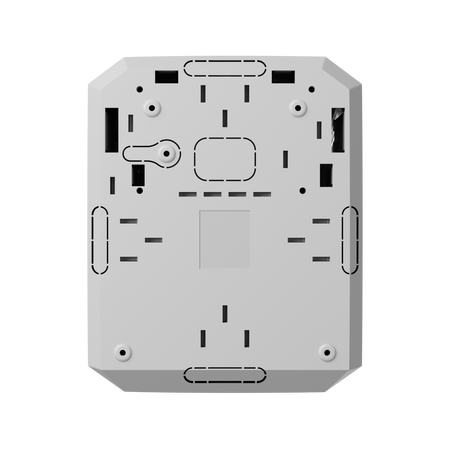

AJAX Hub Battery Powered Control Panel | Supports 100 Devices | Dual SIM 4G Connectivity | IP40 Rated | by AJAX
AJAX Hub Battery Powered Control Panel is designed for versatile security applications, supporting up to 100 wireless Ajax devices including sirens and keypads. With dual SIM 4G connectivity and a radio range of up to 2000 meters, it’s perfect for securing off-grid locations and construction sites. The battery saver feature ensures long-lasting operation, making it ideal for remote properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Hub Battery Powered Control Panel | Supports 100 Devices | Dual SIM 4G Connectivity | IP40 Rated | by AJAX
Brand: AJAX
SKU: 126867.263.WH3
Alternatively Known As: Ajax Hub Battery Powered Control Panel, Ajax Hub BP Jeweller, Wireless Security Hub, Off-grid Security Control Panel
Technical Specifications
- Capacity: Supports up to 100 wireless Ajax devices including 10 sirens/keypads and 5 range extenders
- Supports up to 36 Ajax NVRs and up to 224 Ajax cameras
- Supports up to 10 third-party IP cameras via RTSP and up to 224 via ONVIF
- Up to 50 users and 9 security groups
- Up to 32 automation scenarios and 50 rooms
- Event log capacity up to 1,000 events
- Proprietary two-way wireless communication with advanced anti-sabotage and block encryption
- Communication channels: Dual 4G cellular
- Radio signal range: up to 2000 meters
- Power supply external: 4.2–16 V⎓, up to 2 A (Zinc-air battery or external source)
- Power supply internal: 4.2–16 V⎓, up to 2 A (Rechargeable lead-acid, LiFePO4, or non-rechargeable LTC batteries)
- Operating DC voltage range: 3.5–16 V⎓
- Autonomous operation on external battery: up to 18 months full function, over 5 years battery saving mode
- Autonomous operation on internal battery: up to 17 months battery saving mode depending on battery type
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP40
- Dimensions (H x L x W): 196mm x 100mm x 238mm
- Weight: 1.01 kg
Key Features
- Wireless battery-powered control panel with external antenna connections
- Supports up to 100 wireless Ajax devices including sirens, keypads, and range extenders
- Dual SIM 4G/LTE cellular connectivity with automatic switching
- Event photo verification with MotionCam detectors
- Battery power saver feature extends battery life up to several years
- Radio communication range up to 2000 meters with support for 5 range extenders
- Supports up to 50 users and 9 security groups
- Tamper resistant with instant notifications on sabotage attempts
- Operates autonomously on internal and external batteries or alternative power sources like solar panels
- IP40 protection class suitable for indoor use
- Operating temperature range from −10 °C to +40 °C
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper setup, battery installation, and reliable cellular connectivity.
Applications

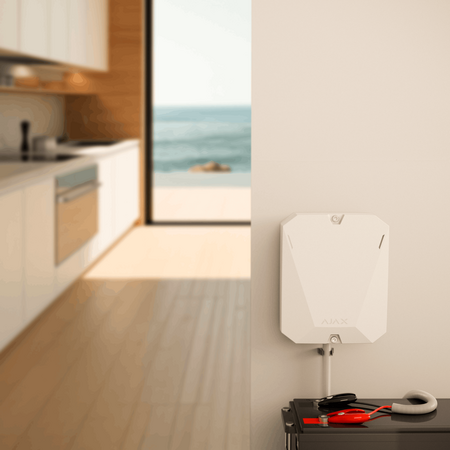

- Securing vacant houses
- Construction sites security
- Temporarily unused offices
- Remote or off-grid locations requiring autonomous security
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Battery power saver feature reduces battery waste and maintenance frequency
- Supports alternative power sources such as solar panels for sustainable operation
- Long battery life minimizes environmental impact from frequent battery replacements
Warranty Information
24 months warranty.
Available Now
AJAX HUB BP WHITE is available for immediate purchase, ideal for securing off-grid, remote, or temporarily unpowered properties.
