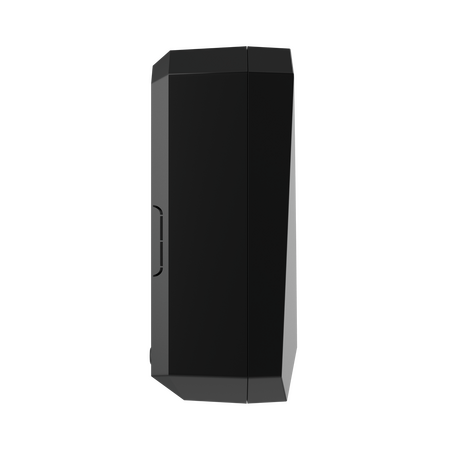

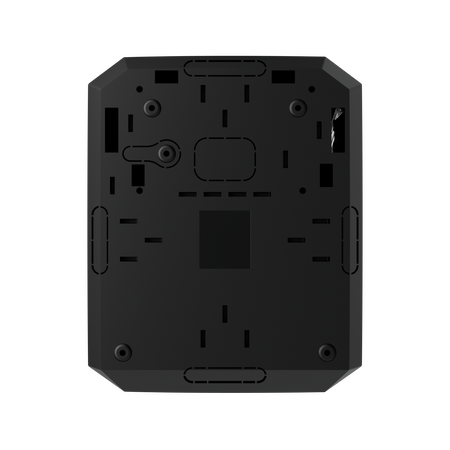

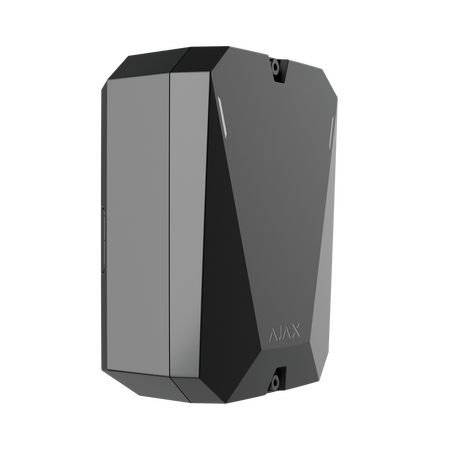

AJAX HUB BP BLACK Wireless Security Control Panel | Dual SIM 4G | Supports 100 Devices | by AJAX
AJAX HUB BP BLACK is a wireless battery-powered control panel designed for robust security solutions. With support for up to 100 Ajax devices, including sirens and keypads, it’s perfect for securing off-grid locations and temporarily unused properties. Featuring dual SIM 4G connectivity and a radio range of up to 2000 meters, this hub ensures reliable communication and instant alerts on sabotage attempts, making it ideal for both residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX HUB BP BLACK Wireless Security Control Panel | Dual SIM 4G | Supports 100 Devices | by AJAX
Brand: AJAX
SKU: 126868.263.BL3
Alternatively Known As: Ajax Hub Battery Powered Control Panel, Ajax Hub BP Jeweller, Wireless Security Hub, Off-grid Security Control Panel
Technical Specifications
- Capacity: Supports up to 100 wireless Ajax devices including 10 sirens/keypads and 5 range extenders
- Supports up to 36 Ajax NVRs and up to 224 Ajax cameras
- Supports up to 10 third-party IP cameras via RTSP and up to 224 via ONVIF
- Up to 50 users and 9 security groups
- Up to 32 automation scenarios and 50 rooms
- Event log capacity of up to 1,000 events
- Wireless communication with two-way encrypted signals and advanced anti-sabotage
- Dual cellular 4G communication channels
- Radio signal range up to 2000 meters
- Power supply: External 4.2–16 V⎓ up to 2 A; Internal 4.2–16 V⎓ up to 2 A
- Operating DC voltage range: 3.5–16 V⎓
- Autonomous operation on external battery up to 18 months in full function mode
- Autonomous operation on internal battery up to 17 months in battery saving mode
- Operating temperature range: −10 °C to +40 °C
- Operating humidity up to 75%
- Protection class: IP40
- Dimensions (H x L x W): 100mm x 238mm x 196mm
- Weight: 1.01 kg
Key Features
- Wireless battery-powered control panel with external antenna connections
- Supports up to 100 wireless Ajax devices including sirens, keypads, and range extenders
- Dual SIM 4G/LTE cellular connectivity with automatic switching
- Event photo verification with MotionCam detectors in 9 seconds
- Radio communication range up to 2000 meters with support for 5 range extenders
- Supports up to 50 users and 9 security groups
- Advanced battery power saver feature extends battery life significantly
- Tamper resistant with instant alerts on sabotage attempts
- Backup battery provides up to 16 hours of operation during power outages
- Proprietary two-way encrypted wireless communication with anti-sabotage technology
- Remote configuration via Ajax apps
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure optimal setup, reliable communication, and integration with monitoring services.
Applications

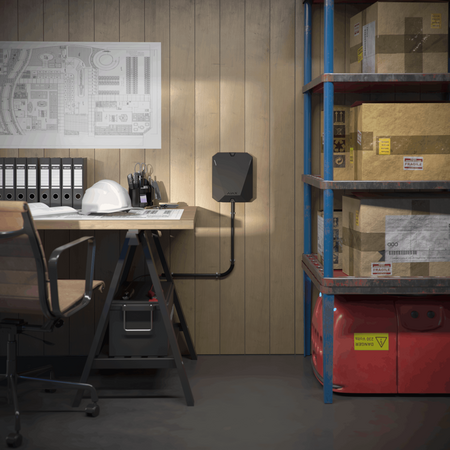

- Securing vacant houses
- Construction sites security
- Temporarily unused offices
- Remote or off-grid locations requiring autonomous security
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Battery power saver feature reduces battery waste and maintenance frequency
- Supports alternative power sources like solar panels for sustainable operation
- Long battery life reduces environmental impact from frequent battery replacements
Warranty Information
24 months warranty.
Available Now
AJAX HUB BP BLACK is available for immediate purchase, ideal for securing off-grid, remote, or temporarily unused properties with reliable wireless security.
