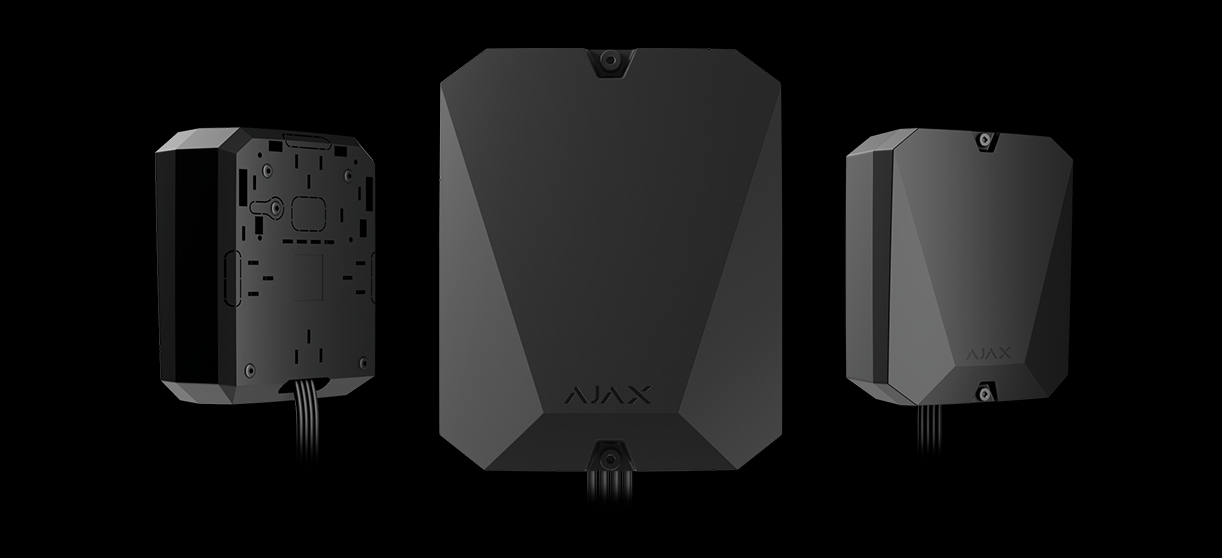

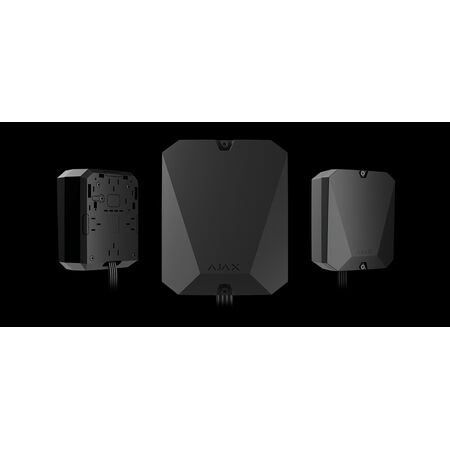

AJAX HUB HYBRID (4G) FIBRA BLACK | Supports 100 Devices | Dual Micro-SIM Slots | IP30 Protection | by AJAX
AJAX HUB HYBRID (4G) FIBRA BLACK is designed for seamless integration of up to 100 wired and wireless Ajax devices, making it ideal for both commercial and residential security systems. With support for up to 25 cameras and advanced anti-sabotage features, this hub ensures robust security and real-time monitoring. Its dual micro-SIM slots provide reliable 4G connectivity, while the proprietary Fibra technology enhances communication efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX HUB HYBRID (4G) FIBRA BLACK | Supports 100 Devices | Dual Micro-SIM Slots | IP30 Protection | by AJAX
Brand: AJAX
SKU: 71459.111.BL3
Alternatively Known As: Ajax Hybrid Hub, Ajax Fibra Hub, Ajax Security Control Panel, Hybrid Security Hub 4G
Technical Specifications
- Capacity: Up to 100 wired and wireless Ajax devices, 5 range extenders max, 10 sirens or keypads with built-in siren max
- Camera Support: Up to 25 cameras or DVRs with RTSP and integration with Dahua, Hikvision, Safire, EZVIZ, Uniview
- Users: Up to 50 users including admin, PRO accounts, and access management
- Automation Scenarios: Up to 32
- Security Groups: Up to 9
- Rooms: Up to 50
- Event Log: Up to 1000 events saved on non-volatile onboard flash memory
- Wired Communication: Proprietary Fibra technology with two-way communication and advanced anti-sabotage
- Compatible Wire: 4-core cable bus connection
- Input: 8 bus lines compatible with Fibra devices only
- Bus Line Length: Up to 2000 m using U/UTP cat.5 twisted pair
- Power Supply of Devices: Up to 14.4 W for all connected wired devices
- Output Voltage Range: 23–25.1 V⎓

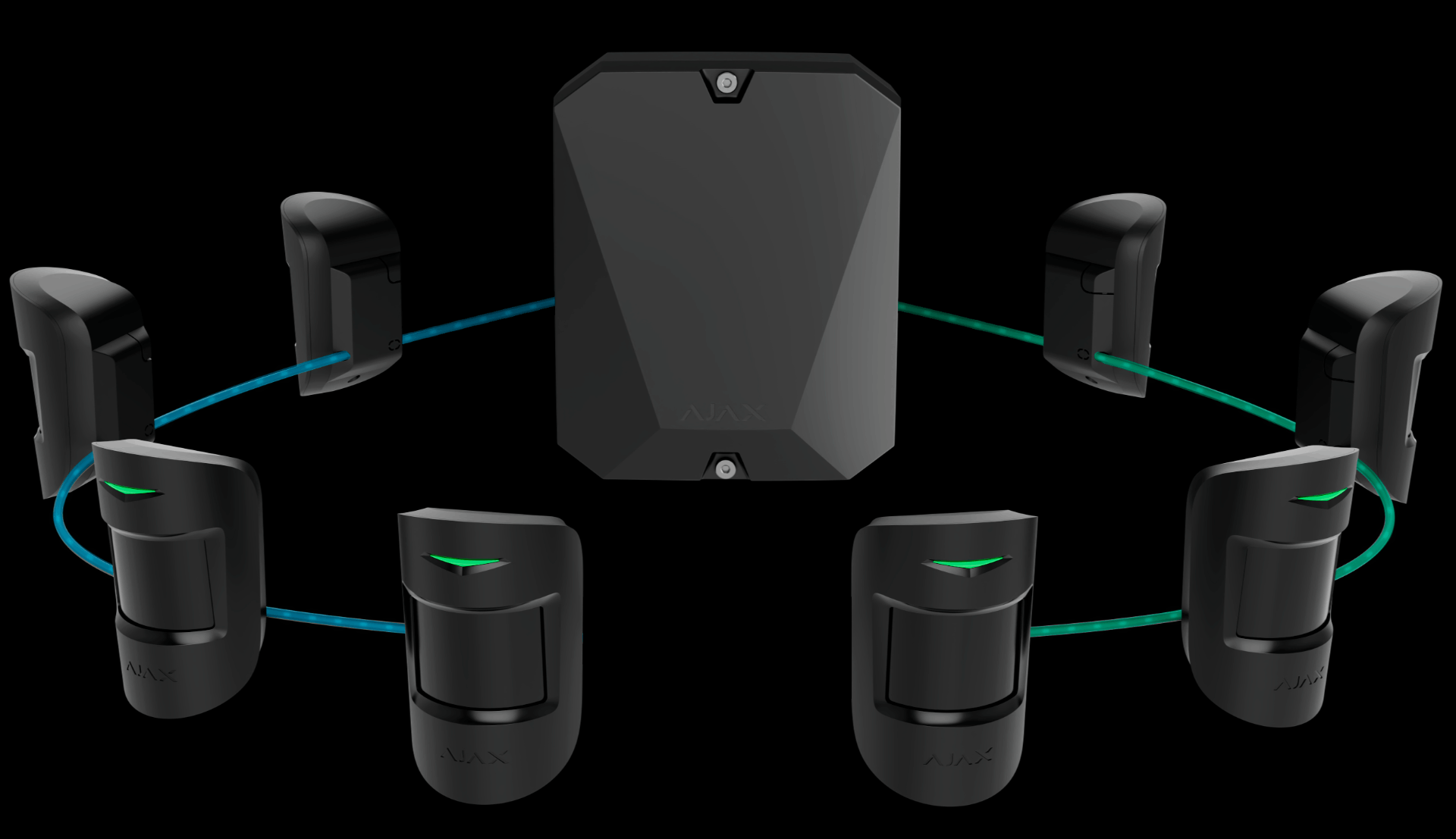

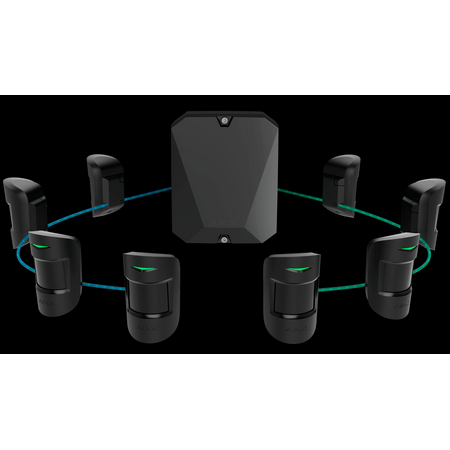

- Topologies: Star and Ring
- Devices Polling Interval: From 12 to 300 seconds
- Wireless Communication: Jeweller technology with up to 2000 m range
- Photo Wireless Communication: Wings technology with up to 1700 m range
- Ethernet: 1 × 8P8C socket supporting up to 100 Mbps
- Cellular: 2 × micro-SIM slots for 4G connectivity
- Supported Protocols: SurGard (Contact ID), SIA (DC-09), other proprietary protocols
- Power Supply: 110–240 V~, 50/60 Hz with up to 10 W mains power consumption
- Operating DC Voltage Range: 10.5–15 V⎓ from backup battery (not included), supports 4, 7, or 9 Ah batteries
- Autonomous Operation: Up to 60 hours
- Operating Temperature Range: −10°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP30
- Dimensions (H x L x W): 100mm x 238mm x 192mm
- Weight: 0.852 kg
Key Features
- Supports up to 100 wired and wireless Ajax devices in any proportion
- Up to 25 cameras or DVRs supported with RTSP and integration with major IP camera brands
- Up to 50 users with admin and PRO accounts for installers and monitoring companies
- Up to 32 automation scenarios and 9 security groups
- Eight bus lines compatible with Fibra devices only, with up to 2 km line length
- Proprietary Fibra wired communication combined with Jeweller wireless technology
- Two-way communication with advanced anti-sabotage and instant notifications
- Dual micro-SIM slots for 4G cellular connectivity
- Power supply from 110–240 V mains with backup battery support for up to 60 hours autonomous operation
- IP30 protection class and operating temperature range from −10°C to +40°C
Professional Installation Requirements
- Installation and administration must be performed by accredited partners who have completed specialized training to ensure proper setup and compliance.
Applications
- Commercial and residential security systems requiring hybrid wired and wireless device integration
- Large facilities needing extended wired communication up to 2 km
- Security projects requiring advanced alarm photo verification and real-time system control
- Installations requiring robust anti-sabotage and remote configuration capabilities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Hybrid wired and wireless technology reduces the need for extensive wiring, minimizing material waste
- Remote configuration and monitoring reduce the need for on-site visits, lowering carbon footprint
- Energy-efficient design with low power consumption and backup battery support
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
AJAX HUB HYBRID (4G) FIBRA BLACK is available for immediate purchase, ideal for professional security system installations requiring hybrid wired and wireless device integration.
