AJAX KEYPAD FIBRA BLACK | Capacitive Touch | 100 Personal Codes | IP50 Protection | by Dicker Data

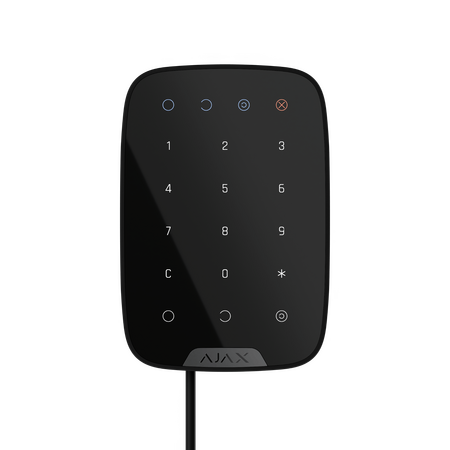

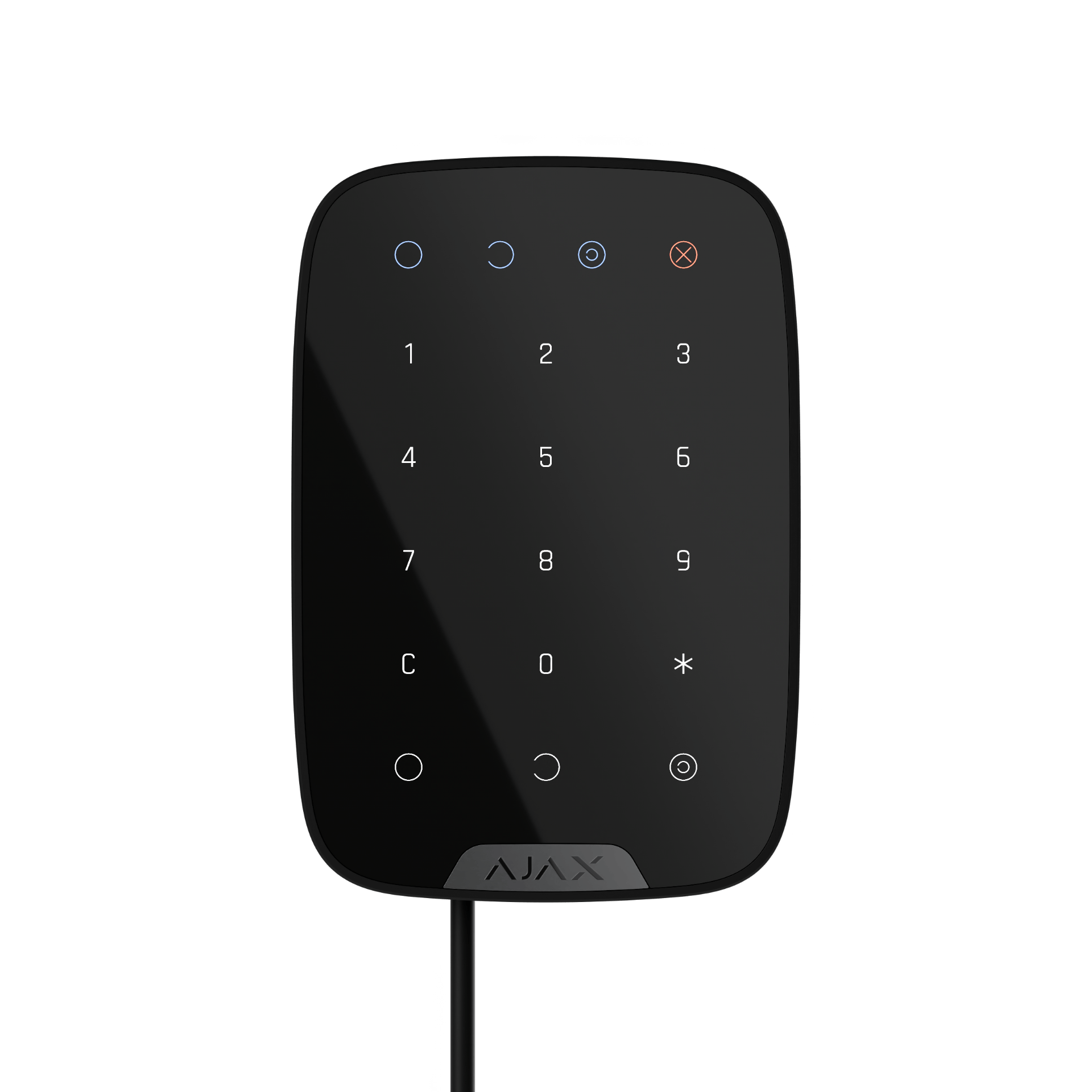

The AJAX KEYPAD FIBRA BLACK is a capacitive touch keypad designed for security systems, supporting up to 100 personal codes for user access. Ideal for both residential and commercial properties, it features sabotage protection and operates efficiently with a Fibra line power supply. With an IP50 rating, this keypad ensures durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX KEYPAD FIBRA BLACK | Capacitive Touch | 100 Personal Codes | IP50 Protection | by Dicker Data
Brand: Dicker Data
SKU: 44400.12.BL1
Alternatively Known As: AJAX Fibra Black Keypad, AJAX Capacitive Touch Keypad, AJAX Security Keypad
Technical Specifications
- Sensor Type: Capacitive touch
- Maximum Codes: Up to 100 personal codes, one code per user
- Keypad Codes: One code per KeyPad
- Duress Codes: Up to 100 personal codes, one code per user
- Keypad Duress Codes: One code per KeyPad
- Sabotage Protection: Locks for 3–180 minutes after 3 incorrect code entries within 1 minute
- Power Supply: Fibra line power supply (7−27 V⎓, up to 230 mW)
- Line Connection: 4-core cable
- Fibra Line Length: Up to 2,000 meters with U/UTP cat.5 twisted pair
- Operating Temperature Range: -10°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP50, IK04
- Dimensions (H x L x W): 103mm x 19mm x 150mm
- Weight: 0.165 kg
Key Features
- Capacitive touch sensor type
- Supports up to 100 personal codes, one code per user
- One code per KeyPad
- Duress codes supported up to 100 personal codes
- Protection against code guessing with lockout for 3–180 minutes after 3 incorrect attempts within 1 minute
- Powered by Fibra line power supply (7−27 V⎓, up to 230 mW)
- Line connection via 4-core cable
- Fibra line length up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range from -10°C to +40°C
- Operating humidity up to 75%
- Protection class IP50, IK04
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper integration and functionality.
Applications
- Security systems requiring capacitive touch keypads
- Access control for residential and commercial properties
- Integration with AJAX security systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient Fibra line power supply
- Durable design reduces need for frequent replacements
Warranty Information
24 months warranty.
Available Now
The AJAX KEYPAD FIBRA BLACK 2YR by Dicker Data is available now for immediate purchase. Ideal for security and access control applications in residential and commercial environments.
