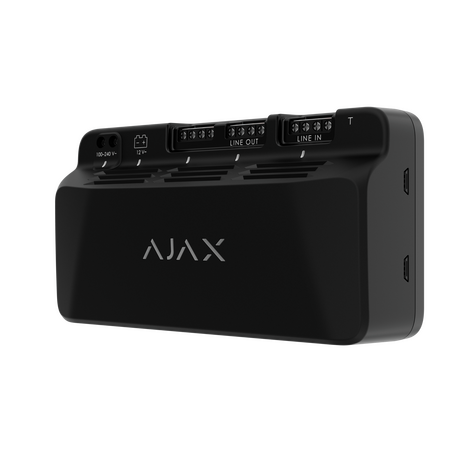

AJAX LINESUPPLY FIBRA (45W) Black | 30W Output Power | Galvanic Isolation | 2000m Line Length | by Dicker Data

BRAND: Dicker Data
SKU: 82132.181.BL1
$359.10
+ −
30 Days Return Delivery Options
AJAX LINESUPPLY FIBRA (45W) Black is designed to power Fibra devices in security systems, supporting output power consumption up to 30W. With galvanic isolation to prevent power draw from the hub and a line length of up to 2000 meters, it ensures reliable performance for both residential and commercial applications. Ideal for installations requiring backup power support, this unit guarantees uninterrupted operation during outages.

Product Name/Title: AJAX LINESUPPLY FIBRA (45W) Black | 30W Output Power | Galvanic Isolation | 2000m Line Length | by Dicker Data

Brand: Dicker Data

SKU: 82132.181.BL1

Alternatively Known As: AJAX Fibra Line Supply 45W, AJAX Fibra Power Module, AJAX LineSupply 45W

Technical Specifications
  • Number of input lines: 1 - LineSupply (45 W) can be connected after any Fibra device
  • Number of output lines: 1 - Fibra devices with total power consumption up to 30 W
  • Galvanic isolation prevents power draw from the hub
  • Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair cable
  • Line connection: 4-core cable
  • Mains power supply: 100–240 V~, 50/60 Hz
  • Backup: 12 V⎓ battery with capacity 7 to 18 Ah (not included), charges from mains
  • Power output: 30 W for output line, 15 W to charge backup battery
  • Tamper alarm: connector available for tamper board (sold separately)
  • Protection against overvoltage on Fibra signal lines
  • Operating temperature range: -10 °C to +40 °C
  • Operating humidity: up to 75%
  • Electric shock protection: Class III
  • Dimensions (H x L x W): 53mm x 160mm x 85mm
  • Weight: 0.456 kg
Key Features
  • Single input LineSupply with 45 W power capacity
  • Supports output line power consumption up to 30 W
  • Galvanic isolation to prevent power consumption from the hub
  • Supports Fibra line length up to 2000 meters using U/UTP cat.5 twisted pair cable
  • 4-core cable line connection
  • Mains power supply: 100–240 V~, 50/60 Hz
  • Backup battery support: 12 V⎓ battery (7 to 18 Ah) not included, charges from mains
  • Tamper alarm connector for additional security
  • Overvoltage protection on Fibra signal lines
  • Electric shock protection Class III

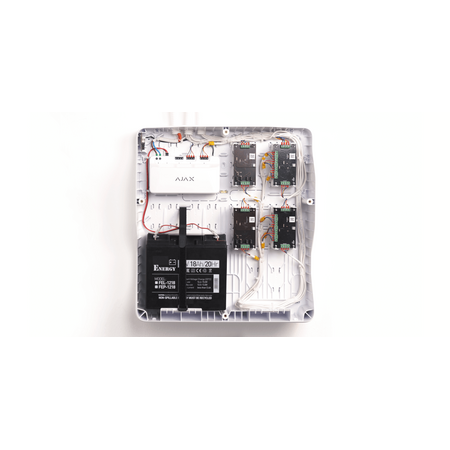

Professional Installation Requirements
  • Installation should be performed by a qualified technician familiar with security system power supplies and electrical safety standards.
Applications
  • Power supply for Fibra devices in security and alarm systems
  • Suitable for installations requiring up to 2000 meters Fibra line length
  • Backup power support for uninterrupted operation
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Supports backup battery to ensure continuous operation during power outages, reducing system downtime
  • Overvoltage protection helps extend device lifespan, reducing electronic waste
Warranty Information

24 months warranty against manufacturing defects.

Available Now

The AJAX LINESUPPLY FIBRA (45W) Black is available for immediate purchase, ideal for powering Fibra security devices in residential and commercial alarm systems.
