AJAX MotionCam Fibra Black | Built-in Camera | PIR Sensor | SmartDetect Algorithm | by AJAX

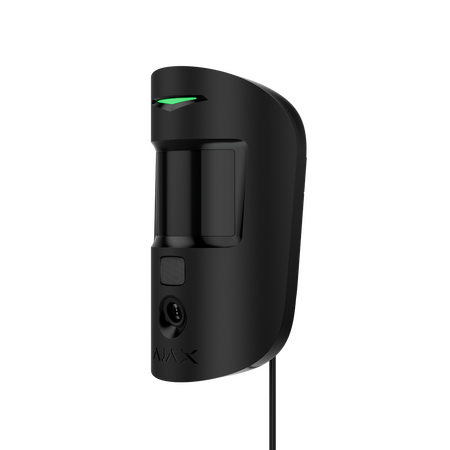

AJAX MotionCam Fibra Black is a cutting-edge motion detector featuring a built-in camera for photo verification and a highly sensitive PIR sensor. Ideal for residential, commercial, and industrial security systems, it minimizes false alarms with its SmartDetect algorithm and offers temperature compensation for effective detection in various conditions. Experience enhanced security with on-demand photo capture via the Ajax app.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionCam Fibra Black | Built-in Camera | PIR Sensor | SmartDetect Algorithm | by AJAX
Brand: AJAX
SKU: 53770.169.BL1
Alternatively Known As: Ajax MotionCam Fibra, MotionCam PhOD Detector, Ajax Photo Motion Sensor, Fibra Motion Detector with Camera

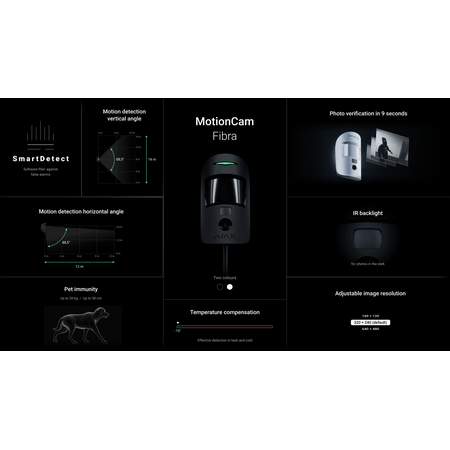

Technical Specifications
- Sensitive element: PIR sensor
- Motion detection distance: up to 12 m (installed at 2.4 m height)
- Motion detection angle: horizontal 88.5°, vertical 80°
- Motion detection speed: 0.3 to 2 m/s
- Image resolution: up to 640 × 480 pixels
- Number of photos per alarm: 1-5 images at 320 × 240 px or 160 × 120 px, 1-3 images at 640 × 480 px
- Photo verification modes: Photo by Alarm, On Demand, Scenario, Schedule
- Photo delivery time: up to 7 s (160 × 120 px), up to 9 s (320 × 240 px), up to 20 s (640 × 480 px)
- Infrared backlight for night shooting: Yes
- Sensitivity levels: 4
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention: SmartDetect software algorithm
- Temperature compensation: effective from −10 °C to +40 °C
- Power supply: Fibra line (5−30 V⎓, up to 25 mW)
- Auxiliary power: Sealed LTO AA battery charged from Fibra line
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating humidity: up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 135mm x 60mm x 70mm
- Weight: 0.15 kg
Key Features
- Built-in camera for photo verification upon motion detection
- Photo verification reduces false alarms and unnecessary patrols
- On-demand photo capture via Ajax app
- Automatic photo capture by alarm or schedule
- PIR sensor by Excelitas Technologies for accurate motion detection
- Special Fresnel lens design differentiates humans, animals, and thermal noise
- SmartDetect algorithm filters false alarms with high accuracy
- Temperature compensation for effective detection from −10 °C to +40 °C
- Four sensitivity levels with pet immunity up to 20 kg and 50 cm height
- Secure two-way communication via Fibra proprietary protocol with encryption and authentication
- Infrared backlight for shooting in the dark
Professional Installation Requirements
- Professional installation by a qualified security system technician or licensed electrician is recommended to ensure proper integration with Fibra communication lines and optimal sensor placement.
Applications
- Residential security systems
- Commercial and office security monitoring
- Industrial facility intrusion detection
- Integration with security company monitoring services
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces false alarms, minimizing unnecessary security patrols and associated emissions
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
24 months warranty.
Available Now
AJAX MOTIONCAM (PHOD) FIBRA BLACK 2YR is available for immediate purchase, ideal for enhancing security in residential, commercial, and industrial applications.
