Trade Discount 17%

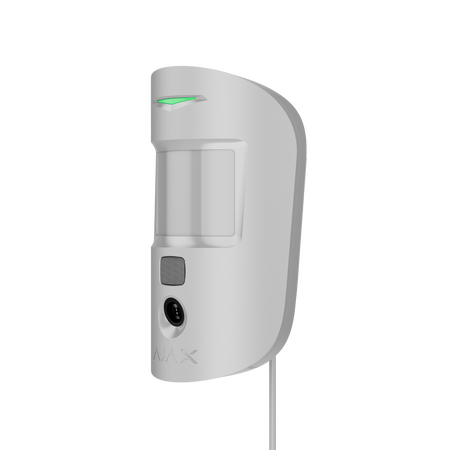

AJAX MotionCam Fibra White | Built-in Camera for Photo Verification | SmartDetect Algorithm | by AJAX
AJAX MotionCam Fibra White is a cutting-edge motion detector featuring a built-in camera for photo verification, ensuring accurate monitoring and reducing false alarms. With a detection range of up to 12 meters and advanced SmartDetect technology, it's perfect for residential, commercial, and industrial security applications. Designed for professional installation, this device operates efficiently in temperatures from -10°C to +40°C, making it a reliable choice for any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionCam Fibra White | Built-in Camera for Photo Verification | SmartDetect Algorithm | by AJAX
Brand: AJAX
SKU: 53771.169.WH1
Alternatively Known As: Ajax MotionCam Fibra, MotionCam Photo Detector, Ajax PIR Motion Sensor with Camera, Fibra Motion Detector with Photo Verification

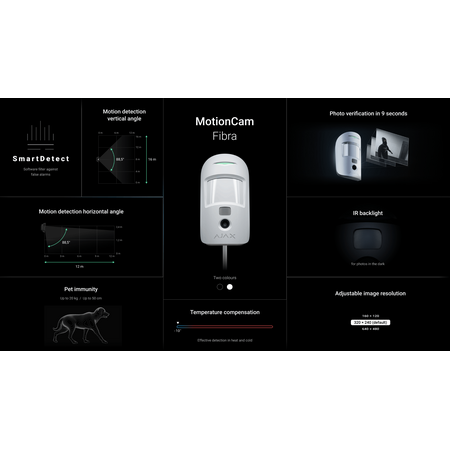

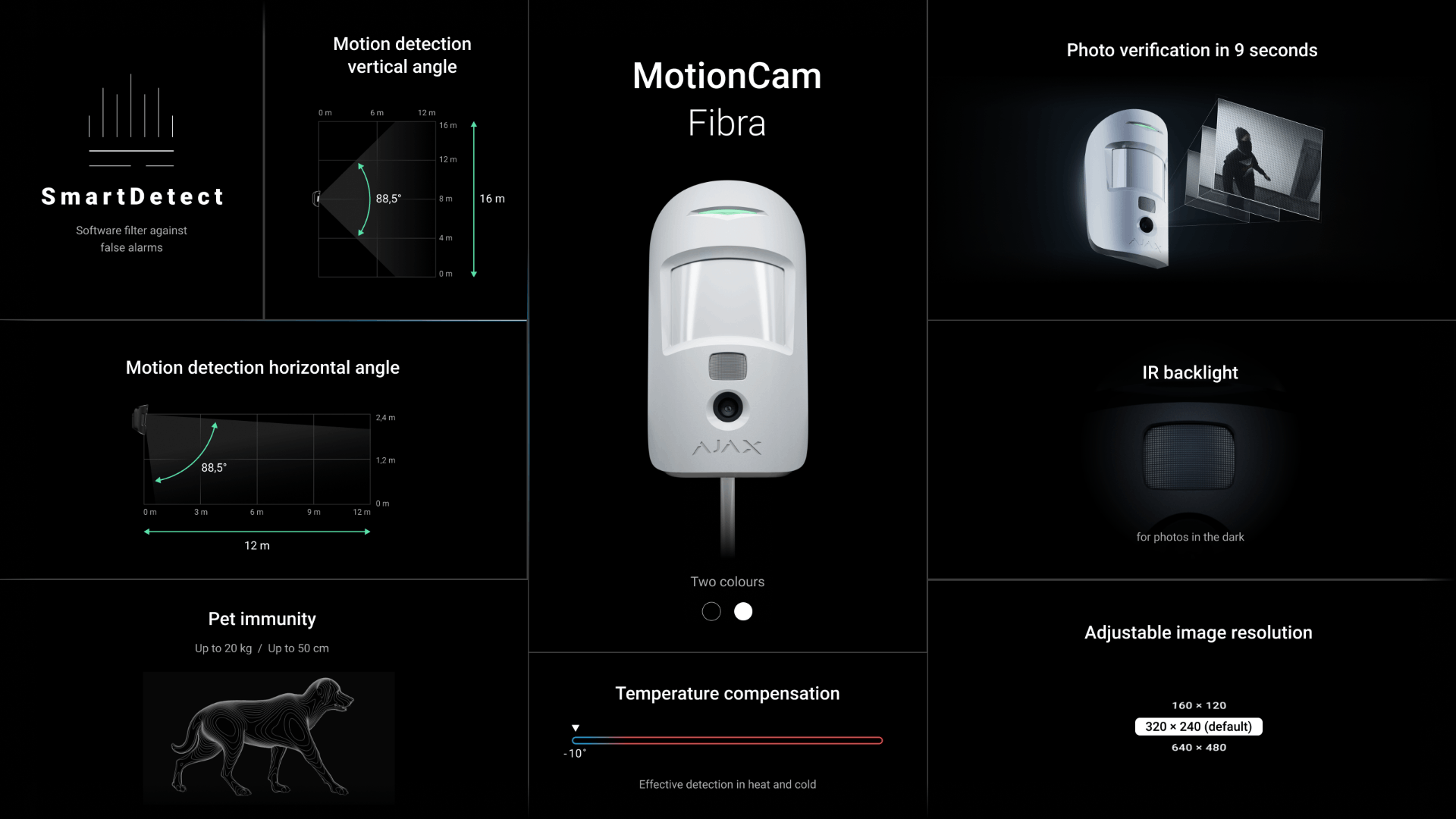

Technical Specifications
- Sensitive element: PIR sensor
- Motion detection distance: up to 12 m (installed at 2.4 m height)
- Motion detection angle: horizontal 88.5°, vertical 80°
- Motion detection speed: 0.3 to 2 m/s
- Image resolution: up to 640 × 480 pixels
- Number of photos per alarm: 1-5 images at 320 × 240 px or 160 × 120 px, 1-3 images at 640 × 480 px
- Photo verification modes: Photo by Alarm, Photo on Demand, Photo by Scenario, Photo by Schedule
- Photo delivery time: up to 7 s (160 × 120 px), up to 9 s (320 × 240 px), up to 20 s (640 × 480 px)
- Infrared backlight for shooting in the dark: Yes
- Sensitivity levels: 4
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention: SmartDetect software algorithm
- Temperature compensation: effective detection from −10 °C to +40 °C
- Power supply: Fibra line power supply (5−30 V⎓, up to 25 mW)
- Auxiliary power supply: Sealed LTO AA battery charged from Fibra line
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters (using U/UTP cat.5 twisted pair)
- Operating humidity: up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 135mm x 60mm x 70mm
- Weight: 0.15 kg
Key Features
- Built-in camera for photo verification upon motion detection
- Photo verification reduces false alarms and unnecessary patrols
- On-demand photo capture via Ajax app
- Automatic photo capture by alarm or schedule
- PIR sensor by Excelitas Technologies for accurate motion detection
- Special Fresnel lens design differentiates humans, animals, and thermal noise
- SmartDetect algorithm filters false alarms with high accuracy
- Temperature compensation for effective detection from −10 °C to +40 °C
- Four sensitivity levels with pet immunity up to 20 kg and 50 cm height
- Secure two-way communication via Fibra proprietary protocol with encryption and authentication
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration with Fibra line and system configuration.
Applications
- Residential security systems
- Commercial and office security monitoring
- Industrial facility intrusion detection
- Integration with security company monitoring services
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces unnecessary security patrols, lowering carbon footprint from vehicle use
- Energy-efficient operation with low power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
24 months warranty.
Available Now
AJAX MOTIONCAM (PHOD) FIBRA WHITE 2YR is available for immediate purchase, ideal for enhancing security in residential, commercial, and industrial applications.
