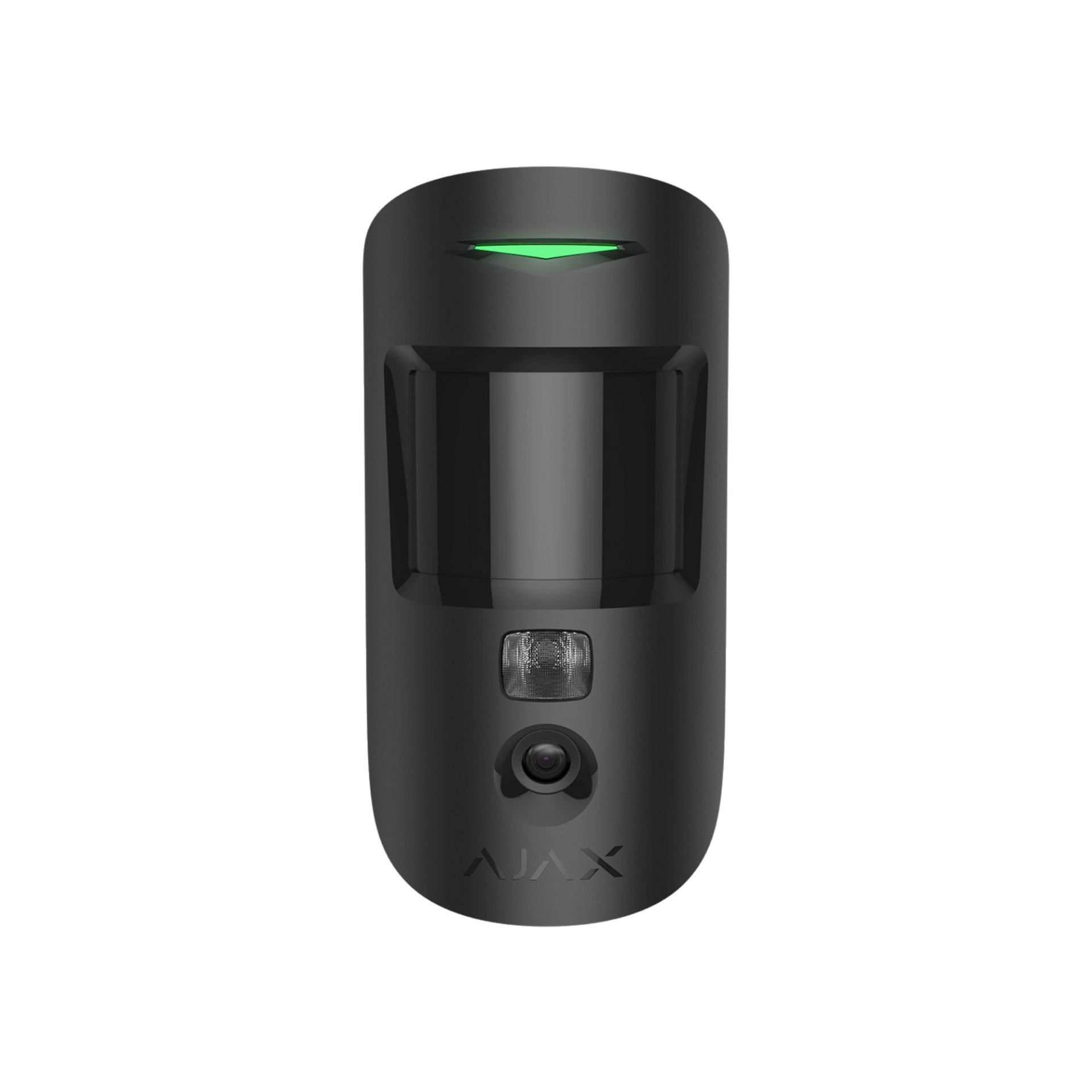

AJAX MotionCam PIR with Camera | Wireless Detection | Photo Verification | IP50 Rated | by AJAX
AJAX MotionCam PIR with Camera is a wireless motion detector featuring photo verification on alarm and demand, making it ideal for residential and commercial security systems. With a detection range of up to 12 m and advanced SmartDetect technology to minimize false alarms, this device ensures reliable monitoring. Its infrared backlight allows for night shooting, while the long battery life of up to 4 years enhances convenience and sustainability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionCam PIR with Camera | Wireless Detection | Photo Verification | IP50 Rated | by AJAX
Brand: AJAX
SKU: 45852.120.BL3
Alternatively Known As: Wireless PIR Motion Detector with Camera, AJAX Motion Detector with Photo Verification, AJAX MotionCam PIR Sensor
Technical Specifications
- Sensitive element: PIR sensor
- Motion detection distance: up to 12 m (installed at 2.4 m height)
- Motion detection angle: horizontal 88.5°, vertical 80°
- Motion detection speed: 0.3 to 2 m/s
- Image resolution: up to 640 × 480 pixels
- Number of photos by alarm: 1 to 5 images at 320 × 240 px or 160 × 120 px, 1 to 3 images at 640 × 480 px
- Photo verification modes: Photo by Alarm, Photo on Demand, Photo by Scenario, Photo by Schedule
- Photo delivery time: up to 7 s (160 × 120 px), up to 9 s (320 × 240 px), up to 20 s (640 × 480 px)
- Infrared backlight for night shooting: Yes
- Compatibility with radio signal range extenders: ReX 2
- Sensitivity levels: 3
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention: SmartDetect software algorithm
- Temperature compensation: effective detection from −10 °C to +40 °C
- Wireless communication range: up to 1700 m
- Battery: 2 × CR123A
- Calculated battery life: up to 4 years
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 135mm x 60mm x 70mm
- Weight: 0.167 kg
Key Features
- Wireless motion detector with photo verification on alarm and on demand
- Combined special optics and software filter (SmartDetect) to reduce false alarms
- Fresnel lens design for detailed thermal diagrams distinguishing humans, animals, and thermal noise
- Temperature compensation for effective detection from −10 °C to +40 °C
- Photo verification modes: Photo by Alarm, Photo on Demand, Photo by Scenario, Photo by Schedule
- Infrared backlight for shooting in the dark
- Compatibility with ReX 2 radio signal range extenders
- Pet immunity for animals up to 20 kg and 50 cm height
- Wireless communication range up to 1700 m
- Battery life up to 4 years with 2 × CR123A batteries
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure optimal placement and integration with existing security infrastructure.
Applications
- Residential security systems
- Commercial property surveillance
- Office and retail security monitoring
- Integration with fire detection systems for photo verification
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life reduces battery waste and replacement frequency
- Wireless design minimizes installation impact and material use
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MOTIONCAM (PHOD) PIR with Cam Black is available for immediate purchase, ideal for enhancing security in residential, commercial, and office environments.
