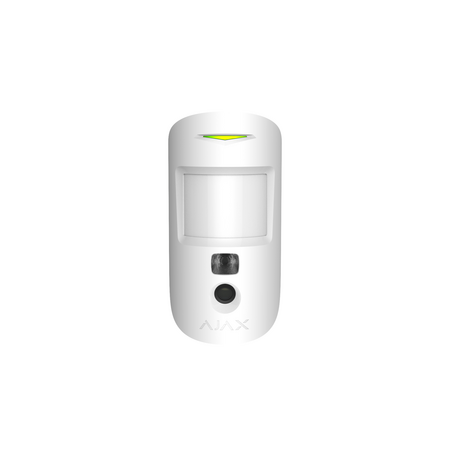

AJAX MotionCam Wireless PIR with Camera | 640x480 Resolution | Night Vision | Pet Immunity | by AJAX
AJAX MotionCam Wireless PIR with Camera offers advanced motion detection with integrated photo verification, making it ideal for home security monitoring. With a detection range of up to 12 meters and the ability to capture up to 5 images per alarm, this device ensures reliable surveillance. Designed for both residential and commercial use, it features pet immunity for animals up to 20 kg, ensuring false alarms are minimized while providing peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionCam Wireless PIR with Camera | 640x480 Resolution | Night Vision | Pet Immunity | by AJAX
Brand: AJAX
SKU: 30652.23.WH3
Alternatively Known As: Wireless Motion Detector with Camera, PIR Motion Sensor with Photo Verification, AJAX Motion Sensor Camera
Technical Specifications
- Sensitive element: PIR sensor
- Motion detection distance: up to 12 m (installed at 2.4 m height)
- Motion detection angle: horizontal 88.5°, vertical 80°
- Motion detection speed: 0.3 to 2 m/s
- Image resolution: up to 640 × 480 pixels
- Number of photos per alarm: up to 5
- Infrared backlight for night shooting: Yes
- Compatibility with radio signal range extenders: ReX 2
- Sensitivity levels: 3
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention: SmartDetect Software algorithm
- Temperature compensation: effective from −10 °C to +40 °C
- Wireless communication range: up to 1700 m
- Battery type: 2 × CR123A
- Calculated battery life: up to 4 years
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 135mm x 60mm x 70mm
- Weight: 0.167 kg
Key Features
- Wireless motion detector with integrated photo camera for alarm verification
- Photo capture only activates upon motion detection alarm
- Encrypted image data transmission and storage
- Adjustable image resolution up to 640 × 480 pixels
- Two specialized radio protocols: Jeweller for alarms and Wings for rapid image delivery
- First photo delivered within 9 seconds of motion detection
- Operating range up to 1700 meters from the hub
- Up to 4 years battery life on pre-installed batteries
- Pet immunity for animals up to 20 kg and 50 cm height
- SmartDetect algorithm to prevent false alarms
- Infrared backlight for night shooting
Professional Installation Requirements
- Professional installation by a qualified security technician or electrician is recommended to ensure optimal placement and reliable wireless communication.
Applications
- Home security monitoring
- Commercial property surveillance
- Remote visual alarm verification
- Security for critical outdoor and indoor areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life reduces battery waste and replacement frequency
- Wireless design minimizes installation impact and material use
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MotionCam Wireless PIR with Camera White is available for immediate purchase, ideal for enhancing security in residential and commercial properties.
