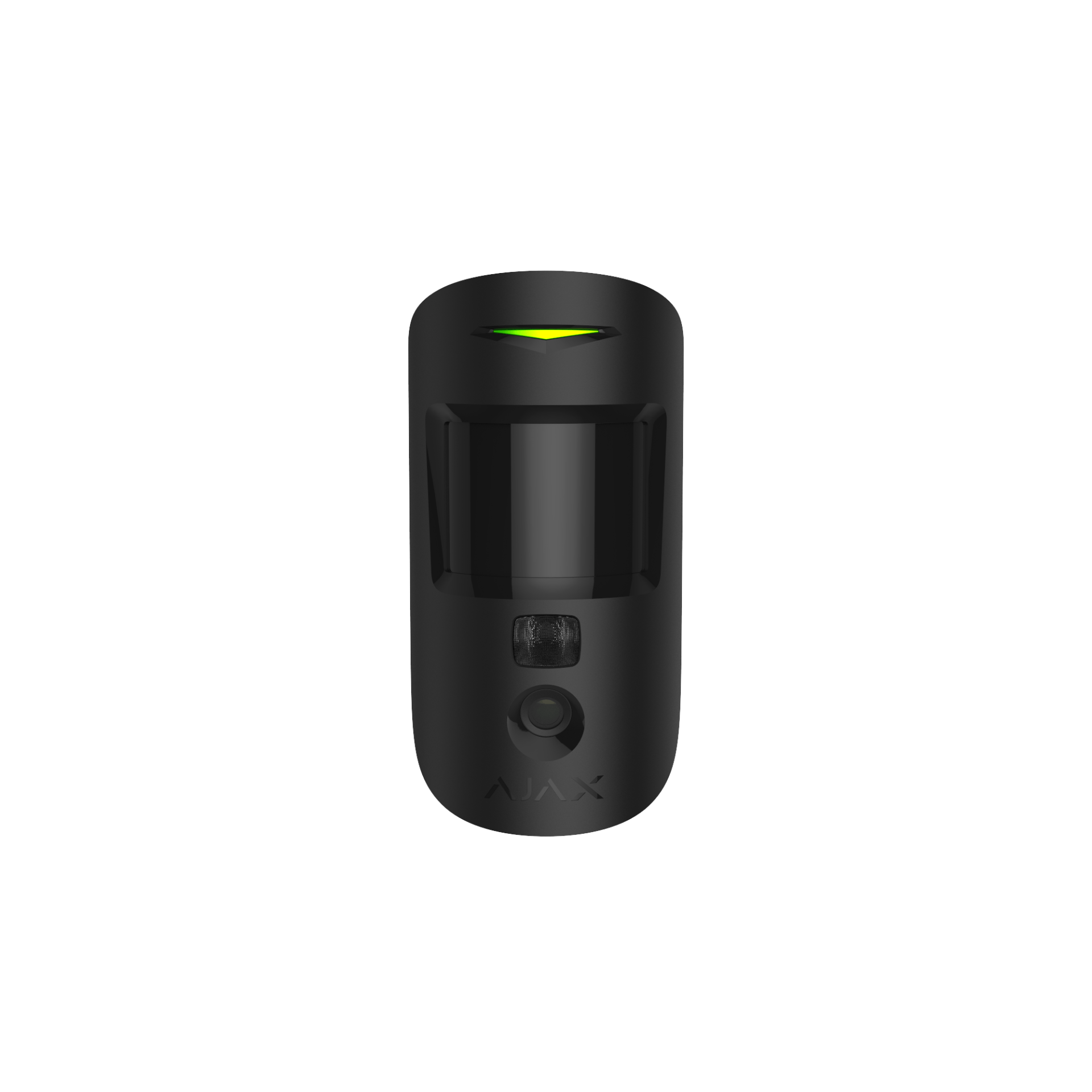

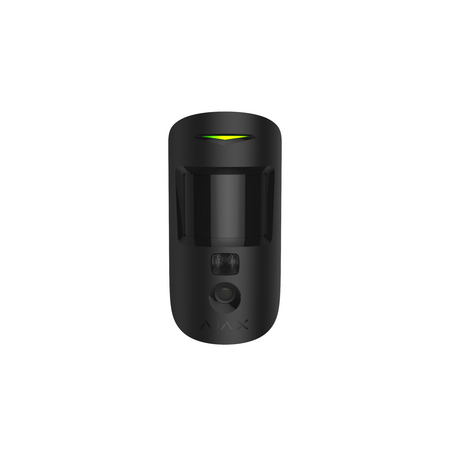

AJAX MotionCam Wireless PIR with Camera | Photo Verification | 12m Detection Range | IP50 Rated | by AJAX
AJAX MotionCam Wireless PIR with Camera offers reliable motion detection with photo verification, making it ideal for residential and commercial security. With a detection range of up to 12 meters and the ability to capture up to 5 photos per alarm, this device ensures you never miss an event. Its smart detection algorithm minimizes false alarms, while the infrared backlight allows for night shooting, providing peace of mind around the clock.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionCam Wireless PIR with Camera | Photo Verification | 12m Detection Range | IP50 Rated | by AJAX
Brand: AJAX
SKU: 30651.23.BL3
Alternatively Known As: Wireless Motion Detector with Camera, PIR Motion Sensor with Photo Verification, AJAX Motion Sensor Camera
Technical Specifications
- Sensitive element: PIR sensor
- Motion detection distance: up to 12 m (installed at 2.4 m height)
- Motion detection angle: horizontal 88.5°, vertical 80°
- Motion detection speed: 0.3 to 2 m/s
- Image resolution: up to 640 × 480 pixels
- Number of photos per alarm: up to 5
- Infrared backlight for night shooting: Yes
- Compatibility with radio signal range extenders: ReX 2
- Sensitivity levels: 3
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention: SmartDetect software algorithm
- Temperature compensation: effective from −10 °C to +40 °C
- Wireless communication range: up to 1700 m
- Battery type: 2 × CR123A
- Calculated battery life: up to 4 years
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50
- Dimensions (H x L x W): 135mm x 60mm x 70mm
- Weight: 0.167 kg
Key Features
- Wireless motion detector with photo camera for alarm verification
- Camera activates only upon motion detection alarm
- Encrypted photo capture and transmission
- Adjustable image resolution up to 640 × 480 pixels
- Two specialized radio protocols: Jeweller for alarms and Wings for image delivery
- First photo delivered within 9 seconds of motion detection
- Operating distance up to 1700 meters from hub
- Up to 4 years battery life on pre-installed batteries
- Pet immunity for animals up to 20 kg and 50 cm height
- SmartDetect software algorithm for false alarm prevention
- Infrared backlight for shooting in the dark
Professional Installation Requirements
- Professional installation by a qualified security technician or electrician is recommended to ensure optimal placement and reliable wireless communication.
Applications
- Residential security monitoring
- Commercial property surveillance
- Remote area motion detection
- Critical area visual control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life reduces battery waste and replacement frequency
- Wireless design minimizes installation impact on building structure
Warranty Information
24 months warranty.
Available Now
The AJAX MotionCam Wireless PIR with Camera Black is available for immediate purchase, ideal for residential and commercial security applications requiring reliable motion detection with photo verification.
