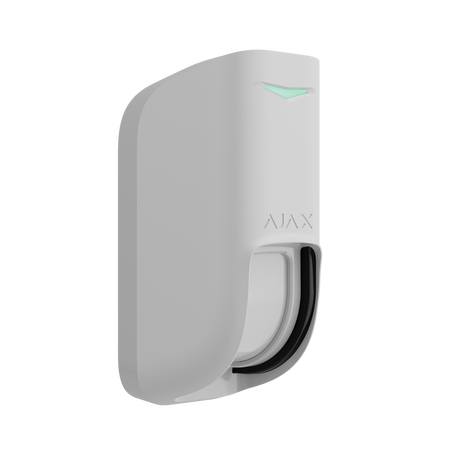

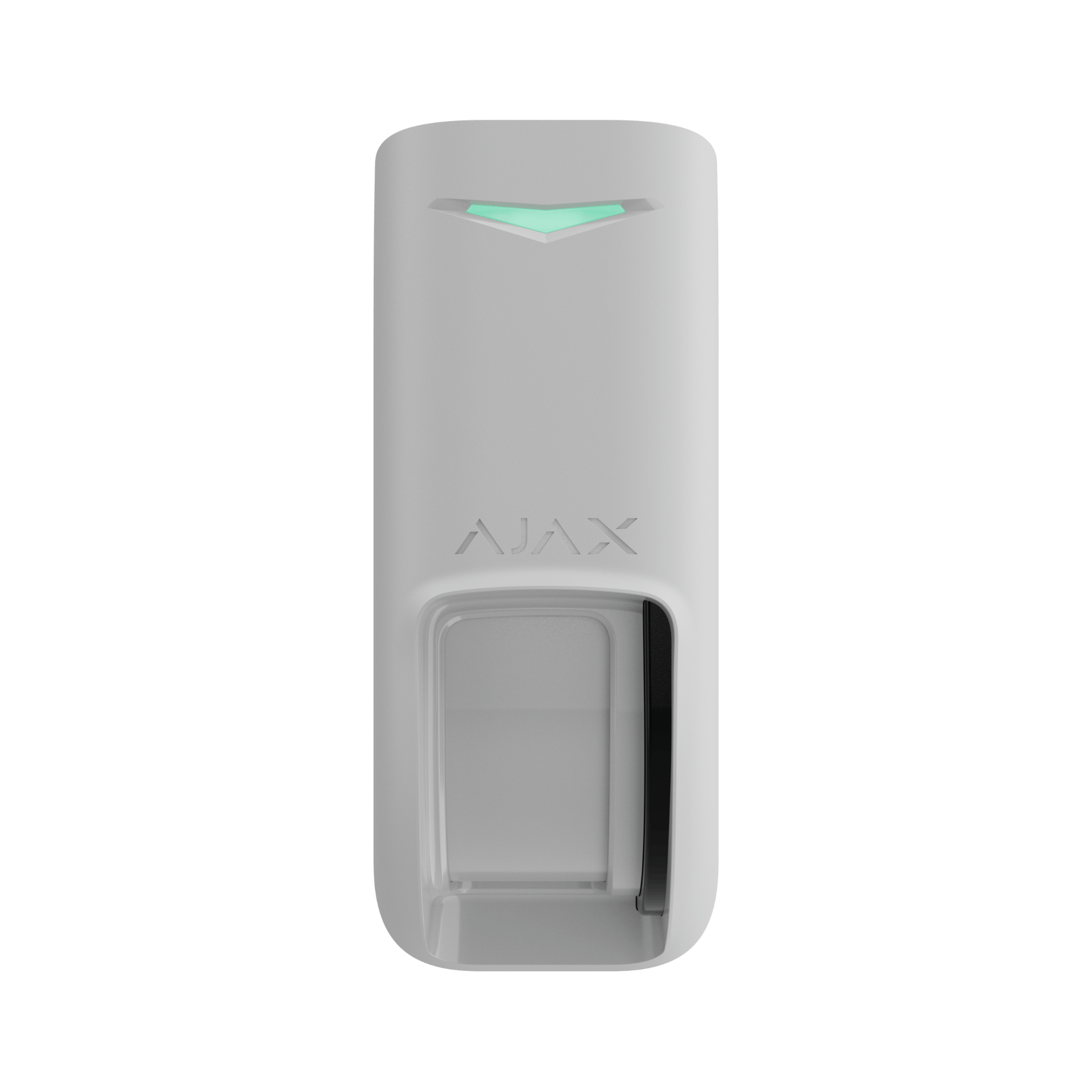

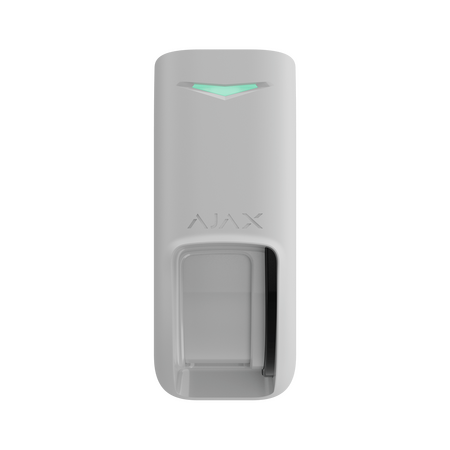

AJAX MotionProtect Curtain Outdoor | Dual Motion Detection | Pet Immunity | IP55 Rated | by AJAX
AJAX MotionProtect Curtain Outdoor is designed for effective perimeter security, featuring dual motion detection technology with 2 PIR sensors and 1 K-band microwave sensor. With a detection range of up to 12 meters and pet immunity for animals up to 100 cm tall, this outdoor motion sensor is perfect for residential and commercial properties. Its IP55 rating ensures durability in outdoor conditions, while the SmartDetect algorithm minimizes false alarms, making it a reliable choice for security systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionProtect Curtain Outdoor | Dual Motion Detection | Pet Immunity | IP55 Rated | by AJAX
Brand: AJAX
SKU: 107870.289.WH3
Alternatively Known As: AJAX Outdoor Curtain Motion Detector, AJAX MotionProtect Curtain, Outdoor PIR Motion Sensor with Pet Immunity
Technical Specifications
- Sensitive element: 2 x PIR sensor and 1 x K-band microwave sensor
- Motion detection distance: up to 8 - 12 m (installed at 1 - 2.4 m height)
- Motion detection angle: horizontal 8°, vertical 85°/75°/15° depending on installation height
- Motion detection speed: 0.3 to 2 m/s
- Sensitivity: 3 levels adjustable via app
- Pet immunity: ignores animals up to 100 cm tall
- False alarm prevention: Dual motion detection technology with SmartDetect algorithm
- Temperature compensation: effective from −25 °C to +60 °C
- Wireless communication range: up to 1700 m
- Battery: 2 × CR123A pre-installed
- Battery life: up to 3 years
- Operating temperature range: −25 °C to +60 °C
- Operating humidity: up to 95%
- Protection class: IP55
- Dimensions (H x L x W): 155mm x 85mm x 77mm
- Weight: 0.3 kg
Key Features
- Dual motion detection technology with 2 PIR sensors and 1 Ka-band microwave sensor
- Detection range adjustable up to 12 meters with pet immunity mode for animals up to 100 cm tall
- SmartDetect software algorithm filters false alarms caused by thermal noise, animals, or plants
- Temperature compensation ensures effective detection from −25 °C to +60 °C
- Wireless communication range up to 1700 meters
- IP55 rated for outdoor protection
- Pre-installed batteries with up to 3 years of stable performance
Professional Installation Requirements
- Professional installation is recommended to ensure the detector is mounted perpendicular to the ground and aligned correctly for optimal detection and minimal false alarms.
Applications
- Perimeter security for residential and commercial properties
- Outdoor motion detection for doors and windows
- Security systems requiring pet immunity and false alarm reduction
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life reduces waste and frequency of replacements
- Wireless design minimizes installation impact on environment
- Energy-efficient sensors reduce power consumption
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MOTIONPROTECT CURTAIN OUTDOOR WHITE 2Y by AJAX is available for immediate purchase, ideal for outdoor perimeter security in residential and commercial applications.
