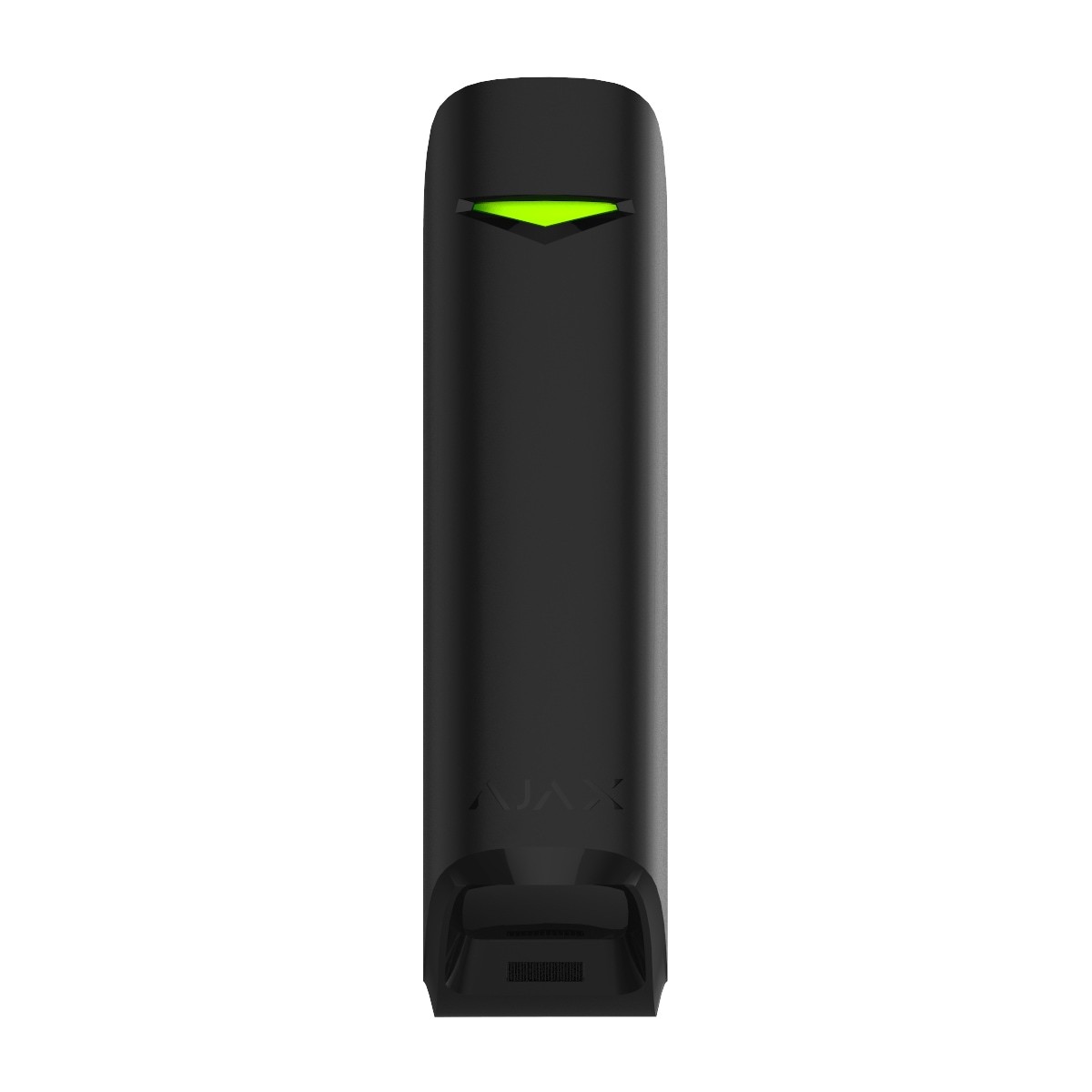

AJAX MotionProtect Curtain Wireless Sensor | Dual PIR Sensors | 15m Detection Distance | IP54 Rated | by AJAX
AJAX MotionProtect Curtain Wireless Sensor features dual PIR sensors for enhanced motion detection, with a detection distance of up to 15 meters. Ideal for residential and commercial security applications, this sensor minimizes false alarms with correlation signal processing and offers a wireless range of up to 1700 meters. With a long battery life of up to 3 years, it’s perfect for narrow entry points and perimeter protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionProtect Curtain Wireless Sensor | Dual PIR Sensors | 15m Detection Distance | IP54 Rated | by AJAX
Brand: AJAX
SKU: 30656.36.BL3
Alternatively Known As: Wireless Curtain Motion Detector, AJAX Curtain Sensor, PIR Curtain Motion Sensor
Technical Specifications
- Sensitive Element: Dual PIR sensors
- Motion Detection Distance: Up to 15/13/11 m (8/7/6 m with Correlation Signal Processing)
- Motion Detection Angle: Horizontal 6°, Vertical 90°
- Motion Detection Speed: 0.3 to 2 m/s
- Sensitivity Levels: 3
- False Alarm Prevention: Correlation Signal Processing
- Wireless Communication Range: Up to 1700 m
- Battery: 1 × CR123A
- Calculated Battery Life: Up to 3 years
- Operating Temperature Range: -10 °C to +40 °C
- Operating Humidity: Up to 75%
- Protection Class: IP54
- Dimensions (H x L x W): 134mm x 34mm x 44mm
- Weight: 0.118 kg
Key Features
- Dual PIR sensors for enhanced motion detection
- Up to 15 meters detection distance with adjustable sensitivity

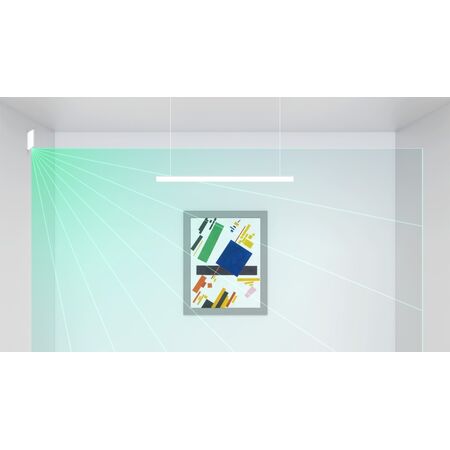

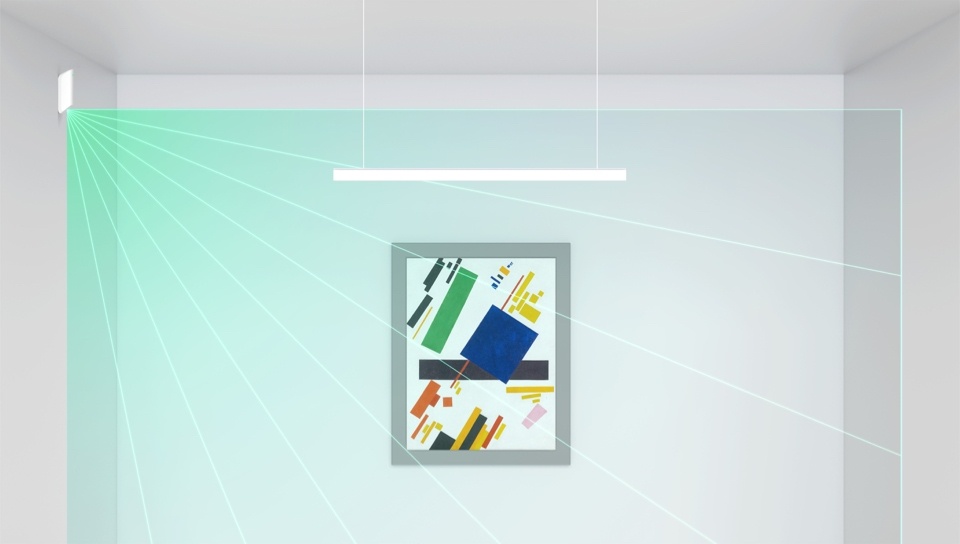

- Narrow horizontal detection angle of 6° and vertical 90° for curtain effect
- Correlation Signal Processing to reduce false alarms
- Wireless communication range up to 1700 meters
- Long battery life up to 3 years with CR123A battery
- IP54 rated for dust and water resistance
Professional Installation Requirements
- Professional installation by a qualified security technician is recommended to ensure optimal sensor placement and system integration.
Applications

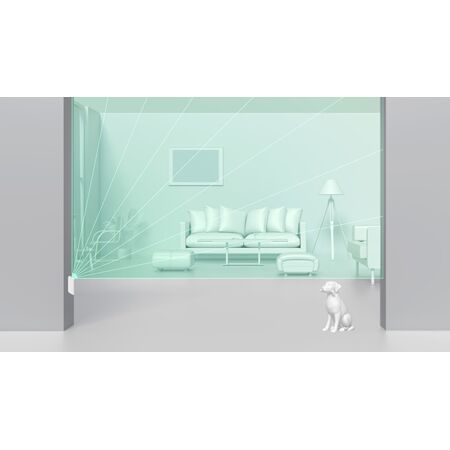

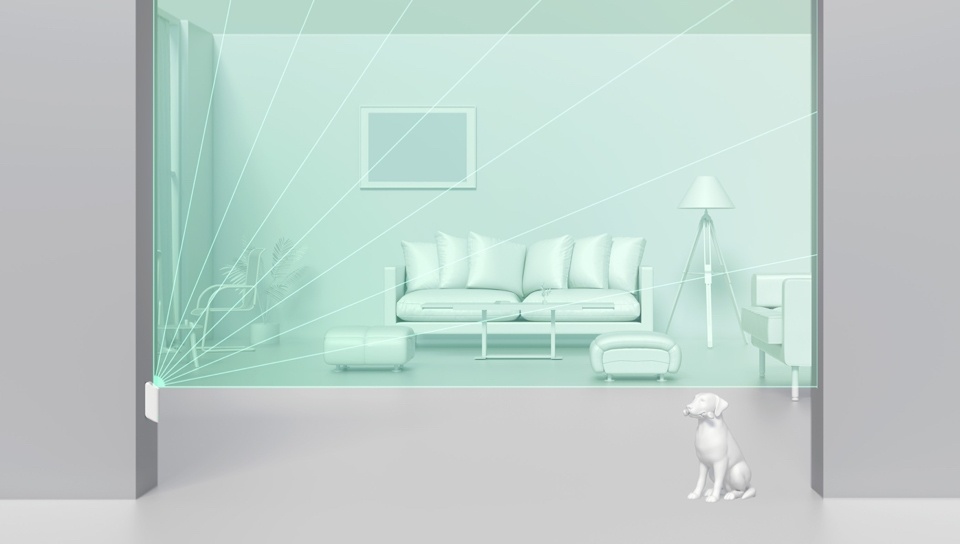

- Residential security for windows and narrow entry points
- Commercial premises requiring focused motion detection

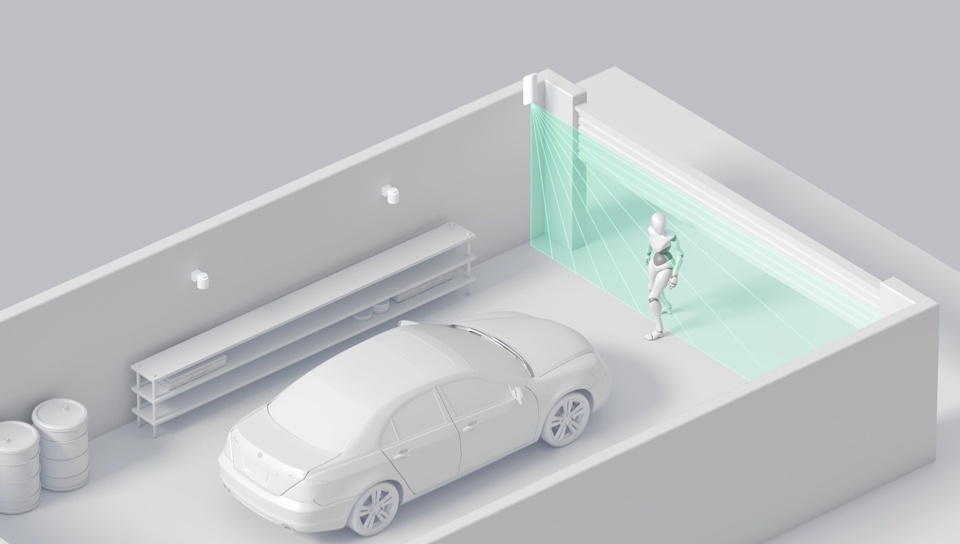

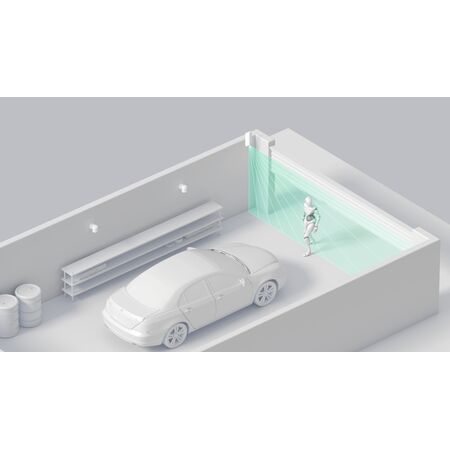

- Perimeter protection for facilities with narrow detection zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life reduces battery waste and replacement frequency
- Wireless design minimizes installation impact and material use
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MotionProtect Curtain Wireless Black is available for immediate purchase, ideal for residential and commercial security applications requiring precise motion detection.
