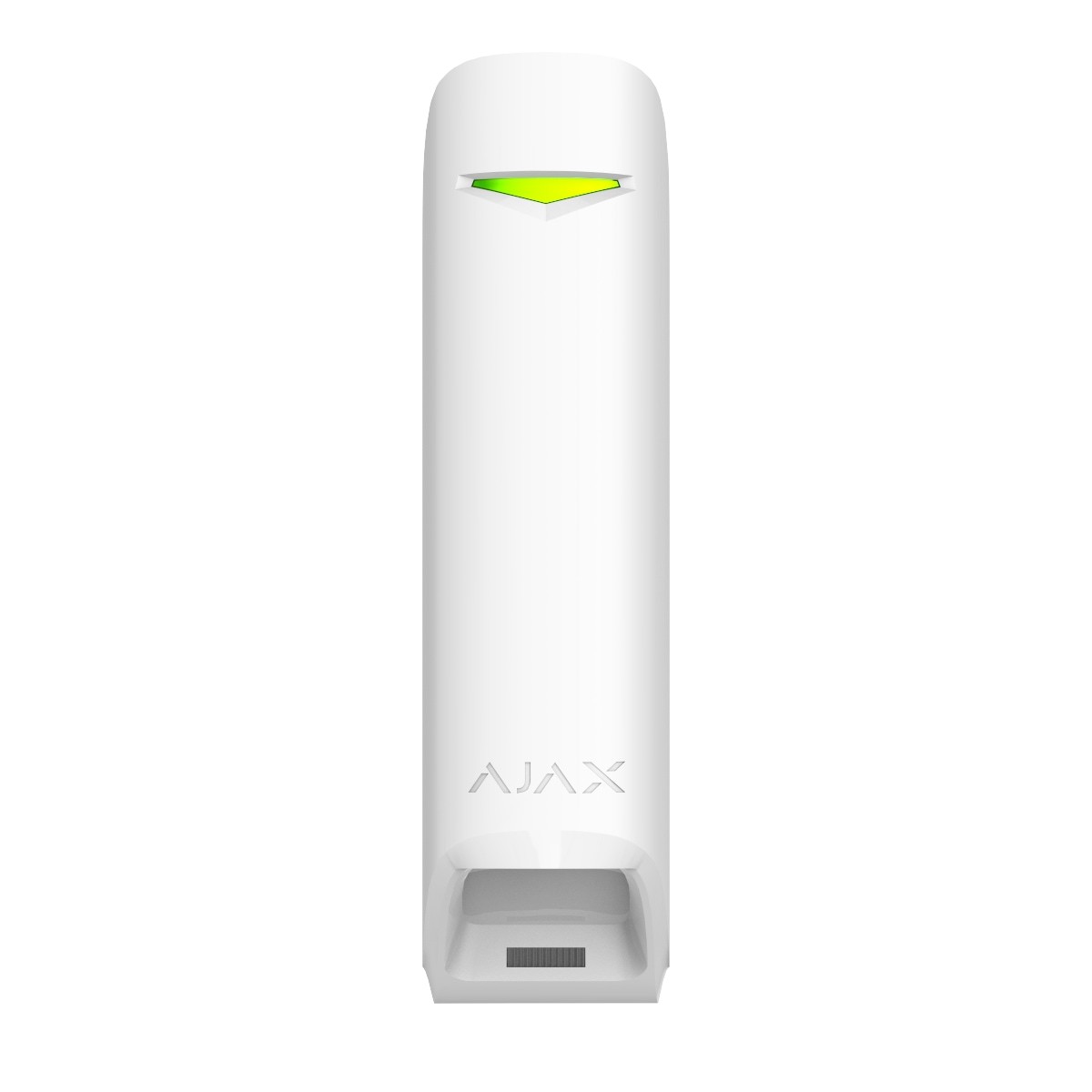

AJAX MotionProtect Curtain Wireless Sensor | Dual PIR Sensors | 15m Detection Range | IP54 Rated | by AJAX
AJAX MotionProtect Curtain Wireless Sensor features dual PIR sensors for precise motion detection, with a range of up to 15 meters and adjustable sensitivity. Ideal for residential and commercial security, this sensor is designed for narrow zone monitoring, ensuring reliable performance with false alarm prevention technology. With a wireless communication range of up to 1700 meters and an IP54 rating, it’s perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionProtect Curtain Wireless Sensor | Dual PIR Sensors | 15m Detection Range | IP54 Rated | by AJAX
Brand: AJAX
SKU: 30657.36.WH3
Alternatively Known As: Wireless Curtain Motion Detector, AJAX Curtain Sensor, PIR Curtain Motion Sensor
Technical Specifications
- Sensitive element: 2 PIR sensors
- Motion detection distance: Up to 15/13/11 m (8/7/6 m with Correlation Signal Processing)
- Motion detection angle: Horizontal 6°, Vertical 90°
- Motion detection speed: 0.3 to 2 m/s
- Sensitivity levels: 3
- False alarm prevention: Correlation Signal Processing
- Wireless communication range: Up to 1700 m
- Battery: 1 × CR123A
- Calculated battery life: Up to 3 years
- Operating temperature range: -10 °C to +40 °C
- Operating humidity: Up to 75%
- Protection class: IP54
- Dimensions (H x L x W): 134mm x 34mm x 44mm
- Weight: 0.118 kg
Key Features
- Dual PIR sensors for precise motion detection
- Up to 15 meters detection range with adjustable sensitivity
- Narrow curtain detection angle: horizontal 6°, vertical 90°
- False alarm prevention via Correlation Signal Processing
- Wireless communication range up to 1700 meters
- IP54 rated for dust and water resistance
- Long battery life up to 3 years with CR123A battery
Professional Installation Requirements
- Professional installation by a qualified security technician or electrician is recommended to ensure optimal sensor placement and system integration.
Applications
- Residential security: window and door protection
- Commercial security: perimeter and restricted area monitoring
- Outdoor and indoor use for motion detection in narrow zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life reduces battery waste and replacement frequency
- Wireless design minimizes installation impact and material use
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MotionProtect Curtain Wireless White is available for immediate purchase, ideal for enhancing security in residential and commercial properties.
