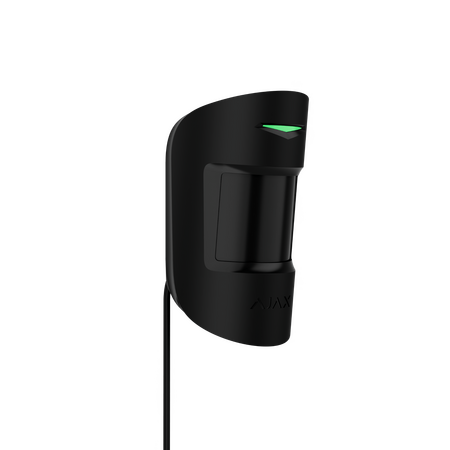

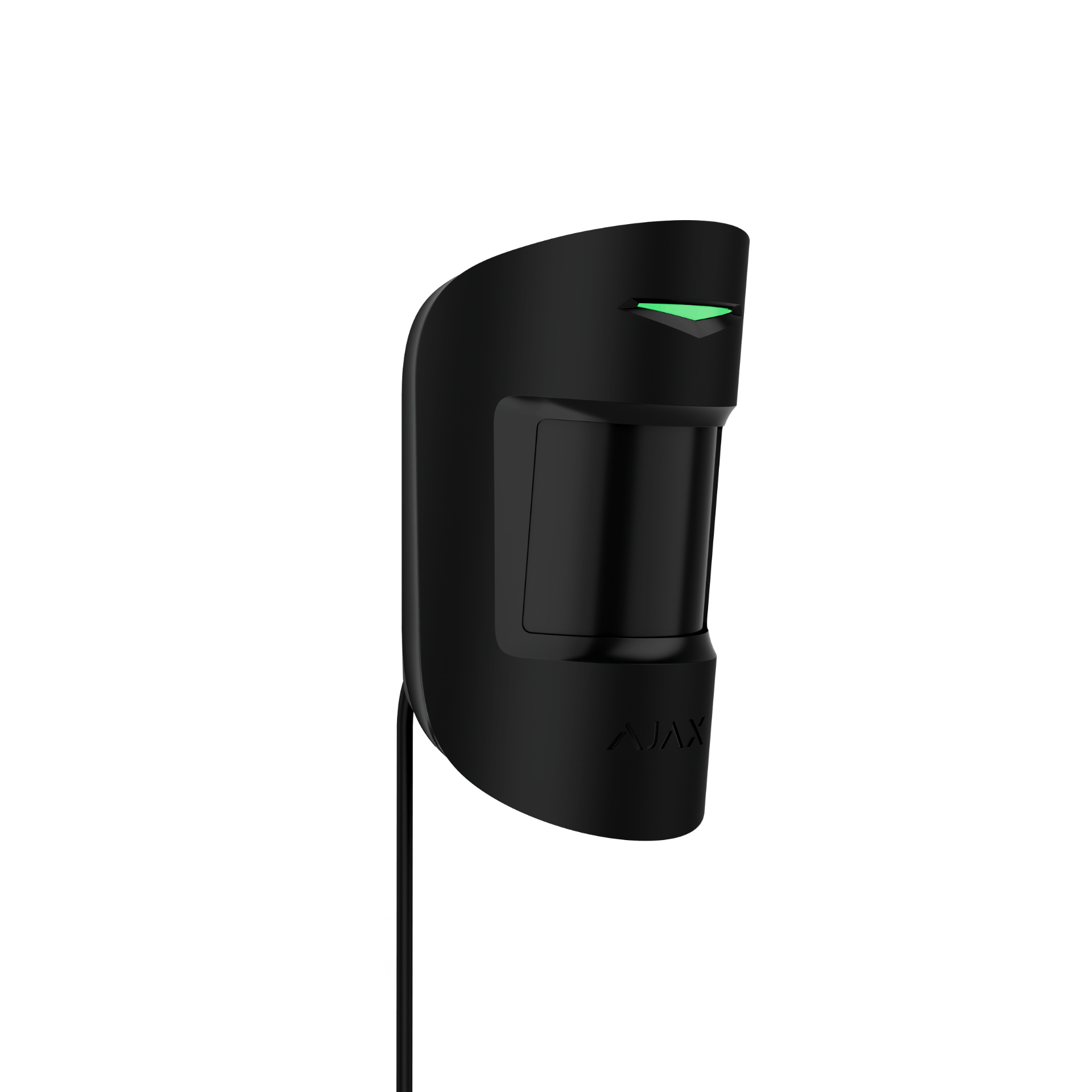

AJAX MotionProtect Fibra Black | 12m Detection Range | IP50 & IK04 Rated | by AJAX
AJAX MotionProtect Fibra Black is a cutting-edge PIR motion sensor designed for reliable security applications. With a detection range of up to 12 meters and an adjustable sensitivity of three levels, it ensures optimal performance in various environments. Ideal for residential, commercial, and industrial use, this sensor operates effectively in temperatures from -10°C to +40°C, providing peace of mind with its durable IP50 and IK04 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionProtect Fibra Black | 12m Detection Range | IP50 & IK04 Rated | by AJAX
Brand: AJAX
SKU: 44404.09.BL1
Alternatively Known As: AJAX Fibra Motion Detector, AJAX MotionProtect Fibra Sensor, PIR Motion Sensor Black
Technical Specifications
- Sensing Element: 1 × PIR sensor

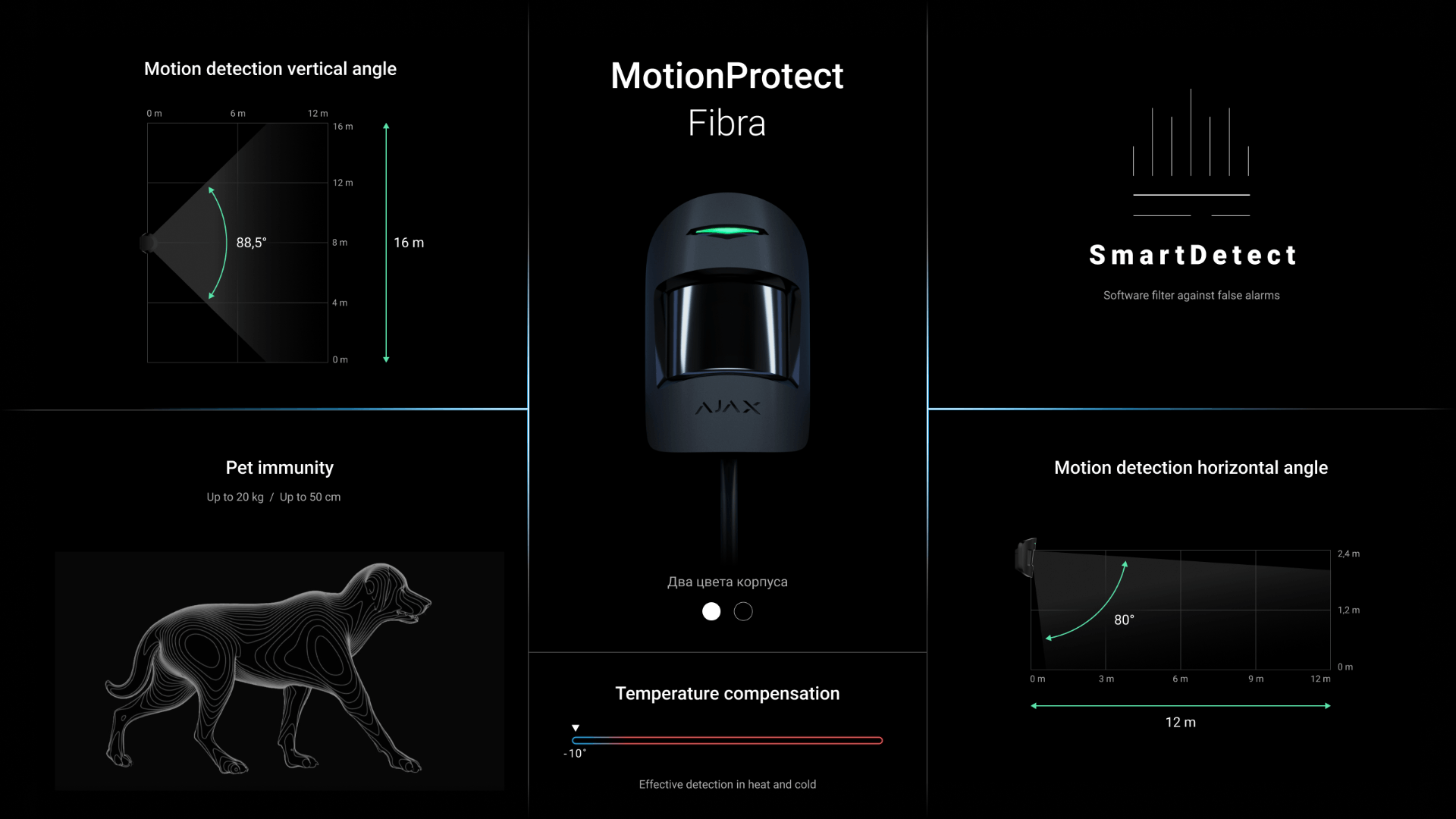

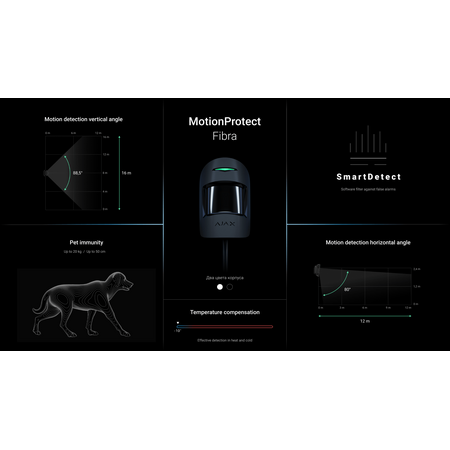

- Motion Detection Distance: up to 12 meters (installed at 2.4 meters height)
- Motion Detection Angles: horizontal — 88.5°
- Motion Detection Speed: from 0.3 to 2.0 m/s
- Sensitivity: 3 levels
- Pet Immunity: up to 20 kg, up to 50 cm height
- Temperature Compensation: Effective detection within −10°C to +40°C
- Power Supply: Fibra line power supply (5−30 V⎓, up to 25 mW)
- Line Connection: 4-core cable
- Fibra Line Length: up to 2,000 meters (using U/UTP cat.5 twisted pair)
- Operating Temperature Range: from −10 °C to +40 °C
- Operating Humidity: up to 75%
- Protection Class: IP50, IK04
- Dimensions (H x L x W): 110mm x 50mm x 65mm
- Weight: 0.075 kg
Key Features
- 1 × PIR sensor for reliable motion detection
- Motion detection distance up to 12 meters at 2.4 meters height
- Horizontal detection angle of 88.5°
- Adjustable sensitivity with 3 levels
- Pet immunity for animals up to 20 kg and 50 cm height
- Effective motion detection in temperatures from −10°C to +40°C
- Fibra line power supply with low power consumption
- Supports line connection via 4-core cable
- Fibra line length up to 2,000 meters using U/UTP cat.5 twisted pair
- Protection class IP50 and IK04 for durability
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper integration and optimal performance.
Applications
- Security systems for residential properties
- Commercial building intrusion detection
- Industrial facility motion monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage and environmental impact
- Durable design minimizes waste through extended product life
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MOTIONPROTECT FIBRA BLACK 2YR is available for immediate purchase, ideal for enhancing security in residential, commercial, and industrial environments.
