AJAX MULTIRELAY FIBRA | 4 Relay Outputs | Bistable & Pulse Modes | State Stability Function | by Dicker Data
AJAX MULTIRELAY FIBRA is designed for seamless control of electrical appliances with four relay outputs and configurable bistable or pulse modes. Ideal for security and automation systems, it maintains relay state after power outages, ensuring reliability. With a Fibra line connection supporting up to 2,000 meters, this module is perfect for both residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MULTIRELAY FIBRA | 4 Relay Outputs | Bistable & Pulse Modes | State Stability Function | by Dicker Data
Brand: Dicker Data
SKU: 64932.183.NC1
Alternatively Known As: Ajax Fibra Multi Relay, Ajax 4-Channel Relay Module, Ajax Relay Controller
Technical Specifications

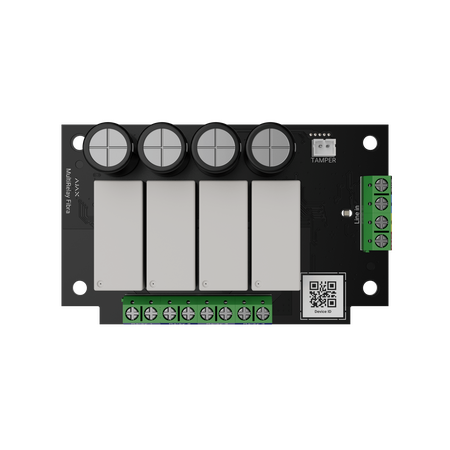

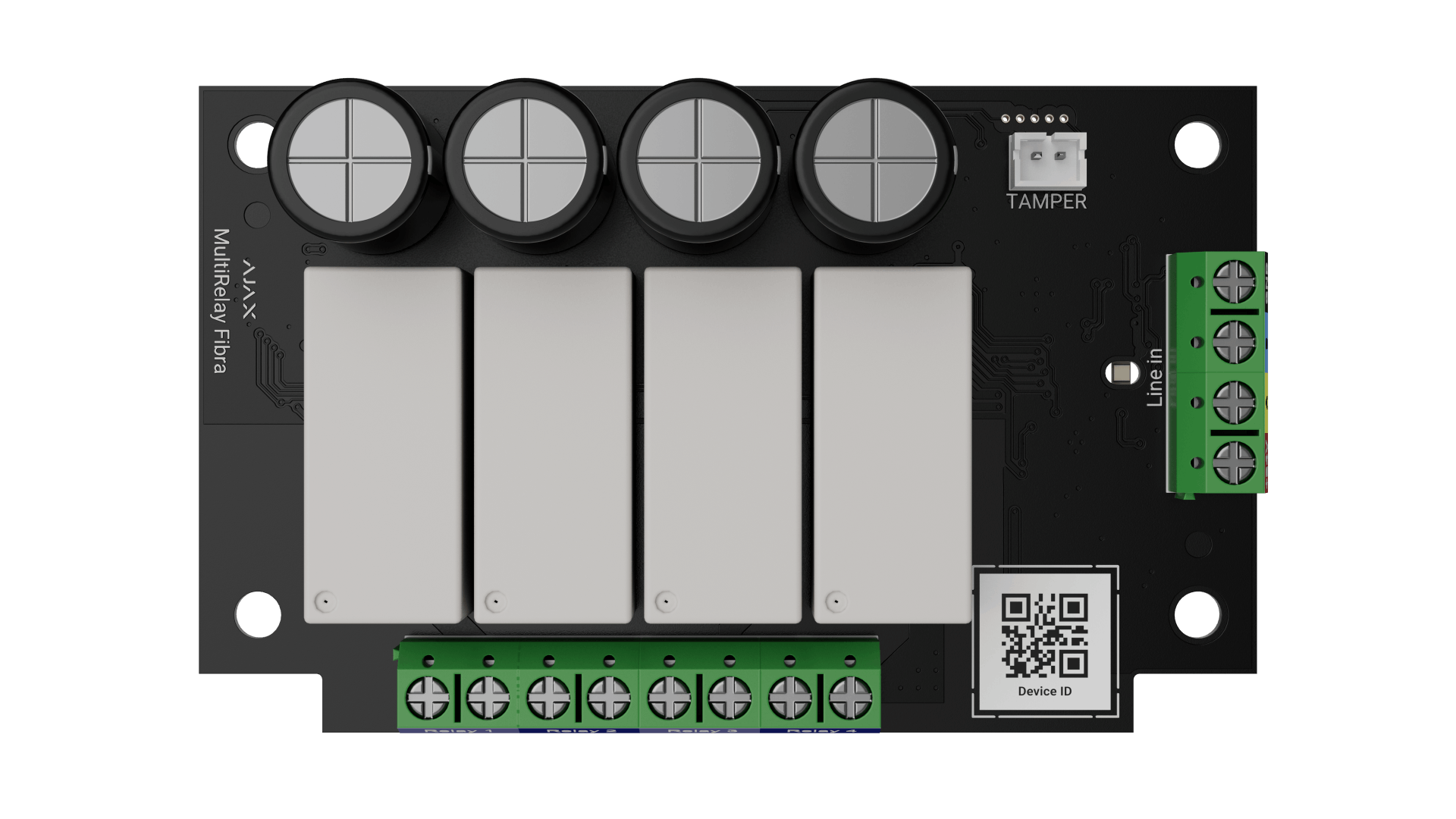

- Number of relays: 4 with dry contact outputs
- Maximum current: up to 5 A at 30 V⎓, up to 10 A at 110–230 V~ (maximum resistive load per relay)
- Relay modes: bistable or pulse, adjustable separately for each relay
- Operating time (pulse): from 1 second to 2 hours
- State stability: maintains relay state after power outage if enabled
- Power supply: Fibra line power supply (8.5−30 V⎓, up to 185 mW)
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range: from −10 °C to +40 °C
- Operating humidity: up to 75%
- Dimensions (H x L x W): 30mm x 55mm x 90mm
- Weight: 0.084 kg
Key Features
- Four relay outputs with dry contact for electrical appliance control

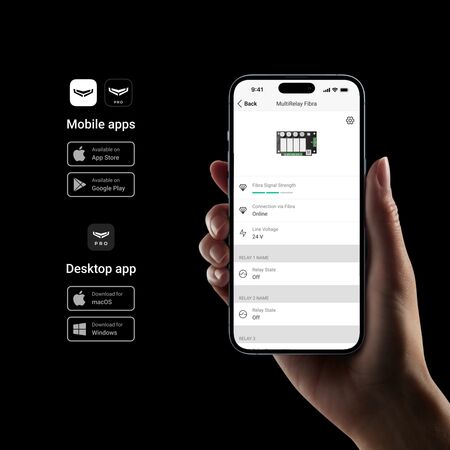

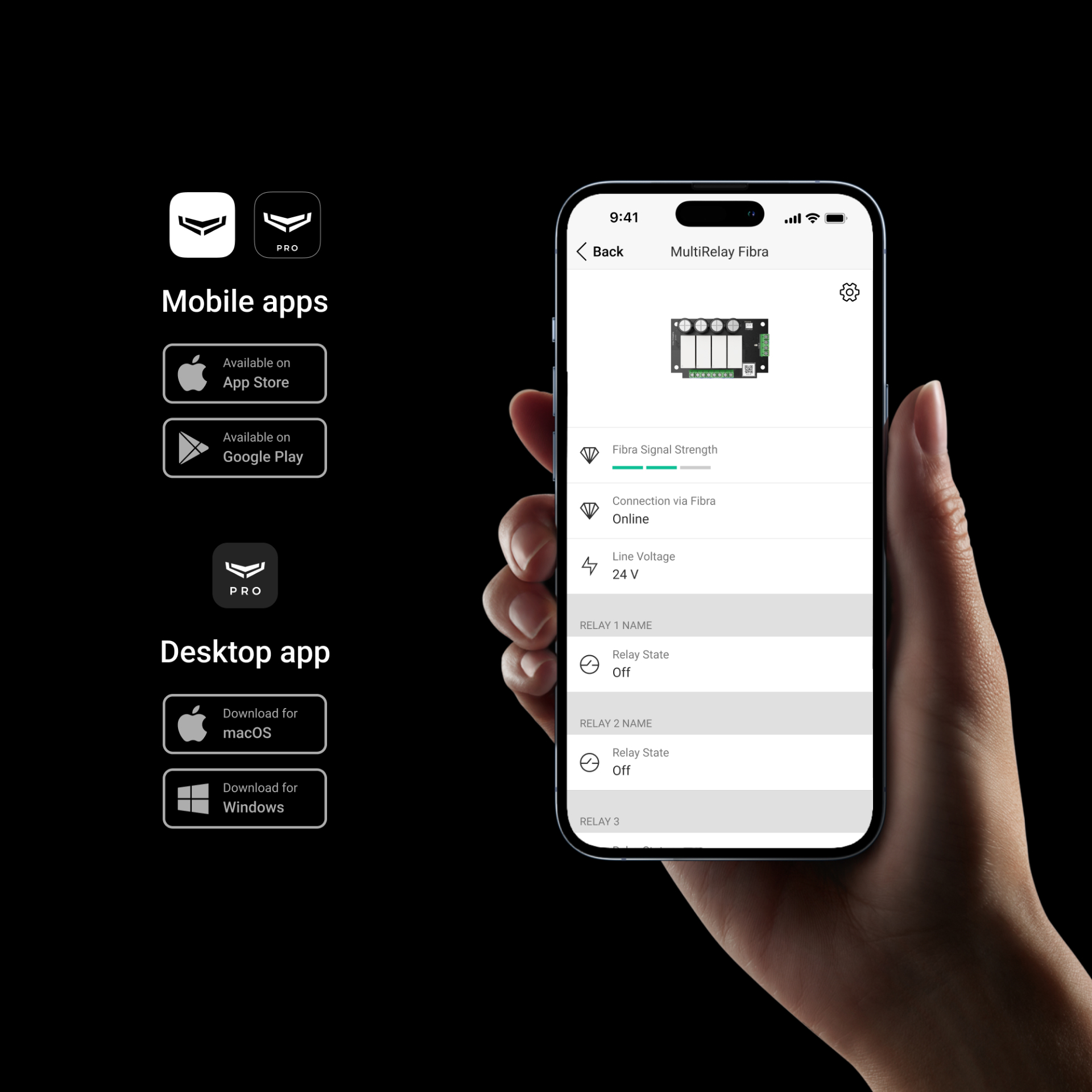

- Relay modes configurable as bistable or pulse via Ajax apps
- State stability function maintains relay state after power outages
- Supports Fibra line power supply with low power consumption
- Long Fibra line connection up to 2,000 meters using U/UTP cat.5 twisted pair
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with Ajax security systems and electrical relay wiring to ensure safety and proper operation.
Applications
- Control of electrical appliances via relay outputs in security and automation systems
- Suitable for integration with Ajax security systems using Fibra line connection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient Fibra line power supply
- Enables smart control of electrical devices reducing unnecessary energy use
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX MULTIRELAY FIBRA 2YR by Dicker Data is available now for immediate purchase. Ideal for security system integrations and electrical appliance control in residential and commercial settings.
