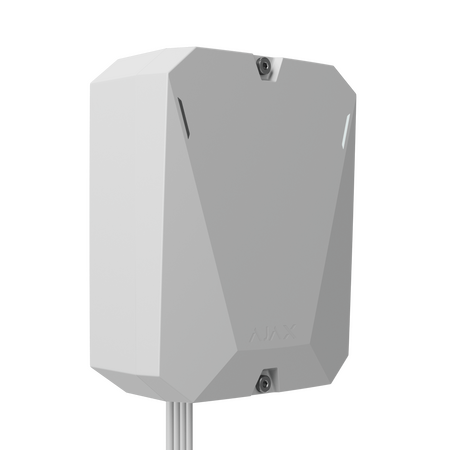

AJAX Multitransmitter Fibra | 18 Wired Zones | Fibra Communication Technology | Backup Power Supply | by AJAX
AJAX Multitransmitter Fibra enhances your security system with support for 18 wired zones and reliable Fibra communication technology. Ideal for both residential and commercial alarm systems, it features a backup power supply that lasts up to 30 hours, ensuring continuous operation. Perfect for integrating multiple wired zones and fire detection devices, this multitransmitter is designed for professional installation to meet safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Multitransmitter Fibra | 18 Wired Zones | Fibra Communication Technology | Backup Power Supply | by AJAX
Brand: AJAX
SKU: 99572.62.WH1
Alternatively Known As: AJAX Fibra Multitransmitter, AJAX Security Multitransmitter, AJAX Wired Zone Expander
Technical Specifications
- Number of zones: 18 wired zones
- Type of connection: NC, NO, EOL, 2EOL, 3EOL
- EOL resistance: 1 kΩ to 15 kΩ per resistor, up to 30 kΩ total
- Cable length: up to 400 m with 0.22 mm² copper-clad aluminium conductor
- Operation mode: pulse, bistable
- Event types: 15 event types of wired devices
- Multitransmitter power supply: 100–240 V~, 50/60 Hz
- Backup power supply: 12 V⎓, up to 7 Ah capacity, 30 hours full charge cycle
- Connected devices power supply: 10.5–15 V⎓, max 1 A total current
- Power lines: Three lines - one for fire detectors, two for other devices
- Communication: Fibra communication technology
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters with U/UTP cat.5 twisted pair
- Operating temperature: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP40
- Dimensions (H x L x W): 100mm x 238mm x 192mm
- Weight: 0.8 kg
Key Features
- Supports 18 wired zones
- Compatible with NC, NO, EOL, 2EOL, 3EOL connection types
- Fibra communication technology for reliable data transmission
- Three power lines for fire detectors and other devices
- Backup power supply with up to 30 hours full charge cycle
- Supports up to 15 event types of wired devices
- Long cable length support: up to 400 m for signal cable, up to 2000 m for Fibra line
Professional Installation Requirements
- Installation should be performed by a qualified security system technician to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Security systems requiring integration of multiple wired zones
- Commercial and residential alarm systems
- Fire detection and safety device integration
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient backup battery system
- Supports long cable runs reducing need for additional repeaters or devices
Warranty Information
24 months warranty.
Available Now
The AJAX Multitransmitter Fibra White 2YR is available for immediate purchase, ideal for enhancing security system capabilities in residential and commercial applications.
