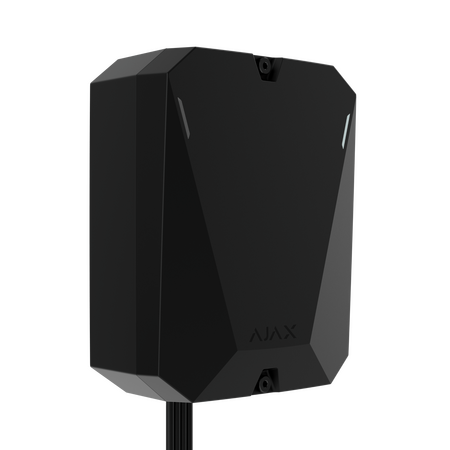

AJAX Multitransmitter Fibra Black | 18 Wired Zones | NC, NO, EOL Compatibility | IP40 Rated | by AJAX

BRAND: AJAX
SKU: 99571.62.BL1
$322.20 List price: $390.00
+ −
30 Days Return Delivery Options
AJAX Multitransmitter Fibra Black supports 18 wired zones and is compatible with NC, NO, EOL, 2EOL, and 3EOL connections, making it ideal for integrating multiple wired zones in security systems. With a robust backup power supply and Fibra communication technology, it ensures reliable operation in both commercial and residential alarm systems.

Product Name/Title: AJAX Multitransmitter Fibra Black | 18 Wired Zones | NC, NO, EOL Compatibility | IP40 Rated | by AJAX

Brand: AJAX

SKU: 99571.62.BL1

Alternatively Known As: AJAX Fibra Multitransmitter, AJAX Security Multitransmitter, AJAX Wired Zone Expander

Technical Specifications
  • Number of zones: 18 wired zones
  • Type of connection: NC, NO, EOL, 2EOL, 3EOL
  • EOL resistance: 1 kΩ to 15 kΩ per resistor, up to 30 kΩ total
  • Cable length: up to 400 m with 0.22 mm² copper-clad aluminium conductor
  • Operation mode: pulse, bistable
  • Event types: 15 event types of wired devices
  • Multitransmitter power supply: 100–240 V~, 50/60 Hz
  • Backup power supply: 12 V⎓, up to 7 Ah capacity, 30 hours full charge cycle
  • Connected devices power supply: 10.5–15 V⎓, max 1 A total current
  • Power lines: Three lines powered by MultiTransmitter (one for fire detectors, two for other devices)
  • Communication: Fibra communication technology
  • Line connection: 4-core cable
  • Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
  • Operating temperature range: −10 °C to +40 °C
  • Operating humidity: up to 75%
  • Protection class: IP40
  • Dimensions (H x L x W): 100mm x 192mm x 238mm
  • Weight: 0.8 kg
Key Features
  • Supports 18 wired zones
  • Compatible with NC, NO, EOL, 2EOL, 3EOL connections
  • EOL resistance from 1 kΩ to 15 kΩ per resistor, up to 30 kΩ total
  • Cable length up to 400 m with 0.22 mm² copper-clad aluminium conductor
  • Operation modes: pulse and bistable
  • Supports 15 event types of wired devices
  • Power supply: 100–240 V~, 50/60 Hz
  • Backup power supply: 12 V⎓, up to 7 Ah capacity with up to 30 hours full charge cycle
  • Connected devices power supply: 10.5–15 V⎓, max 1 A total current
  • Three power lines powered by MultiTransmitter for fire detectors and other devices
  • Fibra communication technology with 4-core cable line connection
  • Fibra line length up to 2,000 meters using U/UTP cat.5 twisted pair
  • Operating temperature range from −10 °C to +40 °C
  • Operating humidity up to 75%
  • Protection class IP40
Professional Installation Requirements
  • Installation by a qualified security system technician or licensed electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
  • Security systems requiring integration of multiple wired zones
  • Commercial and residential alarm systems
  • Fire detection and monitoring systems
Standards & Compliance
  • AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
  • Low power consumption with efficient backup battery system
  • Durable design reduces electronic waste through extended product life
Warranty Information

24 months warranty.

Available Now

The AJAX Multitransmitter Fibra Black 2YR is available for immediate purchase, ideal for enhancing security and fire detection systems in commercial and residential applications.
