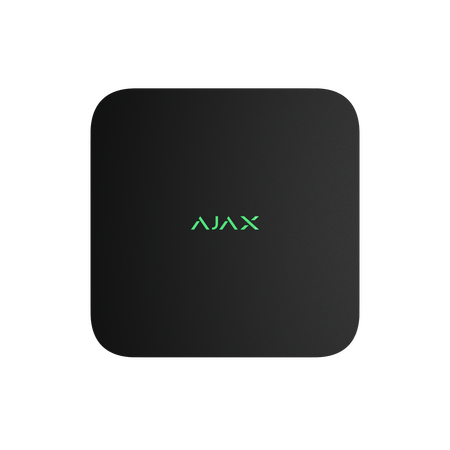

AJAX NVR 8CH H.265 ONVIF | 4K Resolution | NDAA Compliant | by AJAX
AJAX NVR 8CH H.265 ONVIF is designed for high-quality video surveillance, supporting up to 4K resolution at 25/30 FPS. Ideal for both residential and commercial properties, it integrates seamlessly with Ajax security systems, offering features like built-in motion detection and in-app video management. With NDAA compliance and support for hard drives up to 16 TB, this NVR ensures secure and efficient video storage and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX NVR 8CH H.265 ONVIF | 4K Resolution | NDAA Compliant | by AJAX
Brand: AJAX
SKU: 80217.122.BL
Alternatively Known As: Network Video Recorder, IP Camera NVR, Ajax Security NVR, NDAA Compliant NVR, 8 Channel NVR
Technical Specifications
- NVR Model: 8-channel with up to 4K resolution (25/30 FPS)
- IP Cameras: ONVIF (Profile S/T), RTSP compatible
- Storage: Supports hard drives up to 16 TB (SATA, 3.5” size), HDD not included
- Decoding Formats: H.265, H.264
- Bandwidth: Up to 100 Mbps
- Power: Operating voltage 110–240 V~, designed for indoor installation only
- Ethernet: Up to 100 Mbps
- Bluetooth: BLE frequency band 2.400–2.4835 GHz (for Ethernet setup)
- Radio Signal Power: 2.5 mW (100 mW limit)
- Motion Detection: Built-in software with option to switch between NVR or camera algorithms
- In-app Video Management: Videowall, event filters, timeline with smooth preview
- Visual Verification: Event filters for Ajax alarms
- Privacy: Access rights distribution for users and monitoring operators
- Operating Temperature Range: 0°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP20
- Dimensions (H x L x W): 47mm x 193mm x 193mm
- Weight: 0.7 kg
Key Features
- 8/16-channel NVR with up to 4K resolution at 25/30 FPS
- Supports ONVIF (Profile S/T) and RTSP protocols for IP camera compatibility
- Supports hard drives up to 16 TB (SATA, 3.5” size) - HDD not included
- H.265 and H.264 video decoding formats
- Up to 100 Mbps bandwidth and Ethernet speed
- Built-in motion detection software with option to switch between NVR or camera algorithms
- In-app video management system with videowall, event filters, and smooth timeline preview
- Visual verification of Ajax alarms with camera-triggered recording
- Privacy controls with access rights distribution for users and operators
- NDAA-compliant with components approved by the US government
- Data securely stored within the European Union complying with EU data protection standards
- Independent cybersecurity tested for safety and reliability
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration with Ajax systems and compliance with electrical safety standards.
Applications
- Video surveillance for residential and commercial properties

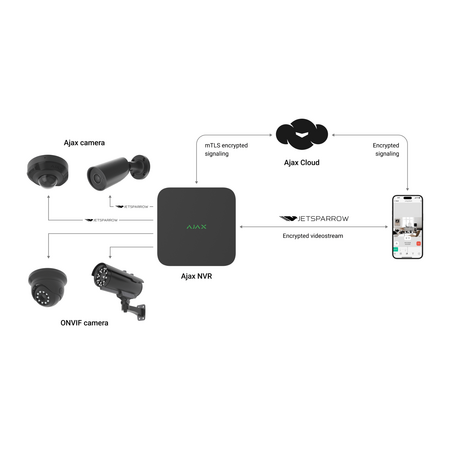

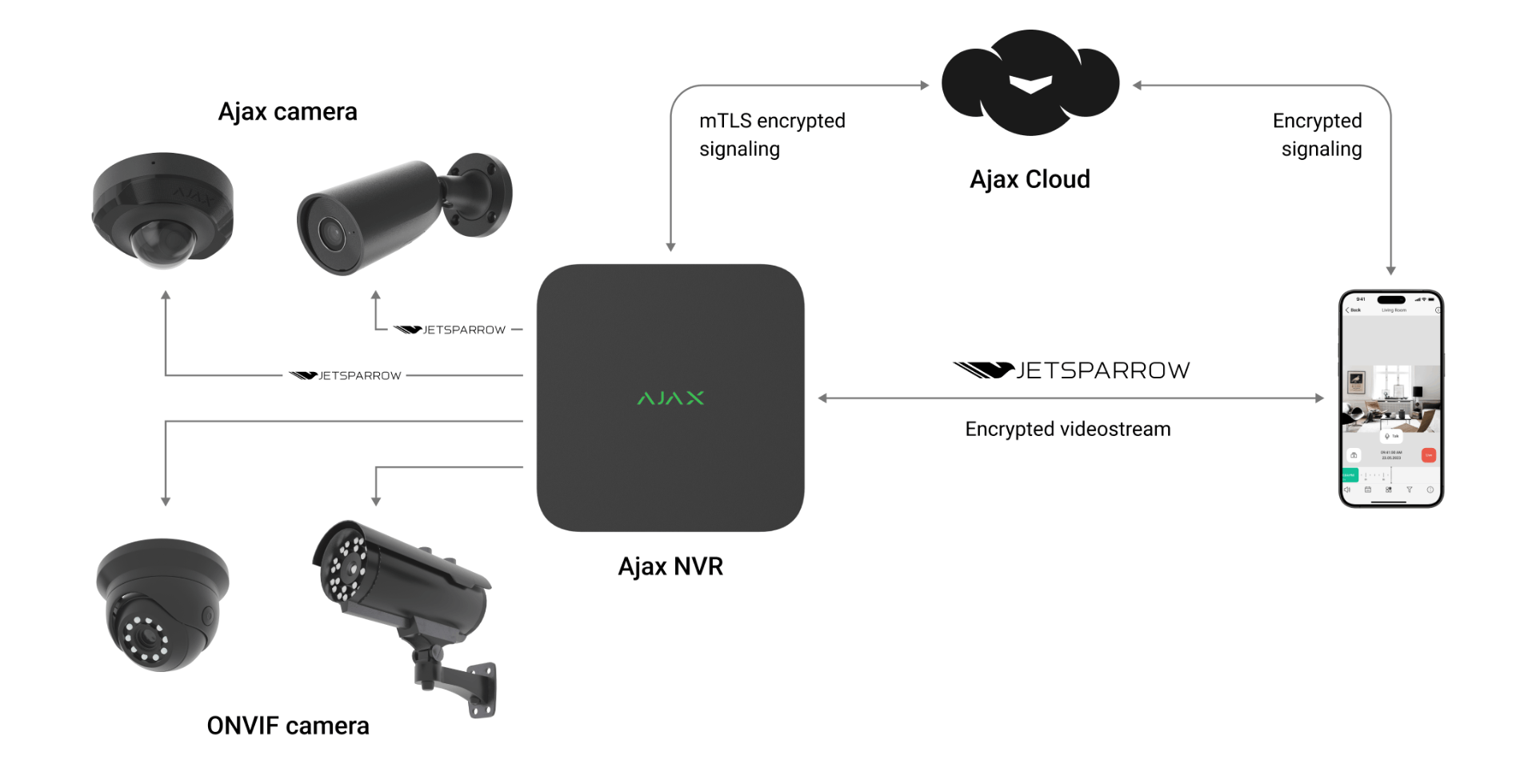

- Integration with Ajax security systems for intrusion protection and automation
- Remote video archive access and monitoring via mobile and desktop apps
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient video compression (H.265) reducing storage and bandwidth usage
- Enables remote monitoring reducing the need for physical site visits
Warranty Information
24 months warranty.
Available Now
The AJAX NVR NDAA 8CH H.265 ONVIF BLACK is available for immediate purchase, ideal for professional video surveillance and security system integration.
