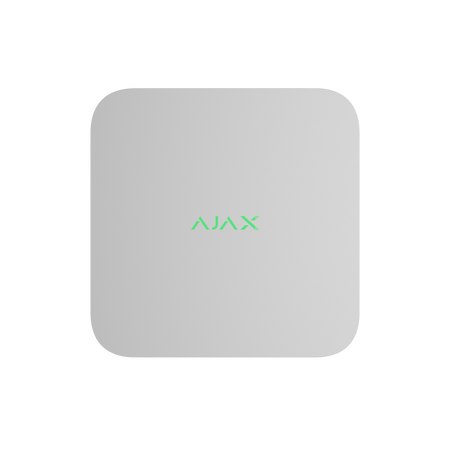

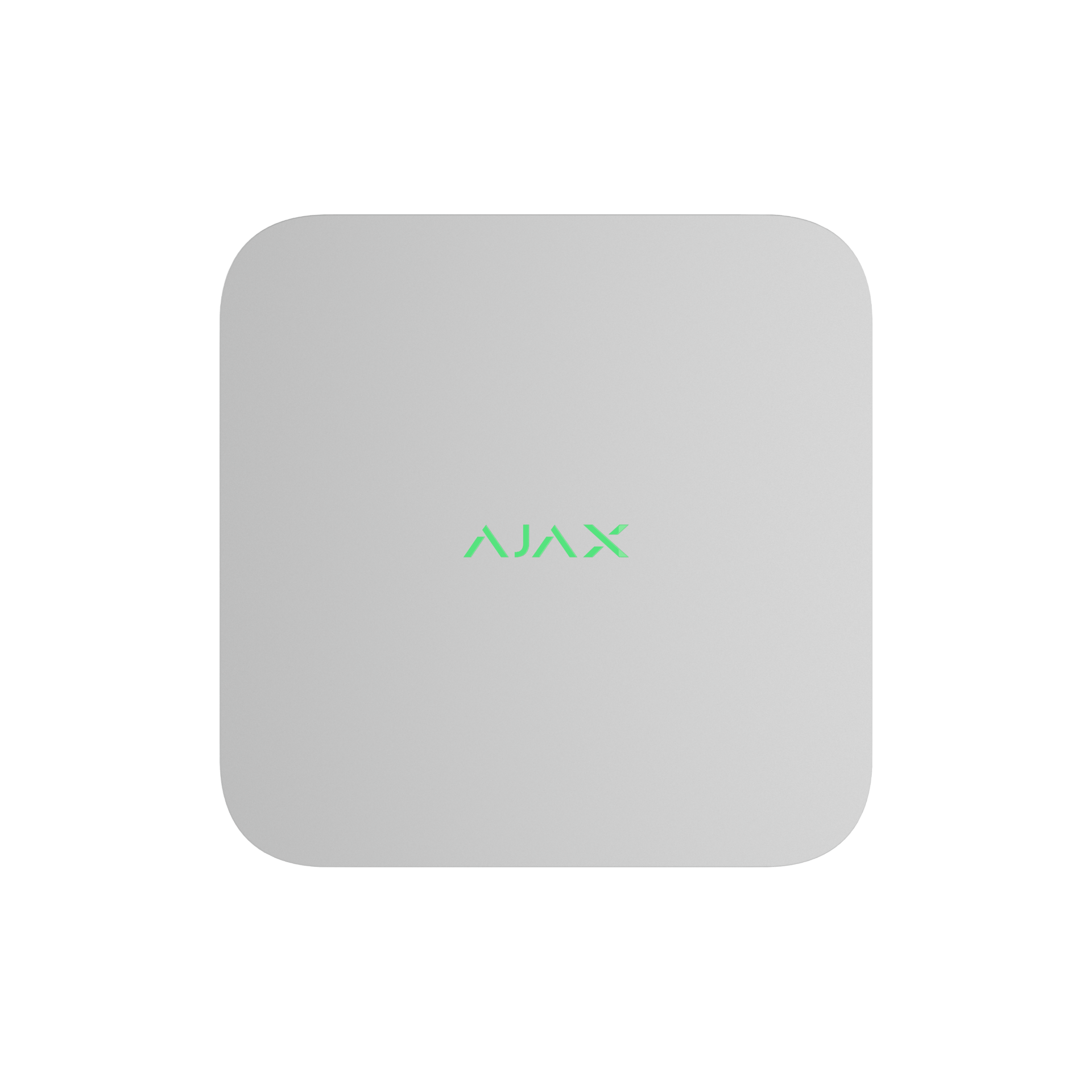

AJAX NVR NDAA 8CH H.265 ONVIF | 4K Resolution | Motion Detection | NDAA Compliant | by AJAX
AJAX NVR NDAA 8CH H.265 ONVIF is designed for professional video surveillance, supporting up to 4K resolution at 25/30 FPS. Ideal for residential and commercial properties, it integrates seamlessly with Ajax security systems and offers built-in motion detection for enhanced security. With NDAA compliance and secure data storage within the EU, this NVR ensures reliable performance and privacy controls.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX NVR NDAA 8CH H.265 ONVIF | 4K Resolution | Motion Detection | NDAA Compliant | by AJAX
Brand: AJAX
SKU: 80218.122.WH
Alternatively Known As: Network Video Recorder, IP Camera NVR, NDAA Compliant NVR, Ajax Security NVR, 8 Channel NVR
Technical Specifications
- NVR Model: 8-channel with up to 4K resolution (25/30 FPS)
- IP Cameras: ONVIF (Profile S/T), RTSP compatible
- Storage: Supports hard drives up to 16 TB (SATA, 3.5” size), HDD not included
- Decoding Formats: H.265, H.264
- Bandwidth: Up to 100 Mbps
- Power: Operating voltage 110–240 V~, indoor installation only
- Ethernet: Up to 100 Mbps
- Bluetooth: BLE frequency band 2.400–2.4835 GHz for Ethernet setup
- Radio Signal Power: 2.5 mW (100 mW limit)
- Motion Detection: Built-in software with option to switch between NVR or camera algorithms
- In-app Video Management: Videowall, event filters, timeline with smooth preview
- Visual Verification: Ajax alarms trigger specific cameras to record
- Privacy: Access rights distribution for users and monitoring operators
- Operating Temperature Range: 0°C to +40°C
- Operating Humidity: Up to 75%
- Protection Class: IP20
- Dimensions (H x L x W): 47mm x 193mm x 193mm
- Weight: 0.7 kg
Key Features
- Supports 8/16 channels with up to 4K resolution at 25/30 FPS
- Compatible with ONVIF (Profile S/T) and RTSP IP cameras
- Supports hard drives up to 16 TB via SATA (3.5” size) - HDD not included
- H.265 and H.264 video decoding formats
- Up to 100 Mbps bandwidth and Ethernet speed
- Built-in motion detection with option to switch between NVR or camera algorithms
- In-app video management system with videowall, event filters, and smooth timeline preview
- Visual verification of Ajax alarms with camera-triggered recording
- Privacy controls with access rights distribution for users and operators
- NDAA compliant with components approved by US government
- Data securely stored within the European Union meeting EU data protection standards
- Underwent independent cybersecurity testing for safety and reliability
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper setup, network integration, and compliance with NDAA requirements.
Applications
- Video surveillance for residential and commercial properties
- Integration with Ajax security systems for intrusion protection and automation
- Remote video monitoring and management via mobile and desktop apps
- Professional security system installations requiring NDAA compliance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient H.265 video compression reducing storage and bandwidth usage
- Enables remote monitoring reducing the need for physical site visits
- Designed for indoor use with low power consumption (110–240 V~)
Warranty Information
24 months warranty.
Available Now
The AJAX NVR NDAA 8CH H.265 ONVIF White is available for immediate purchase, ideal for professional video surveillance and security system integration.
