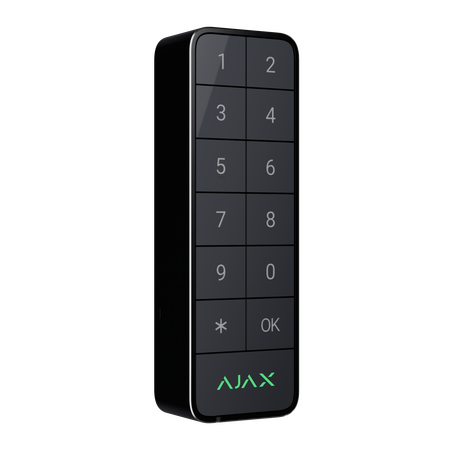

AJAX Superior Keypad Outdoor Fibra | IP66 & IK08 Protection | Bluetooth & Tag Key Fob Access | by Dicker Data
The AJAX Superior Keypad Outdoor Fibra is designed for robust security control, featuring IP66 and IK08 protection for all-weather use. With support for codes, tag key fobs, and Bluetooth authentication, it’s perfect for both residential and commercial properties. Ideal for managing automation devices and ensuring secure access, this keypad also includes a duress code feature for emergencies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Superior Keypad Outdoor Fibra | IP66 & IK08 Protection | Bluetooth & Tag Key Fob Access | by Dicker Data
Brand: Dicker Data
SKU: 117761.285.GP
Alternatively Known As: Outdoor Security Keypad, Wired Access Control Keypad, Ajax Fibra Keypad, Contactless Security Keypad, Panic Button Keypad
Technical Specifications
- Control methods: Codes, Pass codes, Tag key fobs, Smartphone (Bluetooth)
- Access via DESFire® EV1, EV2, EV3 with 128-bit encryption and copy protection
- Maximum personal codes: up to 50
- One keypad code per device
- Duress codes supported with up to 50 personal codes
- Codes for unregistered users supported
- Sabotage protection: keypad locks for 3–180 minutes after 3 incorrect code attempts within 1 minute
- Power supply: Fibra line power supply (7−30 V⎓, up to 54.6 mA)
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range: -25°C to +60°C
- Operating humidity: up to 80%
- Protection class: IP66 IK08
- Dimensions (H x L x W): 137mm x 27mm x 45mm
- Weight: 0.16 kg
Key Features
- Switches security mode and manages automation devices
- Starts entry delay (bypass keypad) for security mode confirmation
- Supports authentication via passcodes, pass cards, tag key fobs, and smartphones (Bluetooth)
- Durable enclosure with IP66 and IK08 protection class for all-weather use
- Glove-friendly mechanical buttons with backlit digits and adjustable LED brightness
- Built-in buzzer with adjustable volume for alarms and notifications
- Panic button configurable for alarm activation or automation scenarios
- Duress code feature to silently alert security in emergencies
- Protection against code guessing with keypad lockout after multiple failed attempts
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper wiring and configuration.
Applications
- Outdoor and indoor security control for residential and commercial properties
- Access control for automation devices such as switches, relays, sockets, outlets, and shut-off valves
- Security management for sites requiring multi-user authentication and scenario activation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wired connection reduces battery waste compared to wireless devices
- Durable and weather-resistant design extends product lifespan, reducing replacement frequency
Warranty Information
24 months warranty against manufacturing defects.
Available Now
The AJAX Superior Keypad Outdoor Fibra Graphite is available for immediate purchase, ideal for enhancing security and automation control in residential and commercial environments.
