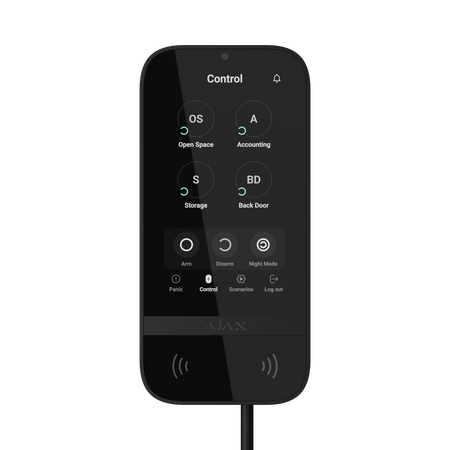

AJAX Touchscreen Keypad Fibra Black | 5" IPS Display | Capacitive Touch | 50 Personal Codes | by Dicker Data
The AJAX Touchscreen Keypad Fibra Black features a stunning 5" IPS display with 480 x 854 resolution and a capacitive touch sensor, making it perfect for advanced security management in both residential and commercial properties. With support for up to 50 personal codes and a user-friendly interface in dark and light modes, this keypad ensures secure access and control. Ideal for automation device management and alarm notifications, it combines functionality with sleek design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Touchscreen Keypad Fibra Black | 5" IPS Display | Capacitive Touch | 50 Personal Codes | by Dicker Data
Brand: Dicker Data
SKU: 81719.226.BL1
Alternatively Known As: Ajax Fibra Touchscreen Keypad, Ajax Security Keypad, Ajax Control Panel Touchscreen
Technical Specifications
- Display: 5" IPS Matrix, 480 x 854 Resolution
- Sensor Type: Capacitive touch
- Backlight Lifetime: 30,000 hours with Always Active Display toggle
- User Interface: Dark and Light modes
- Control Methods: Codes, Pass codes, Tag key fobs, Smartphone (Bluetooth)
- Access via DESFire® EV1, EV2 with 128-bit encryption
- Maximum Codes: Up to 50 personal codes, one code per keypad
- Sabotage Protection: Locks for 3–180 minutes after 3 incorrect code attempts within 1 minute
- Power Supply: Fibra line power supply (7−30 V⎓, up to 54.6 mA)
- Line Connection: 4-core cable
- Fibra Line Length: Up to 2,000 meters using U/UTP cat.5 twisted pair
- Backup Batteries: 2 × LTO AA, pre-installed
- External Power Supply: 10.5–14 V⎓, from 0.5 A (not included)
- Operating Temperature Range: -10°C to +40°C
- Operating Humidity: Up to 75%
- Dimensions (H x L x W): 171mm x 28mm x 82mm
- Weight: 0.33 kg
Key Features
- 5" IPS Matrix display with 480 x 854 resolution
- Capacitive touch sensor with dark and light user interface modes
- Panic buttons and contactless access via Pass card and Tag key fobs
- Supports up to 50 personal codes and one code per keypad
- Protection against code guessing with lockout after multiple failed attempts
- Remote firmware update capability
- Auto screen wakeup and group and scenario management
- Control via codes, pass codes, tag key fobs, and smartphone Bluetooth
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper integration with the Ajax security system and compliance with safety standards.
Applications
- Security management for residential and commercial properties
- Automation device control including switches, relays, and sockets
- Notification system for alarms, door openings, and system malfunctions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with Fibra line power supply and backup batteries
- Long backlight lifetime of 30,000 hours reduces waste and replacement frequency
Warranty Information
24 months warranty.
Available Now
The AJAX KEYPAD TOUCHSCREEN FIBRA BLACK is available for immediate purchase, ideal for advanced security and automation control in residential and commercial environments.
