AJAX TRANSMITTER 2Y | Wireless Communication | 1,600m Range | Power Third-Party Detectors | by Dicker Data
AJAX TRANSMITTER 2Y enhances your security system with wireless communication and a remarkable 1,600m range. Designed for connecting outdoor motion detectors and other third-party devices, it operates in extreme temperatures from -25°C to +50°C, ensuring reliability in various environments. With a long service life of 10 years and battery-powered operation, it minimizes energy consumption while providing robust security solutions for both residential and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX TRANSMITTER 2Y | Wireless Communication | 1,600m Range | Power Third-Party Detectors | by Dicker Data
Brand: Dicker Data
SKU: 30675.18.NC3
Alternatively Known As: Ajax Wireless Transmitter, Ajax Detector Module, Ajax Security Transmitter
Technical Specifications
- Connecting a detector via ALARM and TAMPER (NO/NC) terminals
- Alarm signal processing modes: Pulse or Bistable
- Power supply: 3 × CR123A, 3V batteries
- Capability to power connected detector: Yes, 3.3 V⎓
- Protection from dismounting: Accelerometer
- Radio protocol: Jeweller
- Compatibility: Operates only with Ajax hubs and radio signal range extenders
- Communication range: Up to 1,600 m in open space
- Devices polling interval: 12–300 seconds
- Operating temperature range: -25°C to +50°C
- Operating humidity: Up to 75%
- Service life: 10 years
- Dimensions (H x L x W): 22mm x 100mm x 39mm
- Weight: 0.074 kg
Key Features
- Converts third-party detectors to full-featured Ajax devices
- Can power third-party devices with 3.3 V⎓ output
- Operates in temperature range from -25°C to +50°C
- Humidity tolerance up to 75%
- Protection from dismounting via accelerometer
- Wireless communication using Jeweller radio protocol
- Communication range up to 1,600 m in open space
- Device polling interval configurable from 12 to 300 seconds
Professional Installation Requirements
- Installation by a qualified security system technician or electrician is recommended to ensure proper integration with Ajax hubs and compliance with safety standards.
Applications

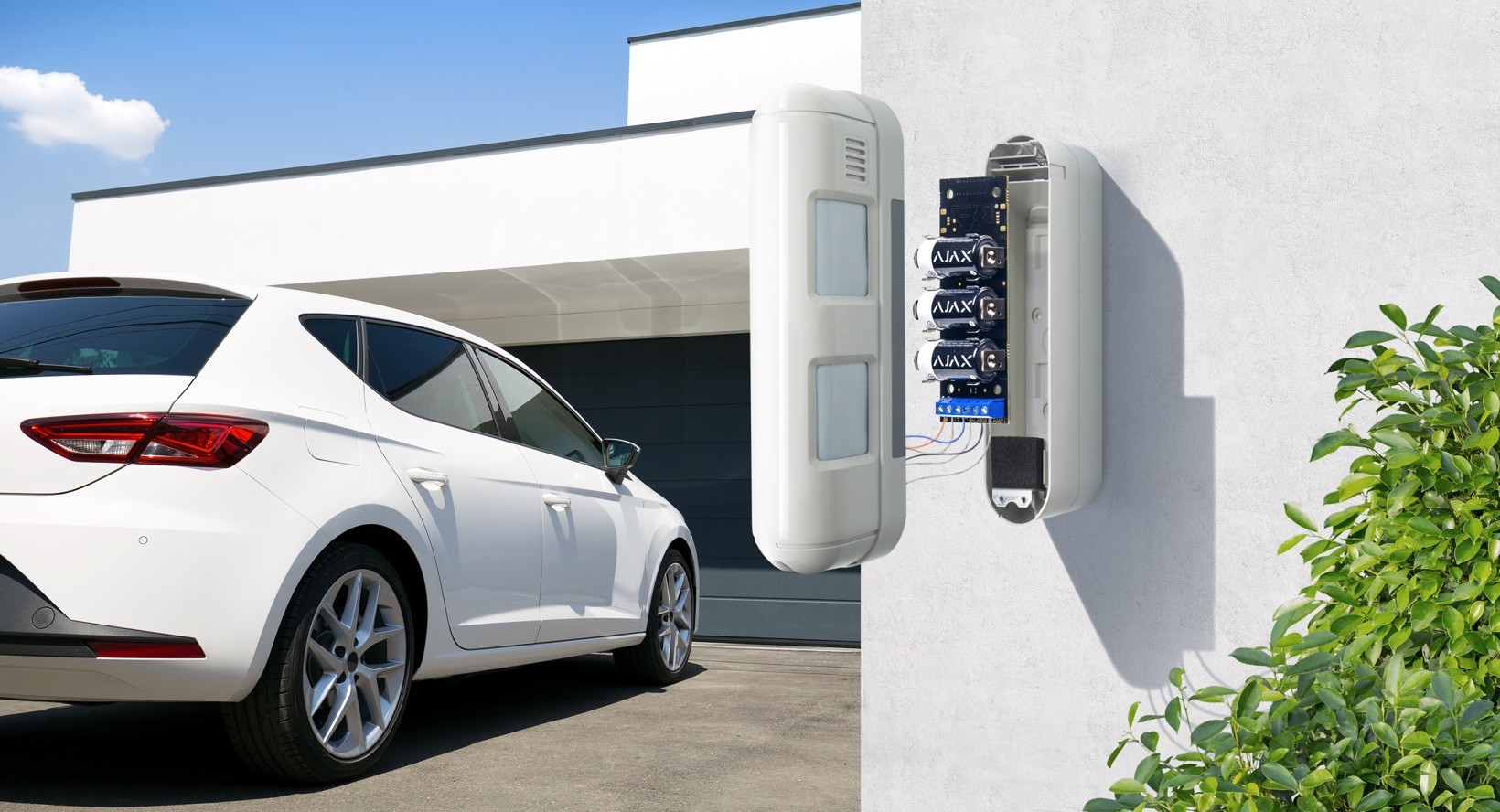

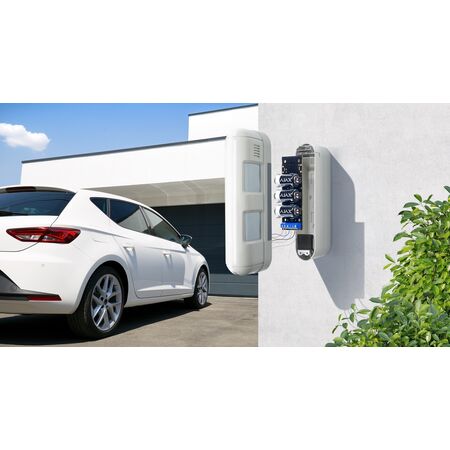

- Connection of outdoor motion detectors

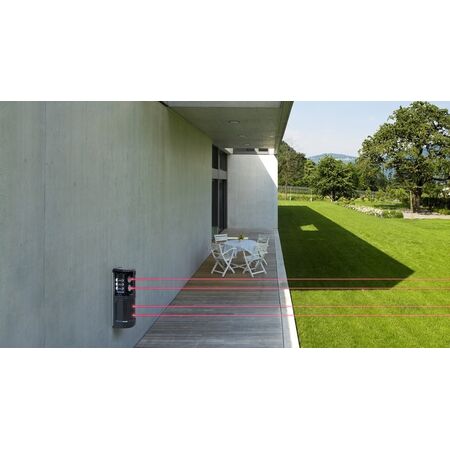

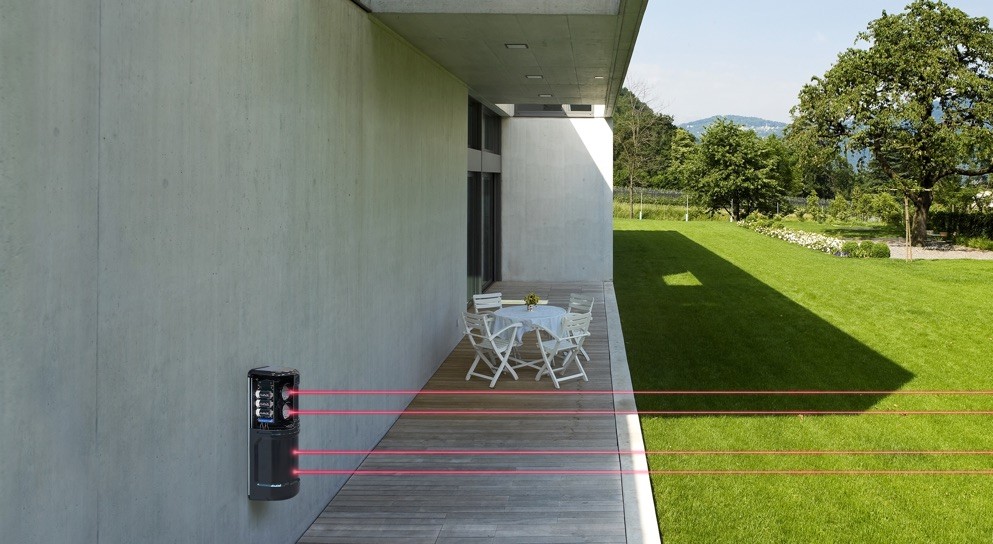

- Integration with IR barriers
- Liquid level detectors connection
- Gas detectors integration
- Thermal relays connection
- Third-party devices with wired output integration to Ajax security system
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life of 10 years reduces electronic waste
- Battery-powered operation minimizes energy consumption
Warranty Information
2 years warranty from Ajax Systems Manufacturing, excluding pre-installed battery.
Available Now
The AJAX TRANSMITTER 2Y is available for immediate purchase, ideal for enhancing security system connectivity in residential and commercial applications.
