AJAX Transmitter Fibra | Connects Third-Party Devices | 15 Event Types | Secure Two-Way Communication | by AJAX

BRAND: AJAX
SKU: 77373.182.NC1
$49.40 List price: $59.80
+ −
30 Days Return Delivery Options
AJAX Transmitter Fibra enhances your security system by connecting third-party devices seamlessly. With support for 15 event types and secure two-way communication, it’s perfect for both residential and commercial applications. This compact module allows for remote management and configuration, ensuring your security setup is both efficient and effective.

Product Name/Title: AJAX Transmitter Fibra | Connects Third-Party Devices | 15 Event Types | Secure Two-Way Communication | by AJAX

Brand: AJAX

SKU: 77373.182.NC1

Alternatively Known As: Ajax Fibra Transmitter, Ajax Third-Party Device Module, Ajax Fibra Integration Module, Ajax Security Transmitter

Technical Specifications
  • Wired devices connection: ALARM and TAMPER (NO/NC) terminals
  • Operation mode: Pulse or Bistable

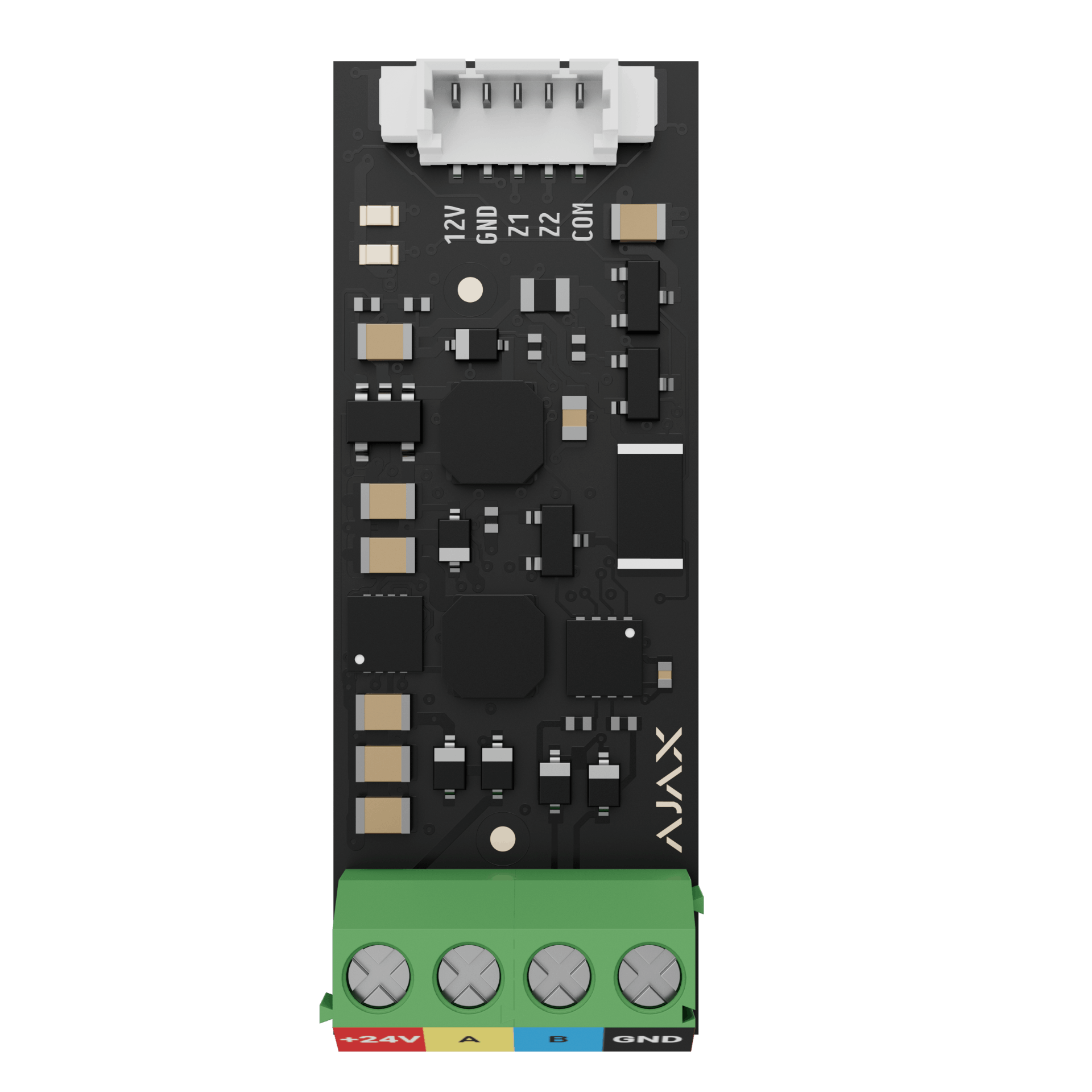

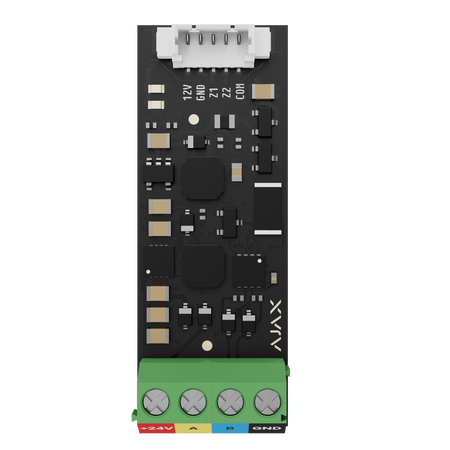

  • Connector pins: 12V power supply output, GND ground, Z1–Z2 inputs, COM common input
  • Type of connection: NO, NC, EOL, 2EOL, 3EOL with EOL resistance from 1 kΩ to 40 kΩ in 100 Ω increments
  • Cable length: up to 3 m with 0.22 mm² copper conductor
  • Event types: 15 event types of wired devices
  • Output to connected wired device: 10.5–15 V⎓, up to 50 mA max current
  • Power supply: Fibra line 7–30 V⎓, up to 200 mA
  • Line connection: 4-core cable
  • Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
  • Operating temperature range: –25°С to +50°С
  • Operating humidity: Up to 75%
  • Dimensions (H x L x W): 12mm x 15mm x 40mm
  • Weight: 0.006 kg
Key Features
  • Connects functional third-party devices to the Ajax system enhancing capabilities
  • Supports all connection types including 3EOL with 15 event types
  • Remote configuration and regular state reporting to the hub
  • Small size fits into most device enclosures
  • Supports NC, NO, EOL, 2EOL, and 3EOL connection types
  • Two inputs (Z1 and Z2) allow connection of one or two devices simultaneously
  • Provides 12 V⎓ power supply for connected devices
  • Secure two-way communication via Fibra proprietary protocol with encryption and authentication
  • Enables automation scenarios triggered by alarms or events
  • Data-rich notifications via app, SMS, and monitoring stations
Professional Installation Requirements
  • Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration and secure wiring.
Applications
  • Integration of third-party devices into Ajax security systems
  • Remote management and configuration of connected devices
  • Security automation and scenario setup for residential and commercial facilities
  • Connection of roller shutter motion detectors, IR detectors, gas sensors, thermostats, float sensors, and access control devices
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Extends the life and functionality of existing devices, reducing electronic waste
  • Enables smart automation to optimize energy use and enhance security efficiency
Warranty Information

24 months warranty.

Available Now

The AJAX Transmitter Fibra 2YR by AJAX is available now for immediate purchase. Ideal for enhancing security systems by integrating third-party devices with Ajax hubs.
