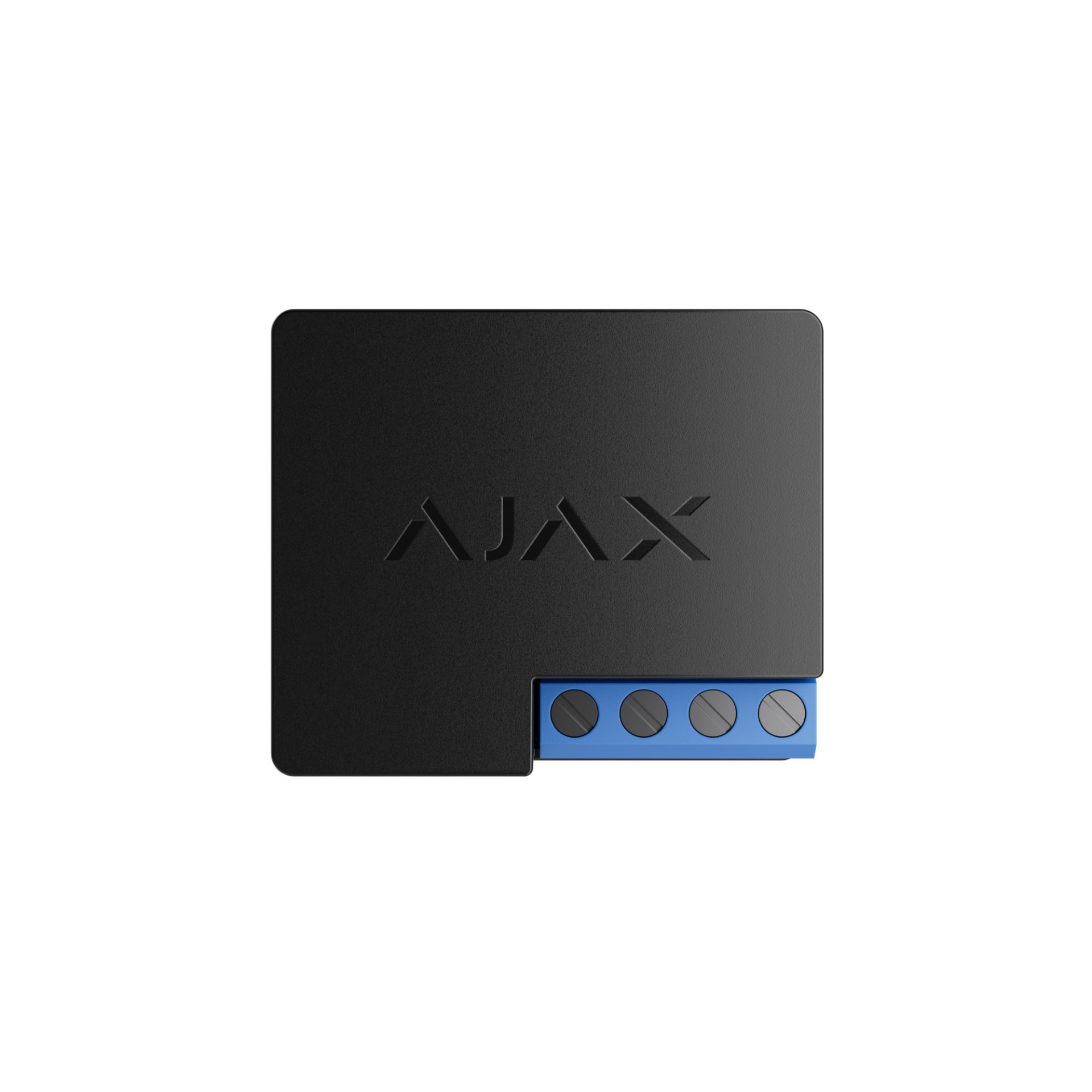

AJAX Wireless 240V WallSwitch Relay | Remote Control | Energy Monitoring | IP20 Rated | by Dicker Data
The AJAX Wireless 240V WallSwitch Relay is designed for remote control of 110/230 V devices, making it perfect for automating lighting, motorized blinds, and gates. With a load capacity of up to 3 kW and energy consumption monitoring via the Ajax app, this relay ensures efficient power management. Its compact size allows for easy installation in recessed wall plates, while the IP20 rating ensures safe indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Wireless 240V WallSwitch Relay | Remote Control | Energy Monitoring | IP20 Rated | by Dicker Data
Brand: Dicker Data
SKU: 30677.13.BL3
Alternatively Known As: Wireless Power Relay, Ajax WallSwitch Relay, Remote Control Relay, 240V Wireless Relay
Technical Specifications
- Electrically operated control device, flush-mounted built-in
- Action type 1 (electronic disconnection)
- Minimum 200,000 switching cycles
- Power supply voltage: 230 V~, 50 Hz
- Rated pulse voltage: 2,500 V~ (Overvoltage category II for single-phase system)
- Voltage protection: Maximum 253 V~, Minimum 184 V~
- Cable cross-sectional area: 0.75–1.5 mm² (22–14 AWG)
- Maximum load current: 10 A
- Maximum current protection: 13 A
- Output power (resistive load 230 V~): Up to 3 kW
- Operating mode: Pulse or bistable (firmware version 5.54.1.0 and higher)
- Pulse duration: 1 to 255 seconds
- Energy consumption monitoring available
- Energy consumption in standby mode: Less than 1 W
- Radio signal range: Up to 1,000 m in open space
- Pollution degree: 2 (indoor use only)
- Protection class: IP20
- Operating temperature range: 0°C to +64°C
- Maximum temperature protection: +65°C
- Operating humidity: Up to 75%
- Dimensions: 39 × 33 × 18 mm
- Weight: 30 g
- Service life: 10 years
- Dimensions (H x L x W): 18mm x 33mm x 39mm
- Weight: 0.03 kg
Key Features
- Wireless power relay for remote control of 110/230 V~ power supply
- Handles loads up to 3 kW, suitable for power-hungry devices
- Displays power consumption in the Ajax app
- Miniature size (39×33×18 mm) for easy installation in recessed wall plates or electrical panels
- Flexible external antenna for stable communication
- Pulse or bistable operating mode (firmware version 5.54.1.0 and higher)
- Energy consumption monitoring including current, voltage, power consumption, and electrical energy meter
- Radio signal range up to 1,000 m in open space
- Protection class IP20 for indoor use
- Operating temperature range from 0°C to +64°C
- Service life of 10 years
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safe and compliant connection to the 230 V~ power supply.
Applications
- Remote control of 110/230 V~ power supply devices
- Opening and closing automatic gates or barriers via Ajax App or Button
- Controlling motorised blinds and curtains with Ajax App or Button
- Lighting control in facilities based on Ajax System alarm state
- Control of any 240V devices as required
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy consumption monitoring to optimize power usage and reduce waste
- Supports remote control to improve energy efficiency by turning off devices when not needed
Warranty Information
24 months warranty.
Available Now
The AJAX Relay Wireless 240V WallSwitch Relay by Dicker Data is available for immediate purchase, ideal for residential and commercial applications requiring remote control of 240V devices.
