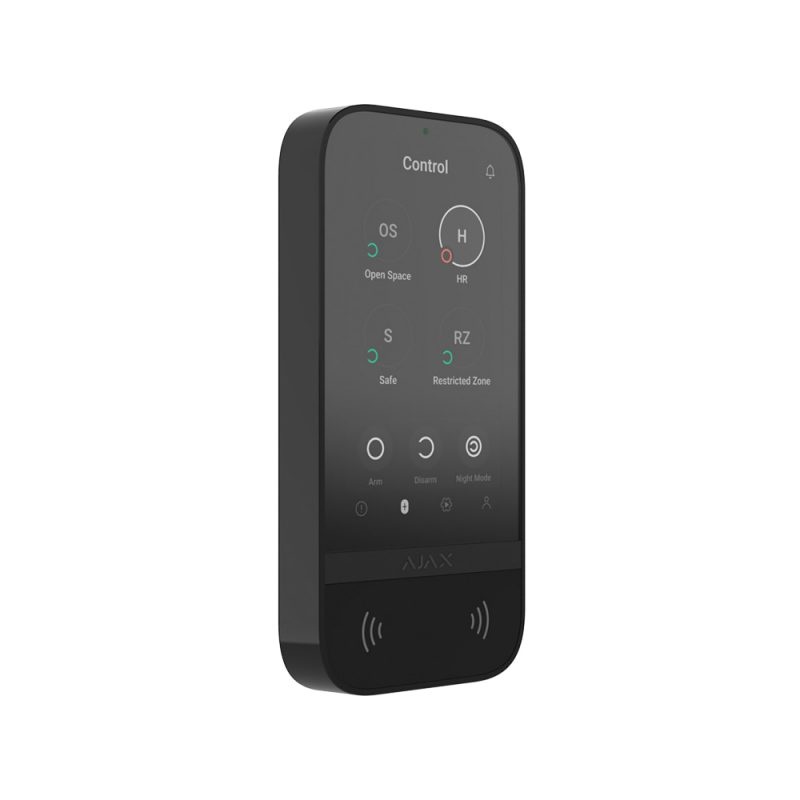

AJAX Wireless Touchscreen Keypad | 5" IPS Display | Capacitive Touch | 30,000 Hour Backlight | by Dicker Data
AJAX Wireless Touchscreen Keypad offers a 5" IPS display and capacitive touch control, making it perfect for managing security systems in both residential and commercial settings. With features like panic buttons, contactless access via DESFire technology, and a long battery life of up to 1.5 years, this keypad ensures reliable performance and user-friendly operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Wireless Touchscreen Keypad | 5" IPS Display | Capacitive Touch | 30,000 Hour Backlight | by Dicker Data
Brand: Dicker Data
SKU: 58468.148.BL3
Alternatively Known As: Ajax Wireless Touchscreen Keypad, Ajax KeyPad TouchScreen, Wireless Security Keypad, Ajax Control Panel Touchscreen
Technical Specifications
- Display: 5", IPS Matrix, 480 x 854 resolution
- Sensor Type: Capacitive touch
- Backlight Lifetime: 30,000 hours with Always Active Display toggle
- User Interface: Dark and Light modes
- Control: Codes, Pass codes, Tag key fobs
- Access via DESFire® EV1, EV2 with 128-bit encryption and copy protection
- Maximum Codes: Up to 200 personal codes depending on hub model
- Keypad Codes: One code per KeyPad
- Duress Codes: Up to 200 personal codes depending on hub model
- Keypad Duress Codes: One code per KeyPad
- Codes for Unregistered People: Up to 99 personal codes depending on hub model
- Sabotage Protection: Locks for 3–180 minutes after 3 incorrect code attempts within 1 minute
- Communication Range: Up to 1,700 m
- External Power Option: 10.5V–14 V DC, recommended 12 V DC at 0.5 A minimum
- Battery: 6 x AA
- Calculated Battery Life: Up to 1.5 years
- Operating Temperature Range: -10°C to +40°C
- Operating Humidity: Up to 75%
- Dimensions (H x L x W): 172mm x 26mm x 82mm
- Weight: 0.33 kg
Key Features
- Panic buttons for emergency situations
- Control via codes, pass codes, and tag key fobs
- Contactless access using DESFire technology
- Arm system without code
- Group and scenario management
- Auto screen wakeup
- Remote firmware update capability
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration with the Ajax system and compliance with safety standards.
Applications
- Security system control for residential and commercial properties
- Smart home device management
- Access control with contactless and code options
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with Grade 2 (EN 50131) and PD 6662:2017 security standards
Environmental Benefits
- Long battery life up to 1.5 years reduces battery waste
- Energy-efficient design with external power supply and battery backup
Warranty Information
24 months warranty.
Available Now
The AJAX KEYPAD TOUCHSCREEN WIRELESS BLACK 2Y by Dicker Data is available now for immediate purchase. Ideal for residential and commercial security system control and smart home management.
