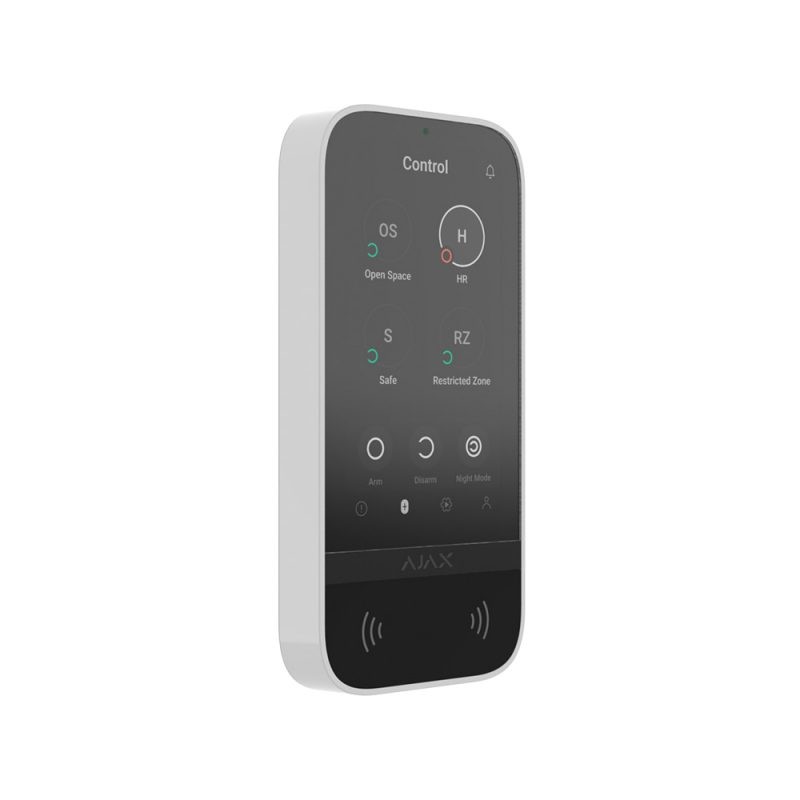

AJAX Wireless Touchscreen Keypad | 5" IPS Display | DESFire Technology | Panic Buttons | by Dicker Data
The AJAX Wireless Touchscreen Keypad features a 5" IPS display and advanced DESFire technology for secure access control. Ideal for home security and smart device management, it supports up to 200 personal codes and offers panic buttons for emergency alerts. With a battery life of up to 1.5 years and remote firmware updates, this keypad ensures convenience and reliability for both residential and commercial properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX Wireless Touchscreen Keypad | 5" IPS Display | DESFire Technology | Panic Buttons | by Dicker Data
Brand: Dicker Data
SKU: 58469.148.WH3
Alternatively Known As: Wireless Touchscreen Keypad, Ajax Security Keypad, Wireless Control Panel, Touchscreen Access Control
Technical Specifications
- Display: 5", IPS Matrix, 480 x 854 resolution
- Sensor Type: Capacitive touch
- Backlight Lifetime: 30,000 hours with Always Active Display enabled
- User Interface: Dark and Light modes
- Control Methods: Codes, Pass codes, Tag key fobs
- Access Technology: DESFire EV1, EV2 with 128-bit encryption
- Maximum Codes: Up to 200 personal codes depending on hub model
- Duress Codes: Up to 200 personal duress codes depending on hub model
- Codes for Unregistered People: Up to 99 codes depending on hub model
- Sabotage Protection: Locks for 3–180 minutes after multiple incorrect code entries
- Communication Range: Up to 1,700 meters
- External Power Option: 10.5V–14 V DC, recommended 12 V DC at 0.5 A
- Battery: 6 x AA batteries
- Calculated Battery Life: Up to 1.5 years
- Operating Temperature Range: -10°C to +40°C
- Operating Humidity: Up to 75%
- Dimensions (H x L x W): 172mm x 26mm x 82mm
- Weight: 0.33 kg
Key Features
- Panic buttons for emergency alerts
- Contactless access with DESFire technology
- Arm system without code entry
- Group and scenario management
- Auto screen wakeup for convenience
- Remote firmware update capability
- Protection against code guessing with lockout feature
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration with the Ajax system and compliance with safety standards.
Applications
- Home security system control
- Smart home device management
- Access control for residential and commercial properties
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long battery life up to 1.5 years reduces battery waste.
- Energy-efficient design with external power supply and battery backup.
Warranty Information
24 months warranty provided by the manufacturer.
Available Now
The AJAX KEYPAD TOUCHSCREEN WIRELESS WHITE is available for immediate purchase, ideal for enhancing security and smart home control in residential and commercial environments.
