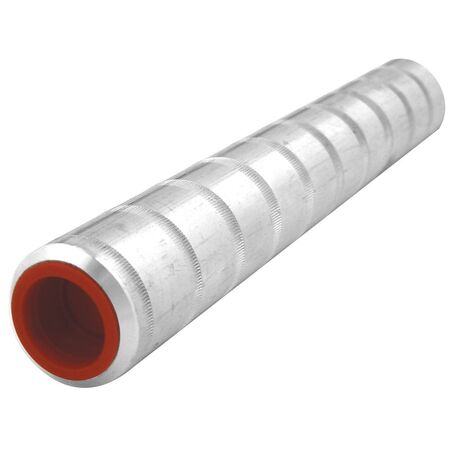

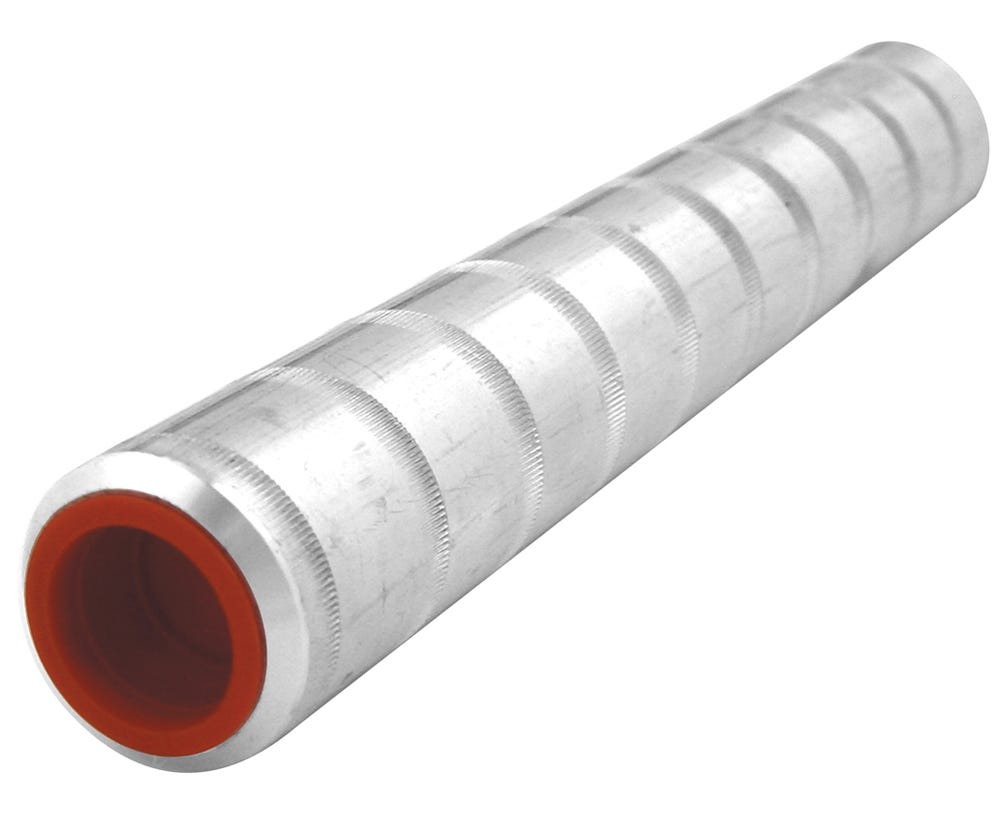

Al.Full Tension Sleeve for 6/4.75 | Full Tension 'R' Style | Jointing Compound Filled | Centre Cable Dimple | @Each of 1 | by Cabac
The Al.Full Tension Sleeve for 6/4.75 is designed for full tension loads with ACSR conductors, featuring a centre cable location dimple for precise alignment and filled with jointing compound for a secure connection. Ideal for overhead power line connections and electrical utility projects, this sleeve ensures reliable performance and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al.Full Tension Sleeve for 6/4.75 | Full Tension 'R' Style | Jointing Compound Filled | Centre Cable Dimple | @Each of 1 | by Cabac
Brand: Cabac
SKU: AFT61R
Alternatively Known As: Full Tension Sleeve, ACSR Tension Sleeve, Overhead Conductor Sleeve, Crimp Sleeve for ACSR
Technical Specifications
- Compatible conductor size: 6/4.75 ACSR
- Sleeve type: Full tension 'R' style
- Filled with jointing compound for secure connection
- Crimping method: Hex crimps or 'versa-crimp' indent style

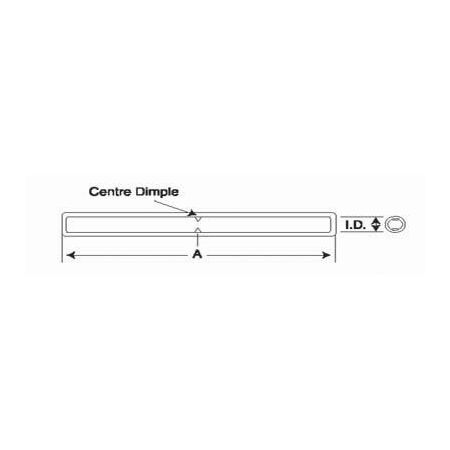

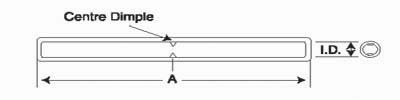

- Centre cable location dimple for accurate positioning
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Designed for full tension loads with ACSR conductors
- Centre cable location dimple for precise alignment
- Filled with jointing compound to ensure secure connection
- Compatible with hex crimps or 'versa-crimp' indent style crimping
Professional Installation Requirements
- Installation should be performed by a qualified electrical technician or lineman experienced with overhead conductor fittings to ensure safety and compliance.
Applications
- Overhead power line connections
- Full tension load applications with ACSR conductors
- Electrical utility and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum construction reduces need for frequent replacements
- Supports reliable electrical connections, minimizing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Al.Full Tension Sleeve for 6/4.75 is available for immediate purchase, ideal for overhead electrical conductor tension applications.
