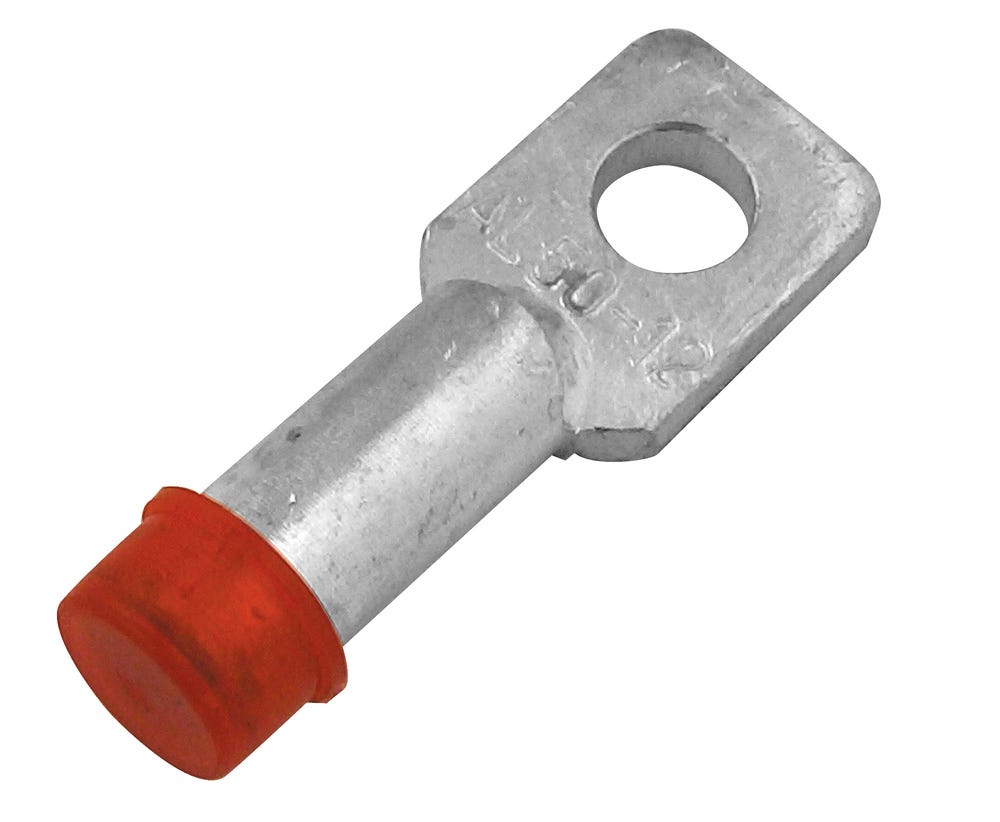

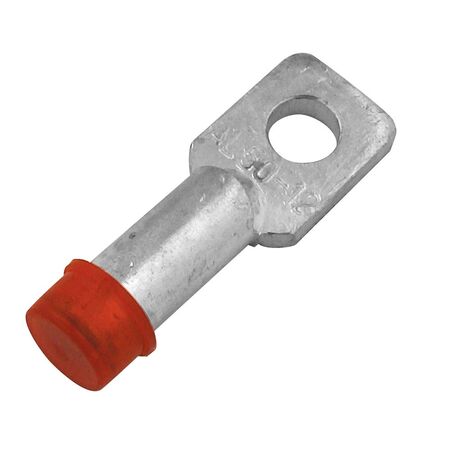

Al Lug 180mm² 12mm Stud CCT | Heavy Duty Aluminium | Tin Plated for Corrosion Resistance | @Each of 1 | by Cabac
The Al Lug 180mm² 12mm Stud CCT is a heavy-duty aluminium lug designed specifically for CCT conductors, featuring thicker barrels to withstand fault current situations. Tin plated for corrosion resistance and filled with jointing compound, it ensures reliable electrical power connectivity in overhead applications, making it ideal for electrical distribution and transmission lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure electrical grade aluminium forged from solid rod
- Cross Section: 180mm²
- Stud Size: 12mm
- Tin plated for corrosion resistance
- Filled with jointing compound and capped
- Compatible with CCT (Covered Conductor Thick) conductors
- Crimping method: standard hexagonal dies, crimp from palm outwards
- Dimensions (H x L x W): 20mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Heavy duty aluminium lug designed specifically for CCT conductors
- Thicker barrels to withstand fault current situations
- Tin plated to reduce corrosion and improve crimping contact resistance
- Filled with jointing compound and capped to enhance reliability
- Crimping with standard hexagonal dies from palm outwards
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with crimping aluminium lugs and overhead CCT conductors to ensure secure and reliable connections.
Applications
- Electrical power connectivity for overhead CCT conductors
- Suitable for use in electrical distribution and transmission lines
- Ideal for reducing flashover in overhead power lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Use of high purity aluminium improves electrical efficiency and reduces energy loss
- Tin plating extends product life, reducing waste and replacement frequency
- Designed to minimize flashover, reducing environmental impact on wildlife
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Cabac for specific warranty terms.
Available Now
The Cabac Aluminium CCT Lug 180mm2 12mm Stud is available for immediate purchase, ideal for electrical power connectivity in overhead CCT conductor applications.
