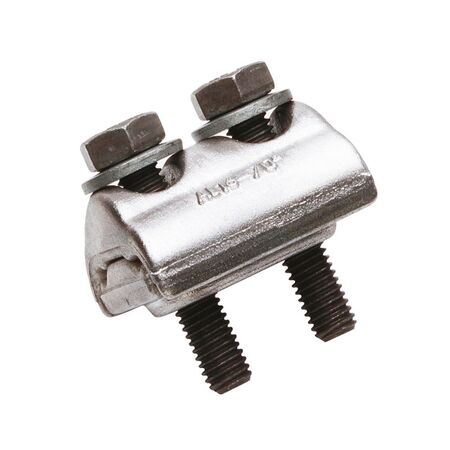

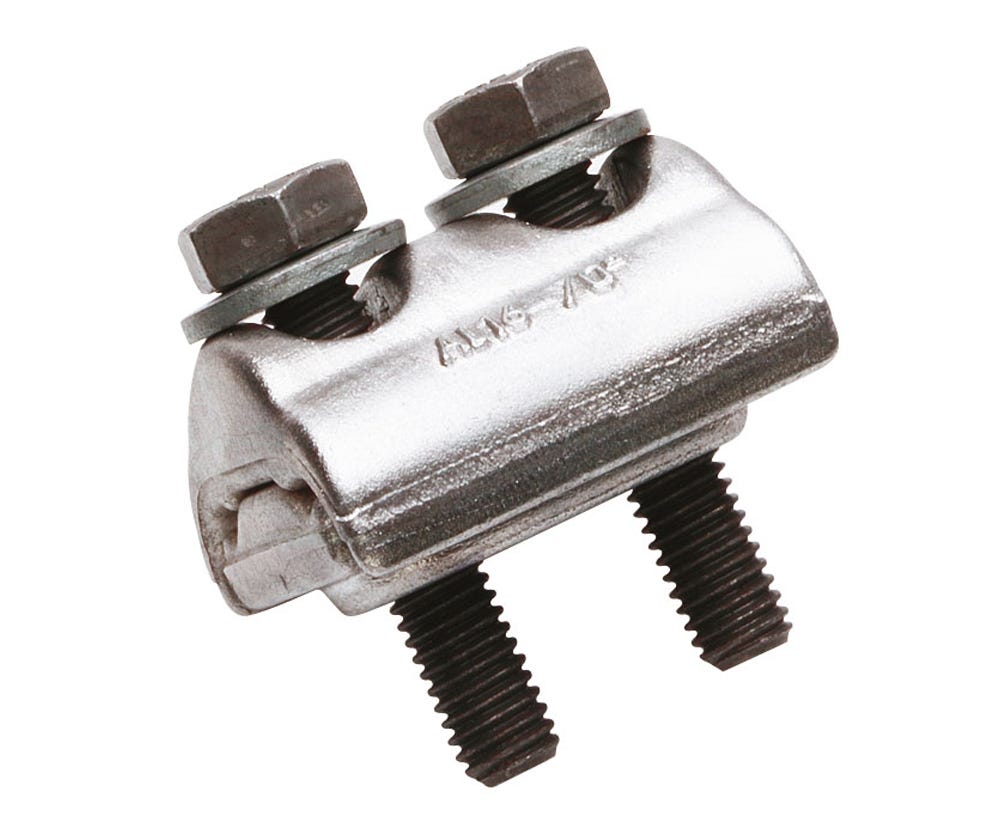

Al Parallel Groove Clamp 16/120 2xM8 AF13 | Forged Aluminium | Adjustable Slotted Holes | High Strength Design | @Each of 1 | by Cabac
The Al Parallel Groove Clamp 16/120 2xM8 AF13 is designed for reliable connections in electrical distribution networks, made from high-strength forged aluminium. With adjustable slotted holes for conductor alignment and easy installation using a single spanner, it's perfect for AAC, AAAC, and ACSR overhead conductors. Ideal for electrical utility and infrastructure projects, this clamp ensures durability and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Forged Aluminium
- Conductor Compatibility: AAC, AAAC, ACSR
- Bolt Size: 2x M8 galvanised nuts and bolts
- Adjustable slotted holes for conductor alignment
- High strength forged design for durability
- Dimensions (H x L x W): 40mm x 160mm x 120mm
- Weight: 1.2 kg
Key Features
- Forged, not extruded, to create a high strength clamp
- Slotted holes allow adjustment for conductors on each side
- Use a single spanner on galvanised nuts and bolts for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrical technician or professional to ensure secure and compliant connections.
Applications
- Used for tapping or joining AAC, AAAC or ACSR overhead conductors in electrical distribution networks
- Suitable for electrical utility and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable forged aluminium construction reduces the need for frequent replacements, minimizing waste
- Supports efficient electrical connections which can reduce energy losses in overhead power lines
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Al Parallel Groove Clamp 16/120 2xM8 AF13 is available for immediate purchase, ideal for electrical utility and infrastructure applications.
