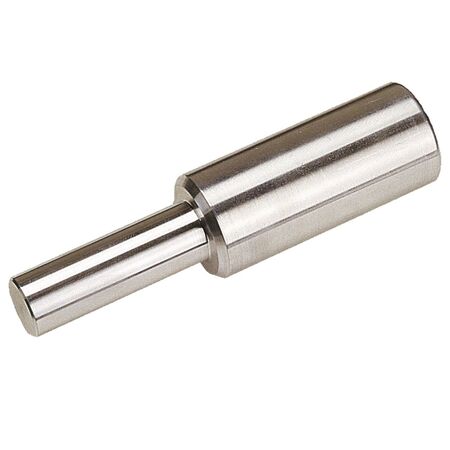

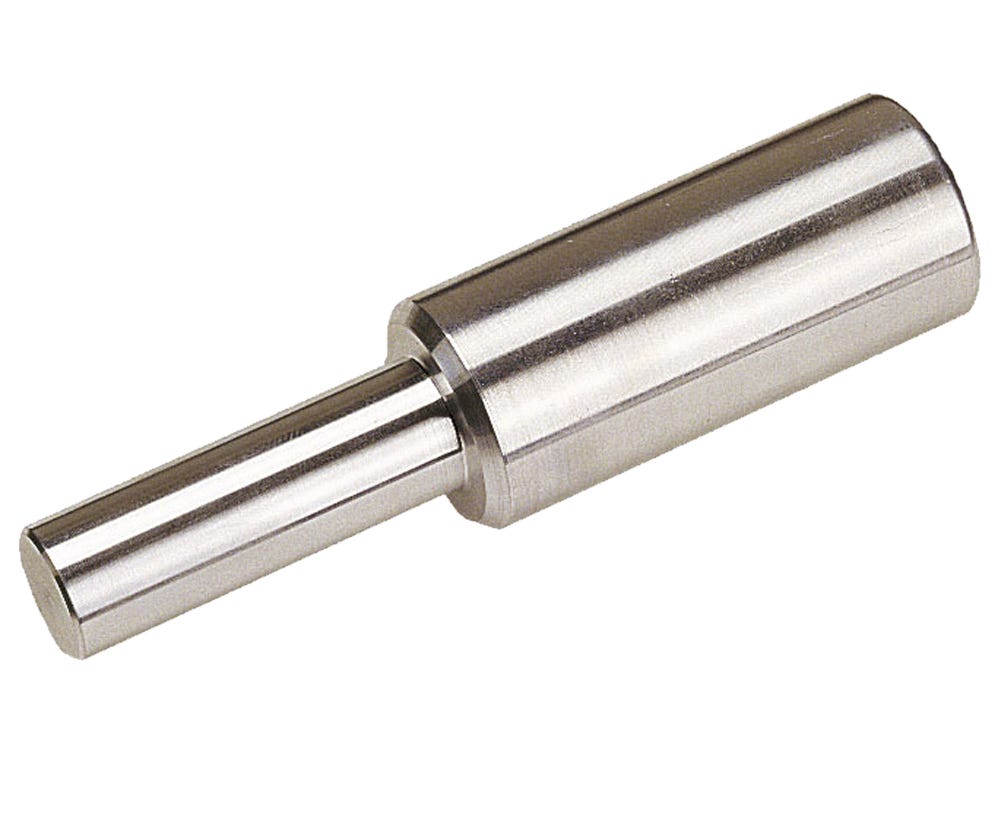

Al Stalk 120mm2 Cable | Aluminium Construction | 14mm Stalk Diameter | Crimped for Secure Connections | @Each of 1 | by Cabac
The Al Stalk 120mm2 Cable is designed for reliable electrical connections with aluminium overhead conductors. Featuring a 14mm stalk diameter and crimped using CABAC standard tooling, this cable ensures secure and efficient connectivity. Ideal for power distribution and electrical installations, it offers a lightweight and recyclable alternative to copper, making it an environmentally friendly choice.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Stalk 120mm2 Cable | Aluminium Construction | 14mm Stalk Diameter | Crimped for Secure Connections | @Each of 1 | by Cabac
Brand: Cabac
SKU: AS120/14
Alternatively Known As: Aluminium Stalk Cable Connector, AL Stalk Lug 120mm2, Aluminium Cable Lug
Technical Specifications
- Conductor Size: 120mm²
- Stalk Diameter: 14mm
- Material: Aluminium
- Crimped with CABAC standard tooling and dies
- Designed for aluminium clamp terminals
- Dimensions (H x L x W): 20mm x 150mm x 120mm
- Weight: 0.3 kg
Key Features
- Stalk lugs designed for attaching aluminium cable to aluminium overhead conductors
- Crimped using CABAC standard tooling and dies for aluminium lugs
- Compatible with aluminium clamp terminals
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure connections.
Applications
- Electrical connections for aluminium overhead conductors
- Suitable for electrical equipment with aluminium clamp terminals
- Used in power distribution and electrical installations requiring aluminium cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Aluminium construction offers a lightweight and recyclable alternative to copper, reducing environmental impact
- Durable design reduces the need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Cabac, typically covering manufacturing defects.
Available Now
The Cabac AL Stalk 120mm2 Cable is available for immediate purchase, ideal for electrical and power connectivity applications involving aluminium conductors.
