Trade Discount 17%

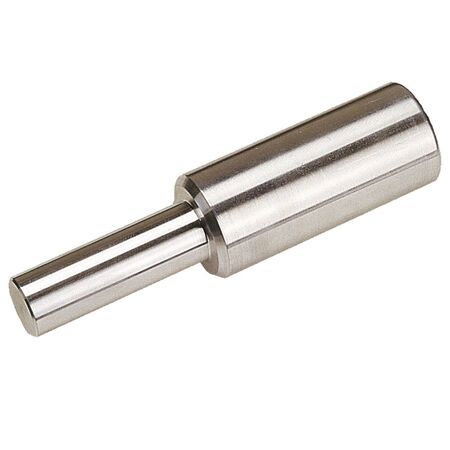

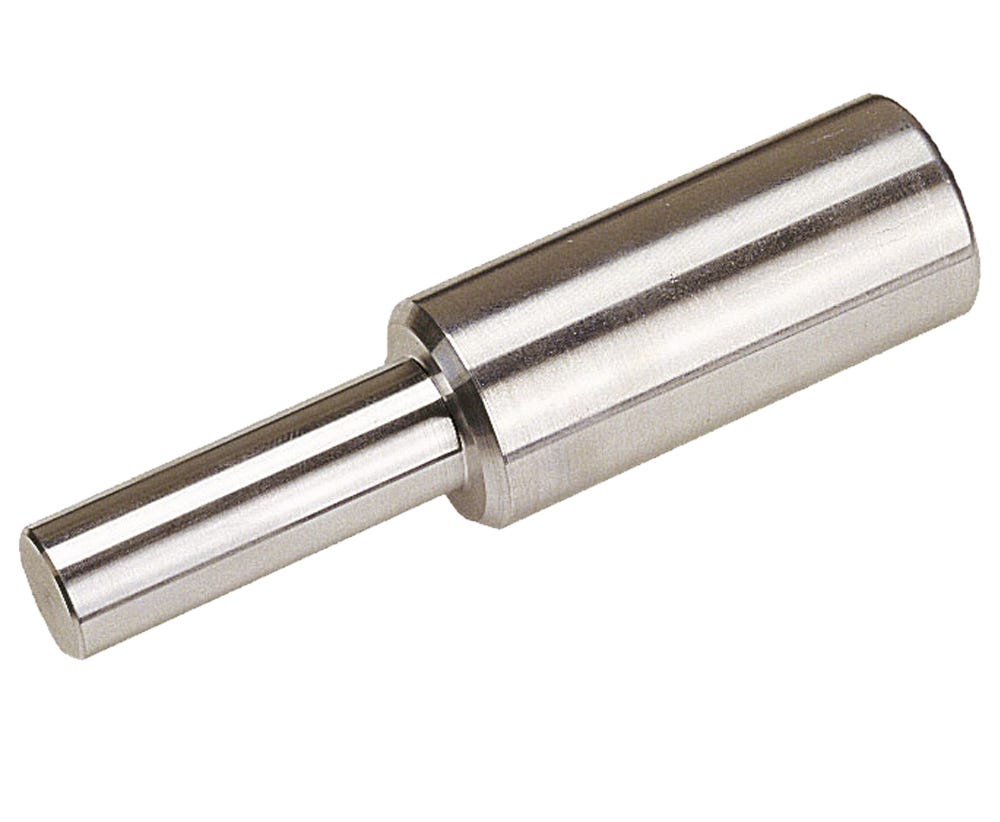

Al Stalk 240mm2 Cable 14mm Stalk | Aluminium Material | Crimped with CABAC Tooling | by Cabac
Al Stalk 240mm2 Cable 14mm Stalk is designed for secure electrical connections in aluminium overhead conductors. Made from recyclable aluminium, it features a 14mm stalk diameter and is crimped using CABAC standard tooling for optimal performance. Ideal for power distribution and electrical installations, this cable lug ensures efficient connectivity and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Stalk 240mm2 Cable 14mm Stalk | Aluminium Material | Crimped with CABAC Tooling | by Cabac
Brand: Cabac
SKU: AS240/14
Alternatively Known As: Aluminium Stalk Lug 240mm2, AL Cable Lug 14mm Stalk, Aluminium Cable Terminal Lug
Technical Specifications
- Conductor Size: 240mm²
- Stalk Diameter: 14mm
- Material: Aluminium
- Crimped with CABAC standard tooling and dies
- Designed for aluminium clamp terminals
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Stalk lugs designed for attaching aluminium cable to aluminium overhead conductors
- Crimped using CABAC standard tooling and dies for aluminium lugs
- Conductor size indicated by first digits after AS
- Stalk diameter indicated by digits after slash
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for aluminium overhead conductors
- Suitable for electrical equipment with aluminium clamp terminals
- Used in power distribution and electrical installations requiring aluminium cable lugs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Supports efficient electrical connections reducing energy loss
Warranty Information
Cabac provides a standard warranty against manufacturing defects; please refer to the supplier for specific warranty terms.
Available Now
The Cabac AL Stalk 240mm2 Cable 14mm Stalk is available now for immediate purchase. Ideal for electrical and power connectivity applications involving aluminium conductors.
