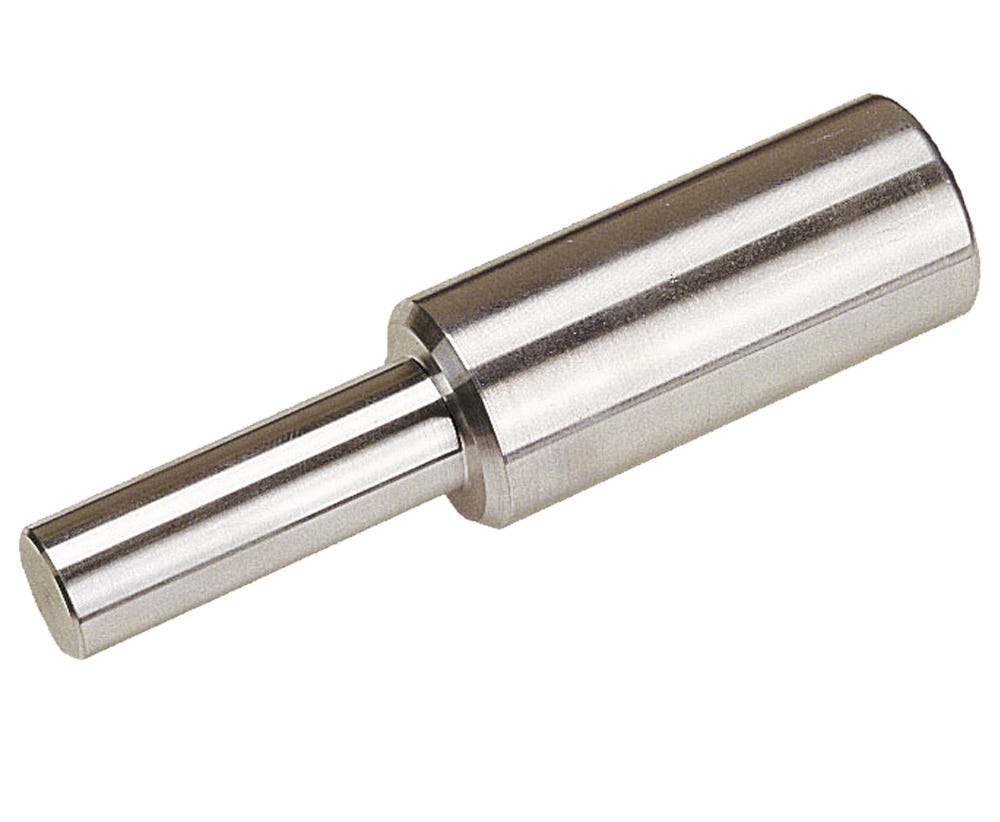

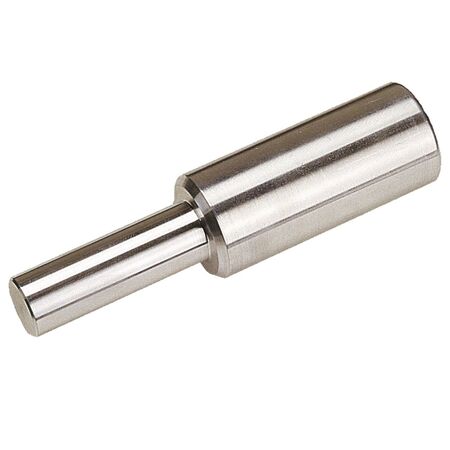

Al Stalk 70mm2 Cable 10mm Stalk | Aluminium Material | Crimped with CABAC Tooling | @Each of 1 | by Cabac
Al Stalk 70mm2 Cable 10mm Stalk is designed for reliable electrical connectivity, featuring a 70mm² conductor size and a 10mm stalk diameter. Ideal for attaching aluminium cables to overhead conductors, this lug is supplied filled with jointing compound and capped, ensuring secure connections. Perfect for electrical equipment with aluminium clamp terminals, it meets AS/NZS 3000 standards for safe installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 70mm²
- Stalk Diameter: 10mm
- Material: Aluminium
- Suitable for stranded sector and circular stranded aluminium conductors
- Supplied filled with jointing compound and capped
- Crimping Method: Aluminium hex dies with CABAC standard tooling
- Dimensions (H x L x W): 10mm x 100mm x 70mm
- Weight: 0.1 kg
Key Features
- Standard range of aluminium stalk lugs available with special lugs made to order
- Supplied filled with jointing compound and capped
- Crimped with CABAC standard tooling and aluminium hex dies
- Designed for stranded sector and circular stranded aluminium conductors
Professional Installation Requirements
- Should be crimped with standard aluminium hex dies by a qualified electrician to ensure secure and safe connections.
Applications
- Used to attach aluminium cable to aluminium overhead conductors
- Suitable for electrical equipment with aluminium clamp terminals
- Electrical and power connectivity applications requiring aluminium lugs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Aluminium material is lightweight and recyclable, reducing environmental impact
- Supports efficient electrical connections which can reduce energy loss
Warranty Information
Warranty details available upon request from Cabac.
Available Now
The Cabac Al Stalk 70mm2 Cable 10mm Stalk is available now for immediate purchase. Ideal for electrical and power connectivity applications involving aluminium cables.
