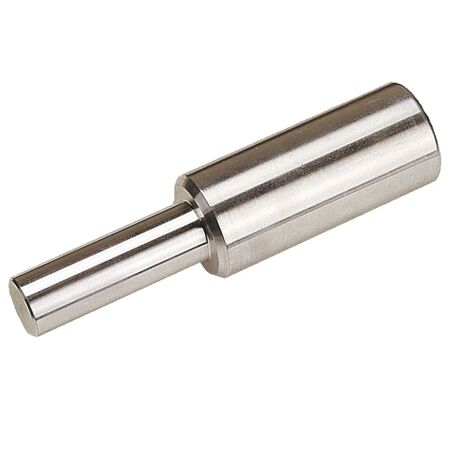

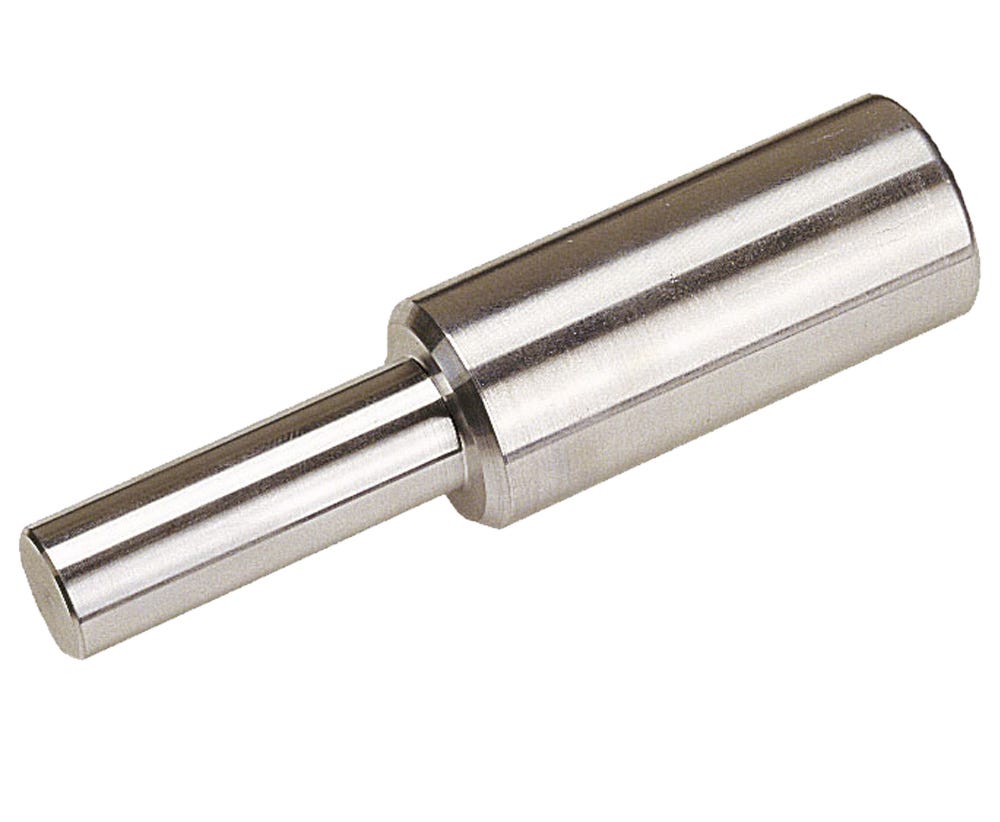

Al Stalk 70mm2 Cable 8mm Stalk | Aluminium Material | Jointing Compound Filled | Crimped with Standard Hex Dies | @Each of 1 | by Cabac
Al Stalk 70mm2 Cable 8mm Stalk is designed for secure electrical connections with stranded sector and circular stranded aluminium conductors. Made from lightweight aluminium and filled with jointing compound for protection, this lug ensures reliable performance in various applications, including overhead conductor attachments and electrical equipment connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Aluminium
- Conductor Size: 70mm²
- Stalk Diameter: 8mm
- Suitable for stranded sector and circular stranded aluminium conductors
- Supplied filled with jointing compound and capped
- Crimped with standard aluminium hex dies
- Dimensions (H x L x W): 70mm x 100mm x 20mm
- Weight: 0.1 kg
Key Features
- Standard range of aluminium stalk lugs available with special lugs made to order same day
- Supplied filled with jointing compound and capped for protection
- Crimped using CABAC standard aluminium hex dies
- Stalk lugs designed specifically for aluminium cable connections
- First digits indicate conductor size, last digits indicate stalk diameter
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for aluminium stranded sector and circular stranded aluminium conductors
- Attachment of aluminium cable to aluminium overhead conductors
- Use with electrical equipment featuring aluminium clamp terminals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Aluminium material is lightweight and recyclable, reducing environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Cabac, typically covering manufacturing defects.
Available Now
The Cabac Aluminium Stalk 70mm2 Cable 8mm Stalk Lug is available for immediate purchase, ideal for electrical and power connectivity applications involving aluminium conductors.
