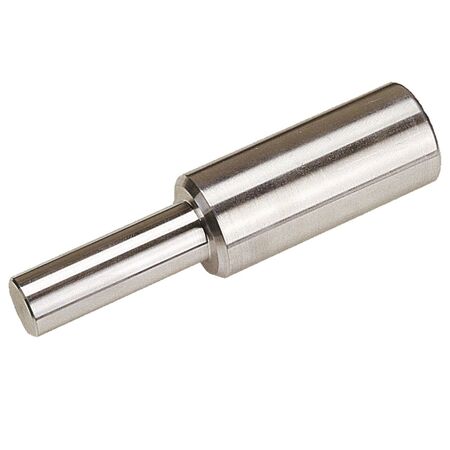

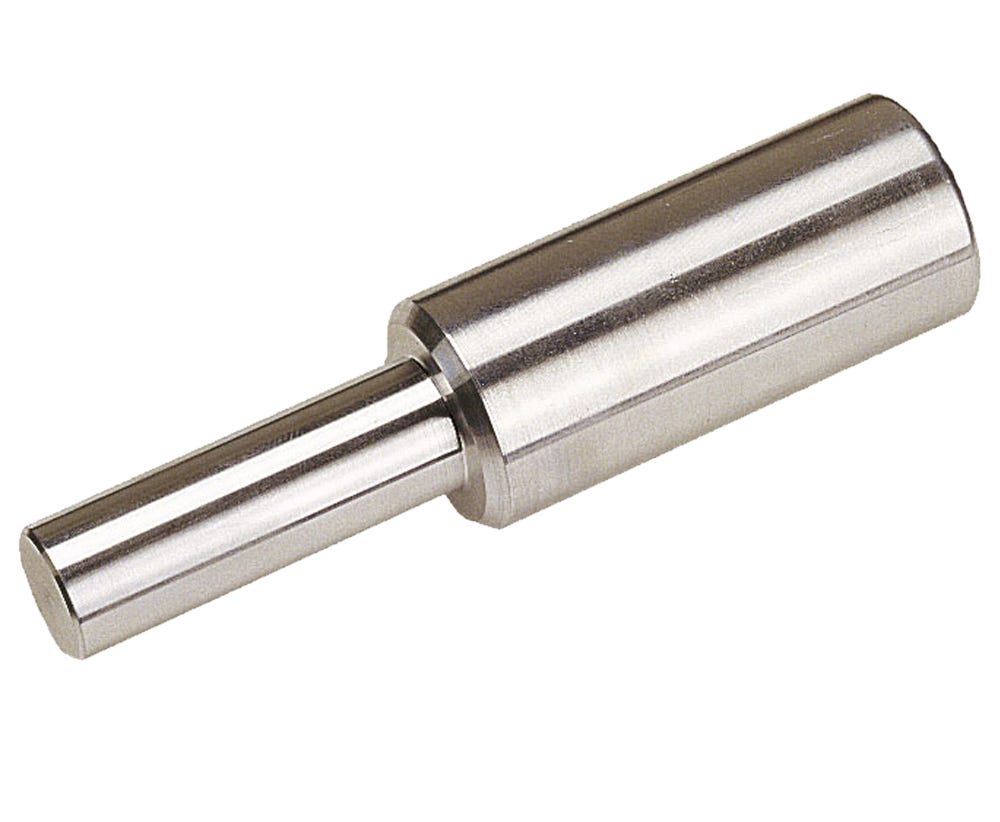

Al Stalk 95mm2 Cable 12mm Stalk | Aluminium Material | Jointing Compound Filled | Crimped with Standard Tools | @Each of 1 | by Cabac
The Al Stalk 95mm2 Cable 12mm Stalk is designed for reliable connections in electrical and power applications. Made from lightweight aluminium, it features a 12mm stalk diameter and is supplied filled with jointing compound for enhanced performance. Ideal for attaching aluminium cables to overhead conductors, this lug ensures secure connections and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 95mm²
- Stalk Diameter: 12mm
- Material: Aluminium
- Suitable for stranded sector and circular stranded aluminium conductors
- Supplied filled with jointing compound and capped
- Crimped with standard aluminium hex dies
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Standard range of aluminium stalk lugs available
- Special lugs can be made to order on the same day
- Supplied filled with jointing compound and capped
- Crimped with CABAC standard tooling and dies for aluminium lugs
- Stalk lugs designed for stranded sector and circular stranded aluminium conductors
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections.
Applications
- Used to attach aluminium cable to aluminium overhead conductors
- Suitable for electrical equipment with aluminium clamp terminals
- Electrical and power connectivity applications requiring aluminium conductor connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Aluminium material is lightweight and recyclable, reducing environmental impact
- Durable design reduces need for frequent replacements
Warranty Information
Warranty as per manufacturer’s standard terms and conditions.
Available Now
The Cabac Al Stalk 95mm2 Cable 12mm Stalk is available now for immediate purchase. Ideal for electrical and power connectivity applications involving aluminium conductors.
