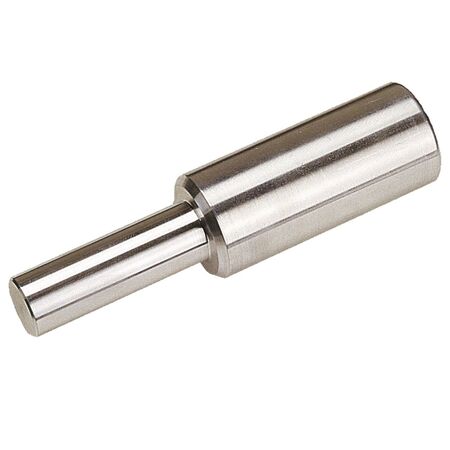

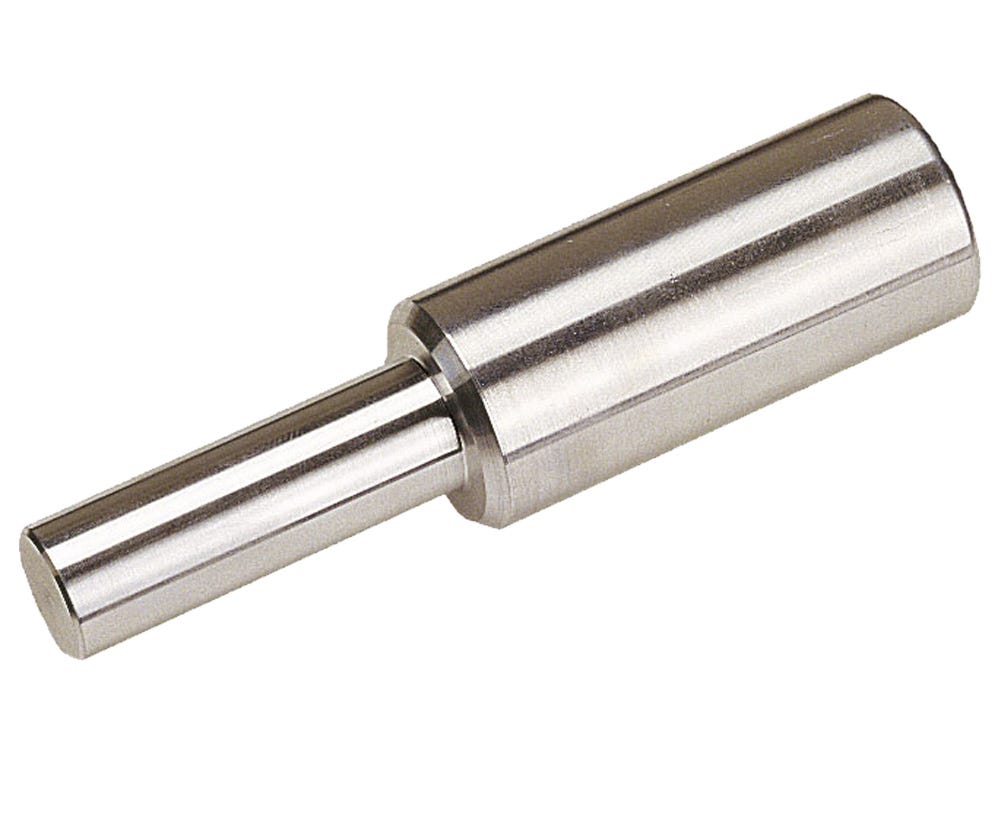

Al Stalk 95mm2 Cable 14mm Stalk | Aluminium Material | Designed for Overhead Connections | @Each of 1 | by Cabac
The Al Stalk 95mm2 Cable 14mm Stalk is engineered for reliable electrical connections between aluminium cables and overhead conductors. With a sturdy 14mm stalk diameter and crimped using CABAC standard tooling, this lug ensures secure and efficient connectivity. Ideal for professional electricians, it meets AS/NZS 3000 standards and is perfect for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Stalk 95mm2 Cable 14mm Stalk | Aluminium Material | Designed for Overhead Connections | @Each of 1 | by Cabac
Brand: Cabac
SKU: AS95/14
Alternatively Known As: Aluminium Stalk Lug 95mm2, AL Cable Lug 95mm2, Aluminium Cable Stalk Lug 14mm
Technical Specifications
- Conductor Size: 95mm²
- Stalk Diameter: 14mm
- Material: Aluminium
- Crimped with CABAC standard tooling and dies
- Designed for aluminium cable to aluminium overhead conductor connection
- Dimensions (H x L x W): 14mm x 95mm x 20mm
- Weight: 0.1 kg
Key Features
- Stalk lugs designed for aluminium cable to aluminium overhead conductor attachment
- Compatible with electrical equipment with aluminium clamp terminals
- Crimped using CABAC standard tooling and dies for aluminium lugs
- Conductor size indicated by first digits after AS
- Stalk diameter indicated by digits after slash
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure connections.
Applications
- Electrical connections for aluminium cables
- Attachment of aluminium cable to aluminium overhead conductors
- Use with electrical equipment having aluminium clamp terminals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Aluminium material is lightweight and recyclable, reducing environmental impact
- Durable design reduces need for frequent replacements
Warranty Information
Warranty as per Cabac standard terms and conditions.
Available Now
The Cabac AL Stalk 95mm2 Cable 14mm Stalk lug is available now for immediate purchase. Ideal for electrical and power connectivity applications involving aluminium cables.
