AL Stalk Cable 50mm² | 10mm Diameter | Jointing Compound Filled | Crimped Design by Cabac

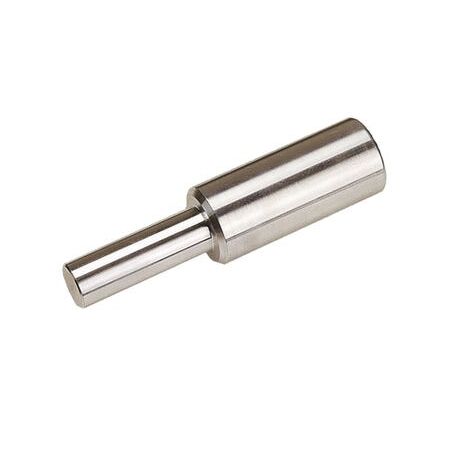

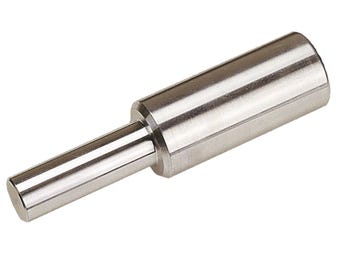

Cabac AL Stalk 50mm2 Cable 10mm Stalk Aluminium Stalk Lug designed for secure electrical connections with aluminium conductors, supplied with jointing compound and suitable for crimping with standard aluminium hex dies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AL Stalk 50mm2 Cable 10mm Stalk
Brand: Cabac
SKU: AS50/10
Alternatively Known As: Aluminium Stalk Lug, Aluminium Cable Lug, AL Cable Stalk Lug, Aluminium Crimp Lug
Technical Specifications
- Nominal Conductor Size: 50 mm²
- Cable Stalk Diameter: 10 mm
- Strand Metric I.D.: 19 strands of 1.78 mm diameter
- Number of Shear Head Bolts: 1
- Filled with jointing compound and capped for protection
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Suitable for stranded sector and circular stranded aluminium conductor
- Supplied filled with jointing compound and capped
- Crimped with standard aluminium hex dies
- Standard range available with special lugs made to order same day
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard aluminium hex crimping dies for secure connections.
Applications
- Electrical connections for aluminium overhead conductors
- Attachment of aluminium cables to aluminium clamp terminals
- Suitable for stranded sector and circular stranded aluminium conductors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Aluminium material is lightweight and recyclable, reducing environmental impact
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac AL Stalk 50mm2 Cable 10mm Stalk Aluminium Stalk Lug is available for immediate purchase, ideal for electrical and power connectivity applications involving aluminium conductors.
