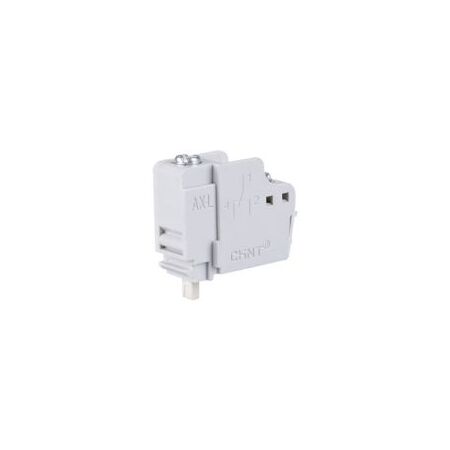

Alarm Contact to Suit NM8N 125A MCCB Chint
Chint alarm (trip) contact to suit NM8N 125A frame MCCB. Ideal for remote trip indication in switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: NM8N Alarm Contact, MCCB Trip Alarm Contact, CHINT AL21-M8 Trip Indicator
Technical Specifications
- Accessory Type: Alarm contact
- Compatible MCCB: CHINT NM8N-125 frame
- Accessory Model: AL21-M8
- Contact Configuration: 1 changeover contact, 1NO + 1NC
- Contact Terminals: AL11, AL12 and AL14
- AC-15 Rating: 5 A at 110 V AC, 4 A at 240 V AC, 2 A at 415 V AC
- DC-13 Rating: 0.25 A at 110 V DC and 220 V DC
- Mounting: Internal accessory slot marked AL
- Signal Function: Indicates free-trip or alarm status
- Dimensions (H x L x W): 25mm x 33mm x 11mm
- Weight: 0.1 kg
Key Features
- Provides remote trip indication in switchboards
- Signals overload, short-circuit, undervoltage and other free-trip events
- Compatible with the CHINT NM8N-125 MCCB frame
- 1 changeover contact provides normally open and normally closed signalling circuits
- Compact internal accessory with snap-in installation
- Suitable for connection to building management, PLC or panel alarm circuits
Professional Installation Requirements
- Installation and wiring inside a switchboard should be performed by a licensed electrician with the MCCB isolated and verified de-energised. Follow CHINT installation instructions and applicable switchboard requirements.
Applications
- Remote trip indication for NM8N-125 MCCBs
- Switchboard alarm and status monitoring
- PLC and building management system inputs
- Industrial and commercial low-voltage distribution panels
Standards & Compliance
- Associated NM8N moulded-case circuit breaker assemblies are designed to IEC 60947 series requirements; assess the complete Australian installation against AS/NZS 60947.2 and applicable switchboard requirements.
Environmental Benefits
- Enables targeted replacement of the alarm accessory without replacing the complete MCCB, helping extend equipment service life
- Compact component design reduces material use compared with replacing a complete circuit breaker
- Electrical components should be separated and recycled through appropriate e-waste channels at end of life
Warranty Information
CHINT's general policy lists a 27-month warranty from the date of manufacture for other low-voltage apparatus sold through authorised channels. Contract and regional warranty terms may vary.
Available Now
Available through authorised CHINT distributors in Australia.
