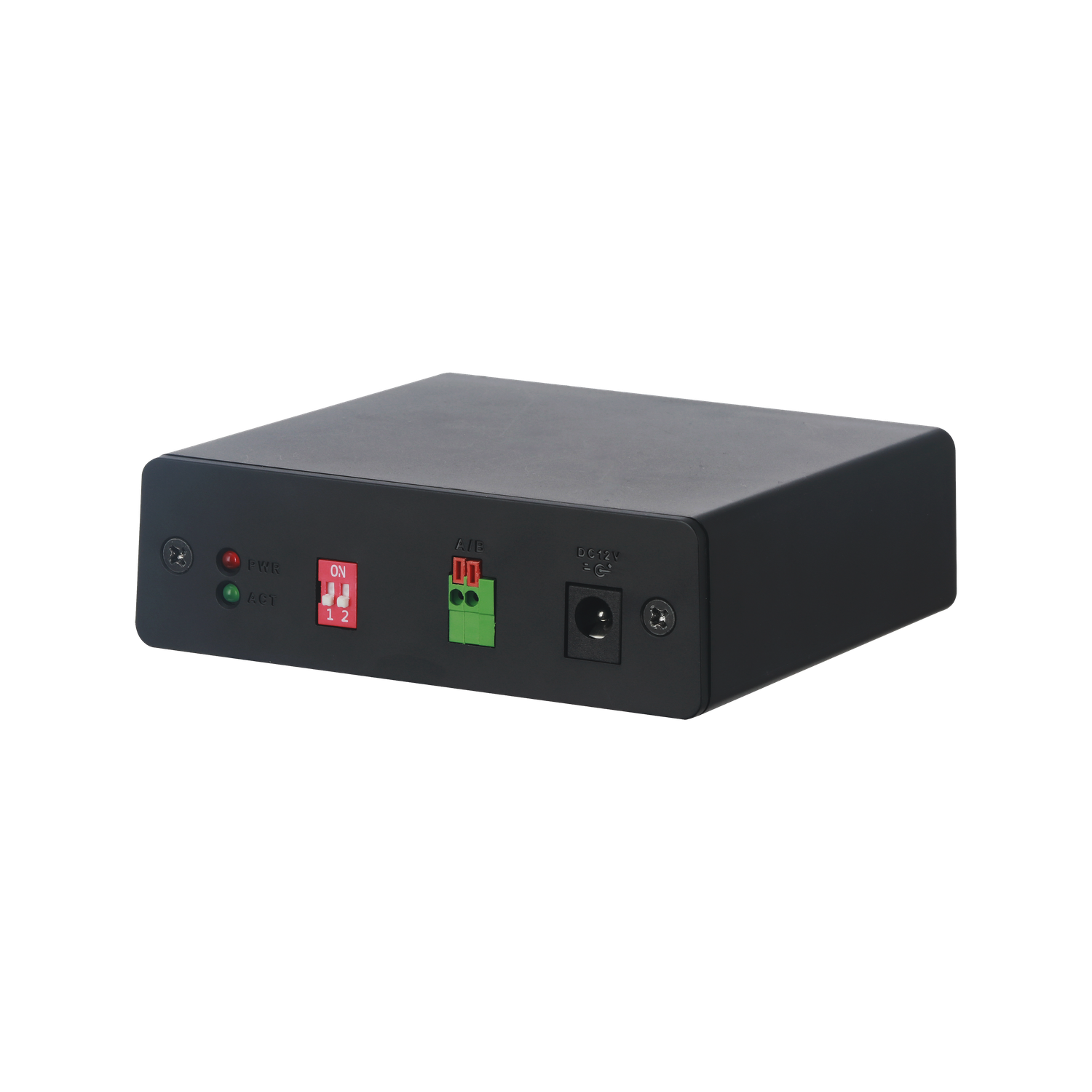

Alarm Interface Box | 16 Channel Input | RS485 Communication | Universal 12V Power by Dahua Technology
Enhance your security systems with the Alarm Interface Box featuring 16 channel input and RS485 communication. Ideal for both commercial and residential applications, it supports universal 12V power supply and allows for efficient alarm management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Alarm Interface Box | 16 Channel Input | RS485 Communication | Universal 12V Power by Dahua Technology
Brand: Dahua Technology
SKU: ARB1606
Alternatively Known As: Dahua Alarm Box, Alarm Interface Module, Security Alarm Interface Box
Technical Specifications
- Supports RS485 communication to NVR & XVR
- 16 channel Alarm Input
- 6 channel Alarm Output
- 2-bit DIP switch for alarm box access configuration
- Supports up to 4 alarm boxes connected simultaneously
- Power supply: Universal 12V, via separate adapter or DVR adapter
- Front panel indicators: Power (PWR) and Communication (ACT)
- Dimensions (H x L x W): 50mm x 150mm x 200mm
- Weight: 1.5 kg
Key Features
- Supports RS485 access to NVR & XVR
- 16 channel Alarm Input and 6 channel Alarm Output interface
- 2-bit DIP switch to configure different alarm box access
- Supports up to 4 alarm boxes connected to back-end storage device
- Universal 12V power supply support with options for separate adapter or DVR adapter power supply
- Front panel power indicator (PWR) and signal communication indicator (ACT)
- Configurable linked alarm on input and output interfaces
Professional Installation Requirements
- Installation by a qualified security system technician or electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Security systems integration with NVR and XVR devices
- Alarm input and output management for surveillance setups
- Commercial and residential security alarm systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient power usage with universal 12V power supply
- Enables centralized alarm management reducing redundant equipment
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Dahua Alarm Interface Box ARB1606 is available now for immediate purchase. Ideal for enhancing security alarm systems in commercial and residential applications.
