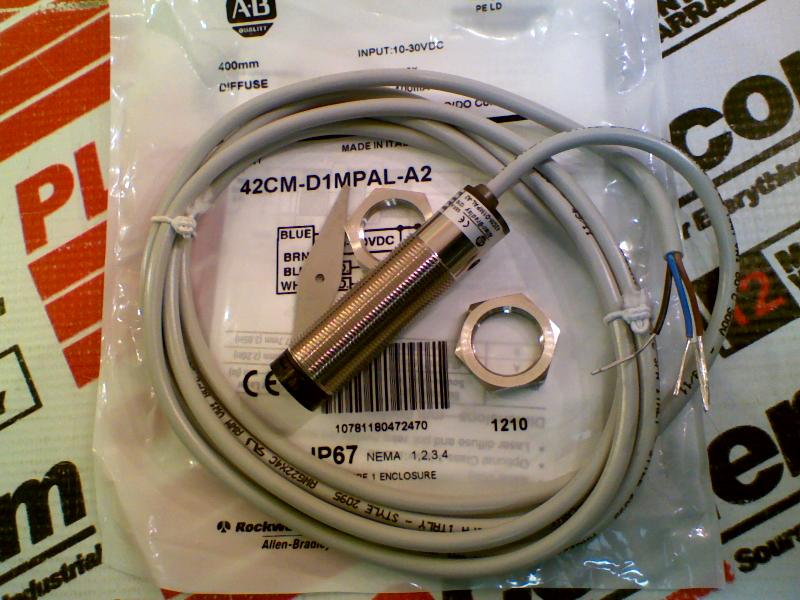

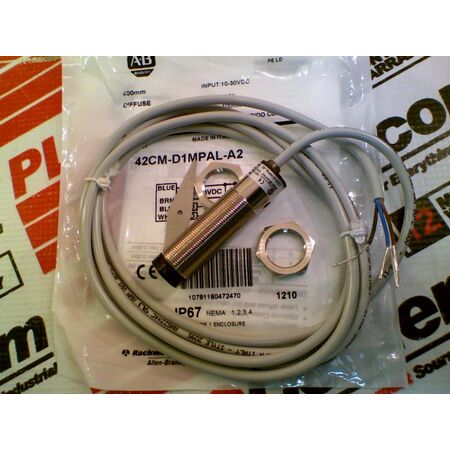

Allen-Bradley 18mm Metal Cylindrical Infrared Sensor 42CMD1MPALA2
The Allen-Bradley 42CMD1MPALA2 is an 18 mm metal cylindrical infrared sensor with standard diffuse sensing, manually adjustable sensitivity, and PNP output, ideal for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 18mm Metal Cylindrical Infrared Sensor 42CMD1MPALA2
Brand: Allen-Bradley
SKU: 42CMD1MPALA2
Alternatively Known As: 18mm Infrared Proximity Sensor, Allen-Bradley Metal Sensor, Cylindrical Diffuse Sensor
Technical Specifications
- Sensor Type: Standard diffuse infrared
- Housing: 18 mm metal cylindrical
- Output Type: PNP, DC complementary LO/DO
- Cable Length: 2 meters (6.5 feet)
- Response Time: 2.00 milliseconds
- Minimum Sensing Distance: 3 mm
- Operating Distance: 400 mm
- Sensing Distance: 300 mm
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.2 kg
Key Features
- 18 mm cylindrical metal housing
- Standard diffuse infrared sensing
- Manually adjustable sensitivity
- PNP output type
- DC complementary LO/DO output
- 2 meter (6.5 ft) cable for flexible installation
- Fast response time of 2.00 ms
- Minimum sensing distance of 3 mm
- Operating distance up to 400 mm
- Sensing distance of 300 mm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Packaging machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal housing reduces replacement frequency and waste
- Energy-efficient infrared sensing technology
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 18mm Metal Cylindrical Infrared Sensor 42CMD1MPALA2 is available now for immediate purchase. Ideal for industrial automation and manufacturing process control.
